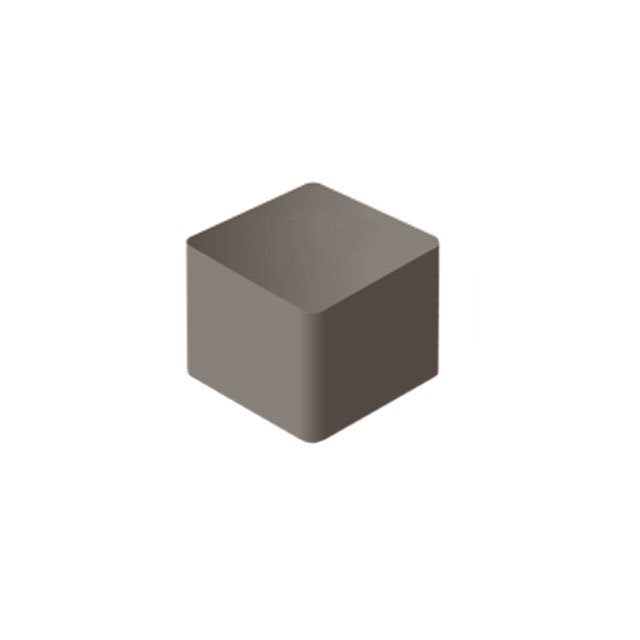

SRP5050FA Series
Manufacturer: Bourns Inc.
Beta
⌘K
POWER INDUCTOR (SMD), AEC-Q200, 5.6 ΜH, 7.2 A, SHIELDED, 8.6 A, SRP5050FA SERIES
| Part | DC Resistance (DCR) | Mounting Type | Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance | Package / Case | Inductance Frequency - Test | Shielding | Current Rating (Amps) | Frequency - Self Resonant | Ratings | Material - Core | Current - Saturation (Isat) | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 24.2 mOhm | Surface Mount | Drum Core Wirewound | 0.217 in | 0.209 in | 5.3 mm | 5.5 mm | 155 C | -55 C | 0.197 in | 5 mm | 5.6 µH | Nonstandard | 100 kHz | Shielded | 7.2 A | 20 MHz | AEC-Q200 | Metal | 8.6 A | 20 % |
