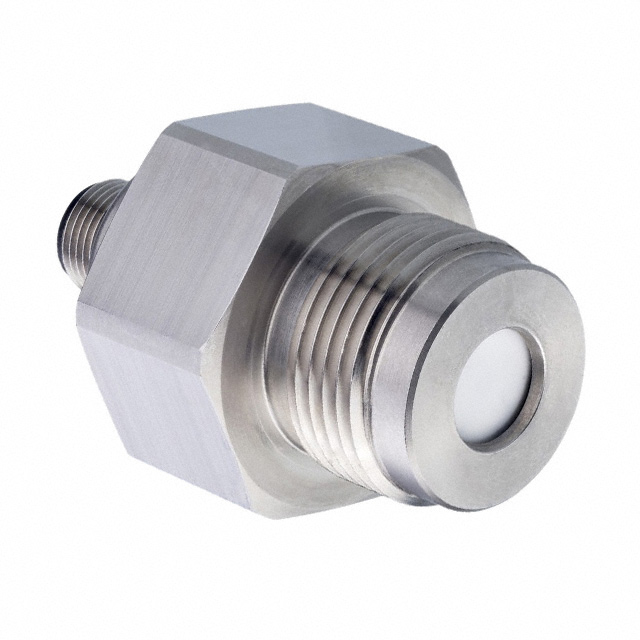

IPSSAT Series

Catalog

INDUSTRIAL PRESSURE SENSORS PRESSURE

Part	Port Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Output [Min]	Output [Max]	Termination Style	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Accuracy	Operating Pressure	Operating Pressure	Port Size	Port Size	Port Size	Maximum Pressure	Maximum Pressure	Features	Applications	Pressure Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]

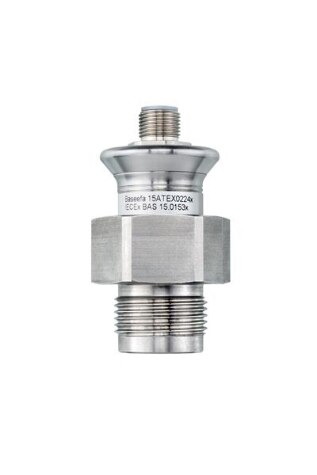

Sensata-Crydom IPSSAT-A1002-5C	Threaded	32 VDC	9 V	4 mA	20 mA	Connector 4-Pin	Cylinder Threaded	80 °C	-20 ░C	Analog Current	0.25 %	145.04 PSI	10 bar	BSP Male	19.05 mm	0.75 in	290.08 PSI	2000 kPa	Amplified Output Temperature Compensated	Industrial Automation
Sensata-Crydom IPSSAT-GM1P1-5C	Threaded	32 VDC	9 V	4 mA	20 mA	Connector 4-Pin	Cylinder Threaded	80 °C	-20 ░C	Analog Current	0.25 %	14.5 PSI	100 kPa	BSP Male	19.05 mm	0.75 in	72.52 PSI	500 kPa	Amplified Output Temperature Compensated	Industrial Automation	Differential/Vented Gauge
Sensata-Crydom IPSSAT-G2000-5C	Threaded	32 VDC	9 V	4 mA	20 mA	Connector 4-Pin	Cylinder Threaded	80 °C	-20 ░C	Analog Current	0.25 %	29.01 PSI	2 bar	BSP Male	19.05 mm	0.75 in			Amplified Output Temperature Compensated	Industrial Automation	Sealed Gauge	72.52 PSI	500 kPa
Sensata-Crydom IPSSAT-C0072-5C	Threaded	32 VDC	9 V	4 mA	20 mA	Connector 4-Pin	Cylinder Threaded	80 °C	-20 ░C	Analog Current	0.25 %			BSP Male	19.05 mm	0.75 in			Amplified Output Temperature Compensated	Industrial Automation	Compound	507.63 PSI	3500 kPa	-1 bar	1900 kPa	-14.5 PSI	275.57 PSI
Sensata-Crydom IPSSAT-GM1P5-5C	Threaded	32 VDC	9 V	4 mA	20 mA	Connector 4-Pin	Cylinder Threaded	80 °C	-20 ░C	Analog Current	0.25 %			BSP Male	19.05 mm	0.75 in	145 PSI	999.74 kPa	Amplified Output Temperature Compensated	Industrial Automation	Differential/Vented Gauge			-1 bar	500 kPa	-14.5 PSI	72.51 PSI
Sensata-Crydom IPSSAT-G1000-5S	Threaded	32 VDC	9 V	4 mA	20 mA	Connector 4-Pin	Cylinder Threaded	80 °C	-20 ░C	Analog Current	0.25 %	14.5 PSI	1 bar	BSP Male	19.05 mm	0.75 in			Amplified Output Temperature Compensated	Industrial Automation	Sealed Gauge	72.52 PSI	500 kPa
Sensata-Crydom IPSSAT-G1003-5C	Threaded	32 VDC	9 V	4 mA	20 mA	Connector 4-Pin	Cylinder Threaded	80 °C	-20 ░C	Analog Current	0.25 %	1450.38 PSI	10000 kPa	BSP Male	19.05 mm	0.75 in			Amplified Output Temperature Compensated	Industrial Automation	Sealed Gauge
