696471 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

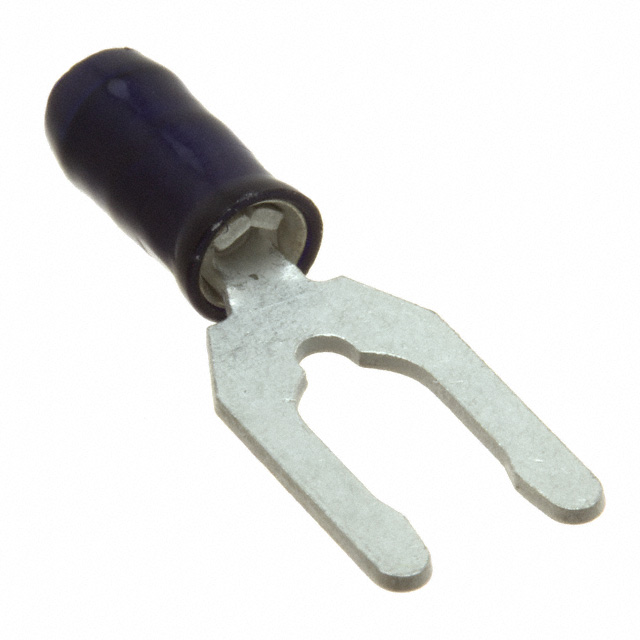

CONN SPADE TERM 16-22AWG #10 BLU
| Part | Material - Insulation | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Tongue Inside Opening [x] | Tongue Inside Opening [x] | Length - Termination [x] | Length - Termination [x] | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Length - Overall [x] | Length - Overall [x] | Terminal Type | Termination | Mounting Type | Stud/Tab Size | Width - Outer Edges [x] | Width - Outer Edges [x] | Color | Contact Material | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Nylon Polyamide (PA) | 0.08 " | 3.18 mm | 2.03 mm | 0.125 in | 4.83 mm | 0.19 in | 0.283 in | 7.19 mm | Tin | 16 AWG | 22 AWG | 1.01 " | 25.65 mm | Snap Spring | Crimp | Free Hanging (In-Line) | 10 Stud | 0.343 in | 8.71 mm | Blue | Phosphor Bronze | Insulated |
