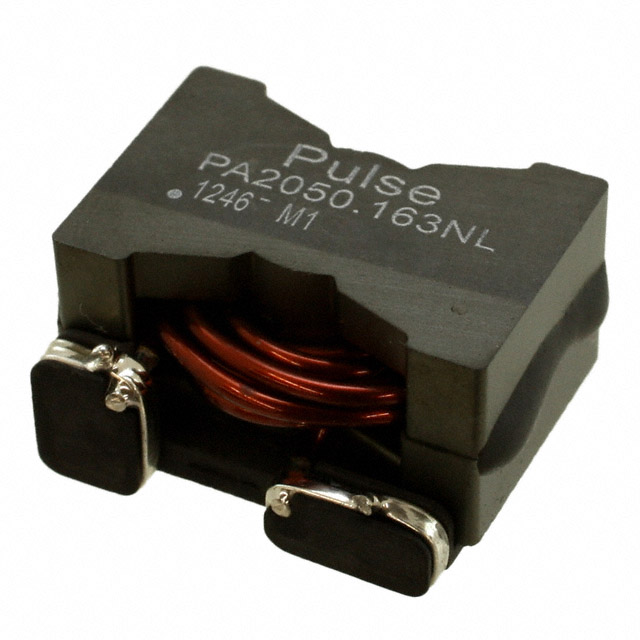

PA2050 Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD INDUCTOR WIREWOUND
| Part | Height - Seated (Max) | Height - Seated (Max) [Max] | Shielding | Tolerance | Inductance | Mounting Type | Package / Case | Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 12.2 mm | 0.48 in | Shielded | 10 % | 16 µH | Surface Mount | Nonstandard | Wirewound | 9.9 A | 130 °C | -40 C | 9.1 mOhm | 0.875 in | 0.75 in | 22.23 mm | 19.05 mm |
