9929 Series
Manufacturer: Belden Inc.
Beta
⌘K

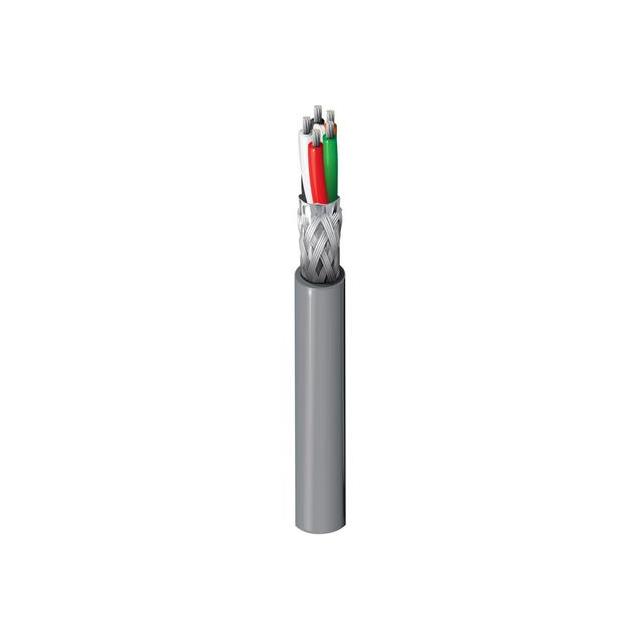

CABLE 5COND 24AWG CHRM SHD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Usage | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Conductor Insulation | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Length | Length | Number of Conductors | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Features | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Poly-Vinyl Chloride (PVC) | Computer | Chrome | 0.035 in | 0.889 mm | 80 °C | -30 ░C | 24 AWG | Foam Polyethylene (FPE) | Multi-Conductor | 7 | 32 AWG | Copper Tinned | 304.8 m | 1000 ft | 5 | UL Style 2919 | 6.25 mm | 0.246 in | Braid Foil | Drain Wire | ||
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Poly-Vinyl Chloride (PVC) | Computer | Chrome | 0.035 in | 0.889 mm | 80 °C | -30 ░C | 24 AWG | Foam Polyethylene (FPE) | Multi-Conductor | 7 | 32 AWG | Copper Tinned | 5 | UL Style 2919 | 6.25 mm | 0.246 in | Braid Foil | Drain Wire | 100 ft | 30.5 m |
