0407-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Tail Diameter [diameter]	Tail Diameter [diameter]	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Contact Material	Accepts Square Pin Size	Accepts Square Pin Size	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Min] [diameter]	Socket Depth	Socket Depth
Mill-Max Manufacturing Corp. 0407-0-15-15-16-14-04-0	-55 C	125 °C	0.051 in	1.3 mm	0.066 in	1.68 mm	Press-Fit	0.51 mm	0.02 in	Standard Tail	2.18 mm	0.086 in	Gold	0.25 Ám	10 Áin	0.7 in	17.78 mm	Beryllium Copper	0.025 in	0.64 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	0.22 in	5.59 mm

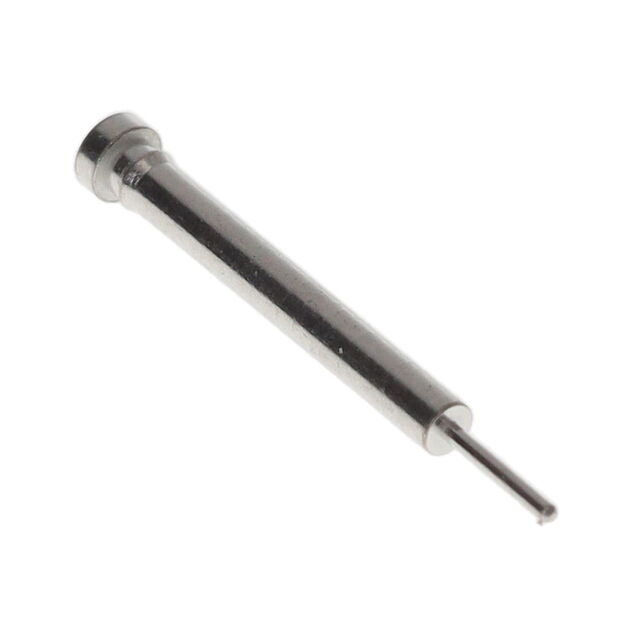

Mill-Max Manufacturing Corp. 0407-0-15-80-16-27-04-0	-55 C	125 °C	0.051 in	1.3 mm	0.066 in	1.68 mm	Press-Fit	0.51 mm	0.02 in	Standard Tail	2.18 mm	0.086 in	Gold	0.76 Ám	30 Áin	0.7 in	17.78 mm	Beryllium Copper	0.025 in	0.64 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	0.22 in	5.59 mm
Mill-Max Manufacturing Corp. 0407-0-15-80-16-14-04-0	-55 C	125 °C	0.051 in	1.3 mm	0.066 in	1.68 mm	Press-Fit	0.51 mm	0.02 in	Standard Tail	2.18 mm	0.086 in	Gold	0.25 Ám	10 Áin	0.7 in	17.78 mm	Beryllium Copper	0.025 in	0.64 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	0.22 in	5.59 mm
Mill-Max Manufacturing Corp. 0407-0-15-01-16-14-04-0	-55 C	125 °C	0.051 in	1.3 mm	0.066 in	1.68 mm	Press-Fit	0.51 mm	0.02 in	Standard Tail	2.18 mm	0.086 in	Gold	0.25 Ám	10 Áin	0.7 in	17.78 mm	Beryllium Copper	0.025 in	0.64 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	0.22 in	5.59 mm

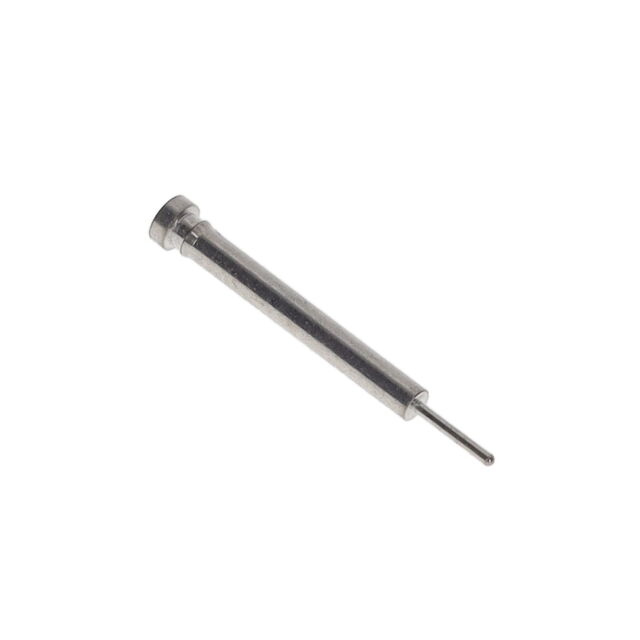

Mill-Max Manufacturing Corp. 0407-0-15-01-16-01-04-0	-55 C	125 °C	0.051 in	1.3 mm	0.066 in	1.68 mm	Press-Fit	0.51 mm	0.02 in	Standard Tail	2.18 mm	0.086 in	Tin-Lead	5.08 Ám	200 Áin	0.7 in	17.78 mm	Beryllium Copper	0.025 in	0.64 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	0.22 in	5.59 mm
Mill-Max Manufacturing Corp. 0407-0-15-80-16-80-04-0	-55 C	125 °C	0.051 in	1.3 mm	0.066 in	1.68 mm	Press-Fit	0.51 mm	0.02 in	Standard Tail	2.18 mm	0.086 in	Tin	5.08 Ám	200 Áin	0.7 in	17.78 mm	Beryllium Copper	0.025 in	0.64 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	0.22 in	5.59 mm
Mill-Max Manufacturing Corp. 0407-0-15-15-16-27-04-0	-55 C	125 °C	0.051 in	1.3 mm	0.066 in	1.68 mm	Press-Fit	0.51 mm	0.02 in	Standard Tail	2.18 mm	0.086 in	Gold	0.76 Ám	30 Áin	0.7 in	17.78 mm	Beryllium Copper	0.025 in	0.64 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	0.22 in	5.59 mm
