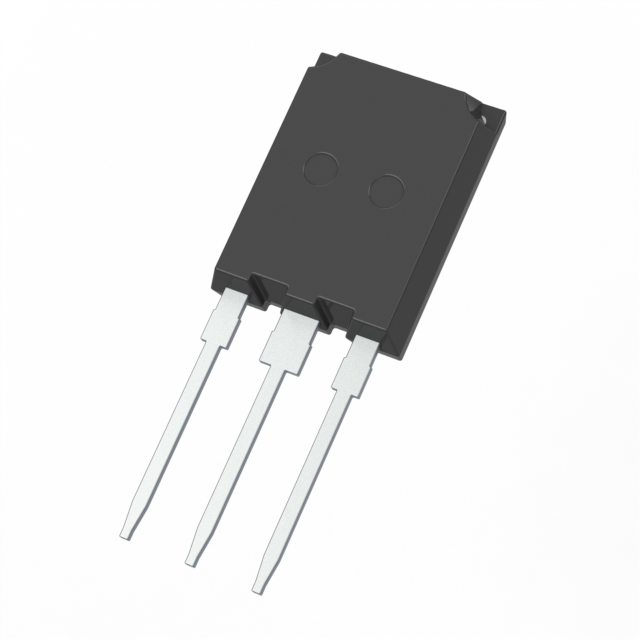

IKQ75N120 Series

Manufacturer: INFINEON

Catalog

1200 V HARD-SWITCHING AND 75 A TRENCHSTOP™ IGBT7 H7 DISCRETE IN TO-247PLUS 3PIN PACKAGE TECHNOLOGY.

Part	Reverse Recovery Time (trr)	Package / Case	Current - Collector Pulsed (Icm)	Power - Max [Max]	Gate Charge	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	IGBT Type	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Td (on/off) @ 25°C	Vce(on) (Max) @ Vge, Ic	Switching Energy	Test Condition [custom]	Test Condition [custom]	Test Condition [custom]	Td (on/off) @ 25°C	Test Condition
INFINEON IKQ75N120CH7XKSA1	149 ns	TO-247-3	300 A	549 W	518 nC	PG-TO247-3-U01	82 A	175 °C	-40 °C	Trench Field Stop	Through Hole	1200 V	56 ns 470 ns	2.15 V	1.76 mJ 5.28 mJ
INFINEON IKQ75N120CS6XKSA1	440 ns	TO-247-3	300 A	880 W	530 nC	PG-TO247-3-46	150 A	175 °C	-40 °C	Trench Field Stop	Through Hole	1200 V		2.15 V	2.95 mJ 5.15 mJ	4 Ohm	15 V 600 V	75 A	34 ns 300 ns
INFINEON IKQ75N120CT2XKSA1		TO-247-3	300 A	938 W		PG-TO247-3-46	150 A	175 °C	-40 °C	Trench Field Stop	Through Hole	1200 V		2.15 V	4.1 mJ 6.7 mJ				37 ns 328 ns	6 Ohm 15 V 75 A 600 V
