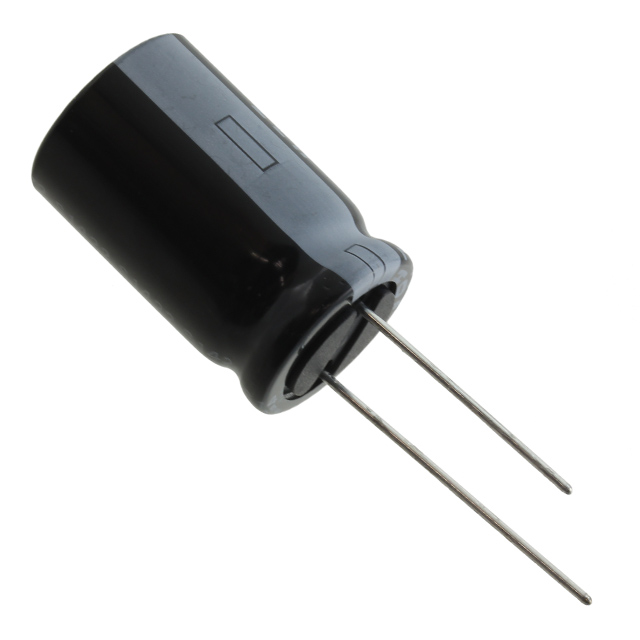

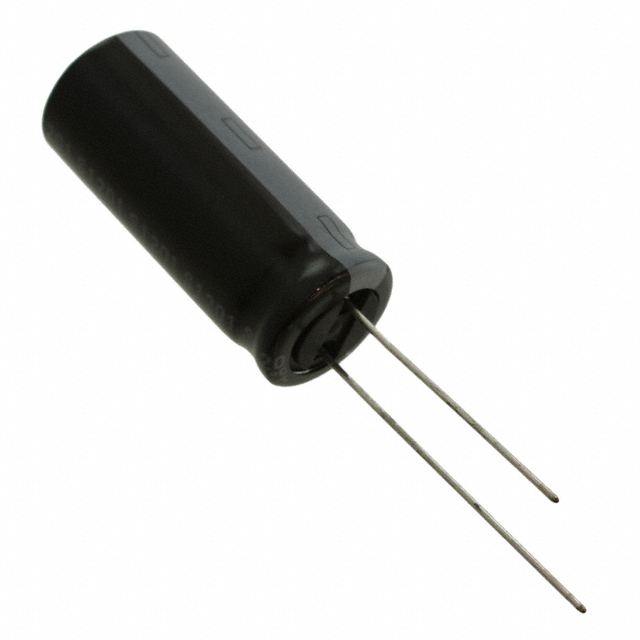

ZLH Series

Manufacturer: Rubycon

Catalog

ALUMINIUM ELECTROLYTIC CAPACITOR, ZLH SERIES, 4700 - F, - 20%, 16 V, 16 MM, RADIAL LEADED ROHS COMPLIANT: YES

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Tolerance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Impedance	Voltage - Rated	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Ripple Current @ High Frequency	Package / Case	Polarization	Applications	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]
Rubycon 16ZLH4700MEFC16X25	1.063 in	27 mm	4700 µF	20 %	Through Hole	-40 C	105 ░C	2.541 A	13 mOhms	16 V	0.295 in	7.5 mm	0.63 in	16 mm	10000 Hrs	3.63 A	Can Radial	Polar	General Purpose
Rubycon 80ZLH220MEFC10X23	0.984 in	25 mm	220 µF	20 %	Through Hole	-40 C	105 ░C	585 mA	110 mOhms	80 V	0.197 "	5 mm	0.394 in	10 mm	10000 Hrs		Can Radial	Polar	General Purpose
Rubycon 6.3ZLH6800MEFC12.5X35			6800 µF	20 %	Through Hole	-40 C	105 ░C	2.499 A	12 mOhms	6.3 VDC	0.197 "	5 mm	0.492 in	12.5 mm	10000 Hrs		Can Radial	Polar	General Purpose	37 mm	1.457 in
Rubycon 63ZLH680MEFC12.5X35			680 µF	20 %	Through Hole	-40 C	105 ░C	1.441 A	33 mOhms	63 V	0.197 "	5 mm	0.492 in	12.5 mm	10000 Hrs		Can Radial	Polar	General Purpose	37 mm	1.457 in
Rubycon 6.3ZLH2700MEFC10X23	0.984 in	25 mm	2700 µF	20 %	Through Hole	-40 C	105 ░C	1.575 A	18 mOhms	6.3 VDC	0.197 "	5 mm	0.394 in	10 mm	10000 Hrs		Can Radial	Polar	General Purpose
Rubycon 100ZLH8R2MEFC5X11		0.492 in	8.2 µF	20 %	Through Hole	-40 C	105 ░C	68.46 mA	1.4 Ohms	100 V	0.079 in	2 mm	0.197 in	5 mm	6000 Hrs	163 mA	Can Radial	Polar	General Purpose			12.5 mm
Rubycon 63ZLH820MEFC16X25	1.063 in	27 mm	820 µF	20 %	Through Hole	-40 C	105 ░C	1.638 A 120 Hz	32 mOhms	63 V	0.295 in	7.5 mm	0.63 in	16 mm	10000 Hrs		Can Radial	Polar	General Purpose
Rubycon 63ZLH1800MEFC16X40			1800 µF	20 %	Through Hole	-40 C	105 ░C	2.202 A	19 mOhms	63 V	0.295 in	7.5 mm	0.63 in	16 mm	10000 Hrs		Can Radial	Polar	General Purpose		1.654 in		42 mm
Rubycon 63ZLH150MEFC8X20			150 µF	20 %	Through Hole	-40 C	105 ░C	430.5 mA	120 mOhms	63 V	0.138 in	3.5 mm	0.315 in	8 mm	8000 Hrs		Can Radial	Polar	General Purpose					0.866 in	22 mm
Rubycon 35ZLH560MEFC10X20			560 µF	20 %	Through Hole	-40 C	105 ░C	1.078 A	20 mOhms	35 V	0.197 "	5 mm	0.394 in	10 mm	10000 Hrs		Can Radial	Polar	General Purpose					0.866 in	22 mm
