EM9128 Series

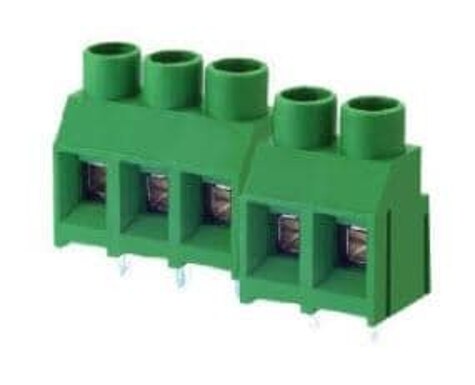

Fixed Terminal Blocks EUROMAG EM9128 SERIES, 05 POLE
Manufacturer: Eaton - Electronics Division
Catalog
Fixed Terminal Blocks EUROMAG EM9128 SERIES, 05 POLE
Beta
⌘K
Fixed Terminal Blocks EUROMAG EM9128 SERIES, 05 POLE
Fixed Terminal Blocks EUROMAG EM9128 SERIES, 05 POLE
Fixed Terminal Blocks EUROMAG EM9128 SERIES, 05 POLE
| Part | Screw Material - Plating | Clamp Material - Plating | Contact Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Screw Thread | Torque - Screw | Torque - Screw | Mounting Type | Wire Termination | Wire Gauge [Max] | Wire Gauge [Min] | Pitch | Pitch | Features | Voltage | Current | Color | Number of Levels | Positions Per Level | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | Steel - Zinc Plated | Brass - Nickel Plated | Brass - Tin Plated | -40 C | 105 ░C | Thermoplastic | M3 | 5.5 Lb-In | 0.62 Nm | Through Hole | Screw - Rising Cage Clamp | 24 AWG | 10 AWG | 0.3 in | 7.62 mm | Interlocking (Side) | 300 VDC | 30 A | Green | 1 | 5 | Horizontal with Board |
