GRB285A Series
Manufacturer: CW Industries
Beta
⌘K

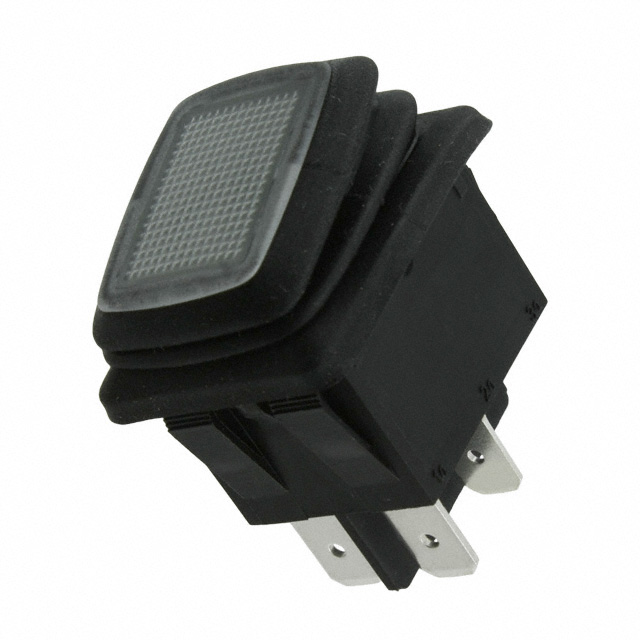

SWITCH ROCKER DPST 20A 125V
| Part | Mechanical Life | Mounting Type | Approval Agency | Current Rating (Amps) | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Circuit | Voltage Rating - AC | Color - Actuator/Cap | Ingress Protection | Illumination Type, Color | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Actuator Type | Actuator Marking | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 100000 Cycles | Panel Mount Snap-In | cULus ENEC | 20 A | 22.2 mm | 30.2 mm | DPST | 125 V | Clear | IP56 - Dust Protected Water Resistant | Green/Red LED | 85 °C | -25 °C | On-Off | Flat - Illuminated | No Marking | Quick Connect - 0.250" (6.3mm) |
