EN3C6F Series

Catalog

CIRCULAR CONNECTOR, EN3 SERIES, CABLE MOUNT RECEPTACLE, 6 CONTACTS, SOLDER SOCKET, BAYONET

Part	Contact Material	Backshell Material, Plating	Applications	Insert Material	Mounting Type	Material Flammability Rating	Number of Positions	Fastening Type	Voltage Rating	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Color	Shielding	Orientation	Connector Type	Current Rating (Amps)	Ingress Protection	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Contact Finish - Mating	Termination

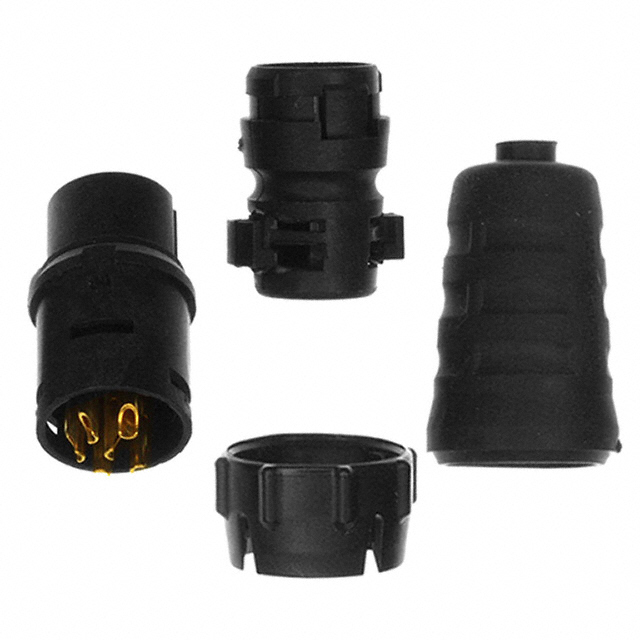

SWITCHCRAFT/CONXALL EN3C6FX	Copper Alloy	Thermoplastic	General Purpose Instrumentation Marine Medical	Elastomer	Free Hanging (In-Line)	UL94 V-0	6	Bayonet Lock	250 VAC	Plastic	-40 C	65 °C	Backshell Cable Clamp Coupling Nut	Black	Unshielded	Keyed	Plug Female Sockets	7.5 A	IP66 IP68	4.06 mm	0.265 in	0.16 "	6.73 mm	Gold

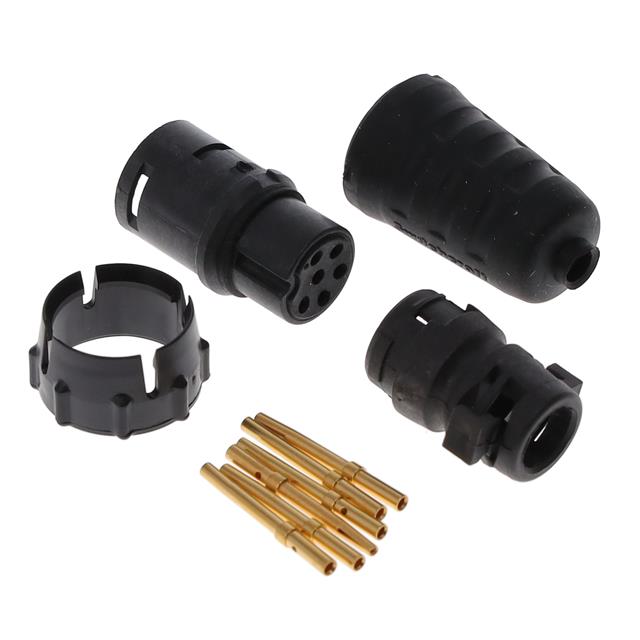

SWITCHCRAFT/CONXALL EN3C6FCX	Copper Alloy	Thermoplastic	General Purpose Instrumentation Marine Medical	Elastomer	Free Hanging (In-Line)	UL94 V-0	6	Bayonet Lock	250 VAC	Plastic	-40 C	65 °C	Backshell Cable Clamp Coupling Nut	Black	Unshielded	Keyed	Plug Female Sockets	7.5 A	IP66 IP68	4.06 mm	0.265 in	0.16 "	6.73 mm	Gold	Crimp
SWITCHCRAFT/CONXALL EN3C6FKX	Copper Alloy	Thermoplastic	General Purpose Instrumentation Marine Medical	Elastomer	Free Hanging (In-Line)	UL94 V-0	6	Bayonet Lock	250 VAC	Plastic	-40 C	65 °C	Backshell Cable Clamp Coupling Nut	Black	Unshielded	Keyed	Plug Female Sockets	7.5 A	IP66 IP68	4.06 mm	0.265 in	0.16 "	6.73 mm	Gold
