Schaffner FN2501 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Connector Style	Current Rating - Filter	Features	Connector Type	Filter Type	Mounting Type	Material Flammability Rating	Switch Features	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Fuse Holder, Drawer	Termination	Termination	Termination	Termination Style	Voltage - Rated DC	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Applications	Frequency - Operating	Configuration	Current	Voltage - Rated AC

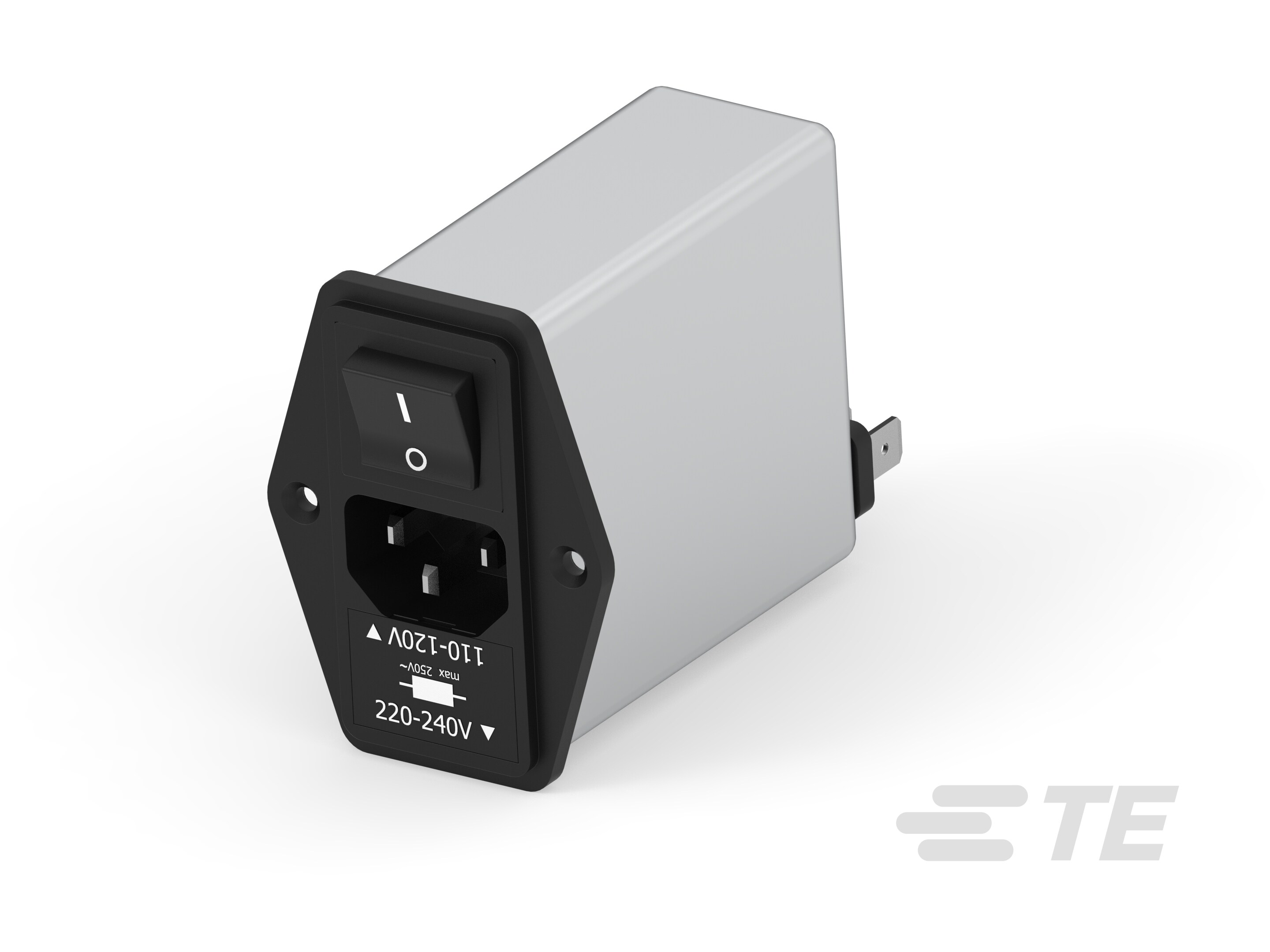

TE Connectivity AMP Connectors FN1394-1-05-11	IEC 320-C14	1 A	Front or Rear Side Mount Voltage Selector	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	Flange Panel Mount	UL94 V-2	Switch On-Off	CSA ENEC UL	29 mm	60 mm	IP40	Twin Fused	6.3 mm	Quick Connect	0.25 "
TE Connectivity AMP Connectors FN1394-10-05-11	IEC 320-C14	10 A	Front or Rear Side Mount Voltage Selector	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	Flange Panel Mount	UL94 V-2	Switch On-Off	CSA ENEC UL	29 mm	60 mm	IP40	Twin Fused	6.3 mm	Quick Connect	0.25 "
TE Connectivity AMP Connectors FN1394-6-05-11	IEC 320-C14	6 A	Front or Rear Side Mount Voltage Selector	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	Flange Panel Mount	UL94 V-2	Switch On-Off	CSA ENEC UL	29 mm	60 mm	IP40	Twin Fused	6.3 mm	Quick Connect	0.25 "
TE Connectivity AMP Connectors FN1394-1-05-11	IEC 320-C14	1 A	Front or Rear Side Mount Voltage Selector	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	Flange Panel Mount	UL94 V-2	Switch On-Off	CSA ENEC UL	29 mm	60 mm	IP40	Twin Fused	6.3 mm	Quick Connect	0.25 "
TE Connectivity AMP Connectors FN1394-10-05-11	IEC 320-C14	10 A	Front or Rear Side Mount Voltage Selector	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	Flange Panel Mount	UL94 V-2	Switch On-Off	CSA ENEC UL	29 mm	60 mm	IP40	Twin Fused	6.3 mm	Quick Connect	0.25 "
TE Connectivity AMP Connectors FN1394-10-05-11	IEC 320-C14		Front or Rear Side Mount Voltage Selector	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	Flange Panel Mount	UL94 V-2	Switch On-Off	CE CSA ENEC UKCA UL	29 mm	60 mm	IP40	Twin Fused	6.3 mm	Quick Connect	0.25 "
TE Connectivity AMP Connectors FN1394-2.5-05-11	IEC 320-C14	2.5 A	Front or Rear Side Mount Voltage Selector	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	Flange Panel Mount	UL94 V-2	Switch On-Off	CSA ENEC UL	29 mm	60 mm	IP40	Twin Fused	6.3 mm	Quick Connect	0.25 "
TE Connectivity AMP Connectors FN2501-10-05-C13					Three Phase (Wye)	Chassis Mount			CE CQC CSA ENEC UKCA UR								Quick Connect	400 V	-40 C	100 °C	8.3 mH	General Purpose	60 Hz	Single Stage	10 A	277 V
