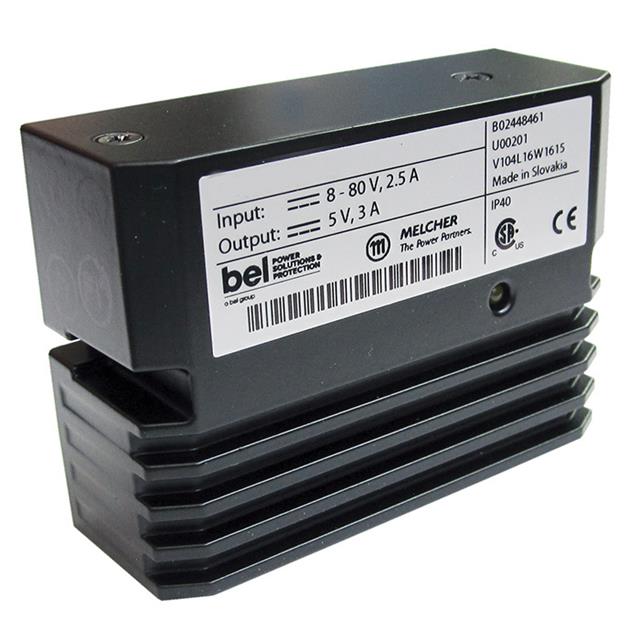

PSR53 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
DC DC CONVERTER 5V
| Part | Package / Case | Number of Outputs | Applications | Features | Current - Output (Max) [Max] | Mounting Type | Voltage - Input (Max) [Max] | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Type | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 6-DIP Module | 1 | ITE (Commercial) Railway | OCP SCP UVLO | 3 A | Through Hole | 80 V | 5 V | 71 °C | -40 C | 79 % | 8 V | 1.98 " | 0.99 " | 50.2 mm | 70.2 mm | 25.2 mm | 2.76 " | Non-Isolated PoL Module Conformal Coated | |
Bel Fuse Inc. | 6-DIP Module | 1 | ITE (Commercial) Railway | OCP Remote On/Off SCP UVLO | 3 A | Through Hole | 80 V | 5 V | 71 °C | -40 C | 79 % | 8 V | 1.98 " | 0.99 " | 50.2 mm | 70.2 mm | 25.2 mm | 2.76 " | Non-Isolated PoL Module Conformal Coated | Active Low Enable |
 Bel Fuse Inc. | Module | 1 | ITE (Commercial) Railway | Remote On/Off SCP UVLO | 3 A | Through Hole | 80 V | 5 V | 71 °C | -40 C | 87 % | 8 V | 1.98 " | 0.99 " | 50.2 mm | 70.2 mm | 25.2 mm | 2.76 " | Non-Isolated PoL Module Conformal Coated | |
Bel Fuse Inc. | 6-DIP Module | 1 | ITE (Commercial) Railway | OCP Remote On/Off SCP UVLO | 3 A | Through Hole | 80 V | 5 V | 71 °C | -25 °C | 79 % | 8 V | 1.98 " | 0.99 " | 50.2 mm | 70.2 mm | 25.2 mm | 2.76 " | Non-Isolated PoL Module Conformal Coated | Active Low Enable |
Bel Fuse Inc. | 6-DIP Module | 1 | ITE (Commercial) Railway | OCP SCP UVLO | 3 A | Through Hole | 80 V | 5 V | 71 °C | -25 °C | 79 % | 8 V | 1.98 " | 0.99 " | 50.2 mm | 70.2 mm | 25.2 mm | 2.76 " | Non-Isolated PoL Module Conformal Coated |
