35LJ Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

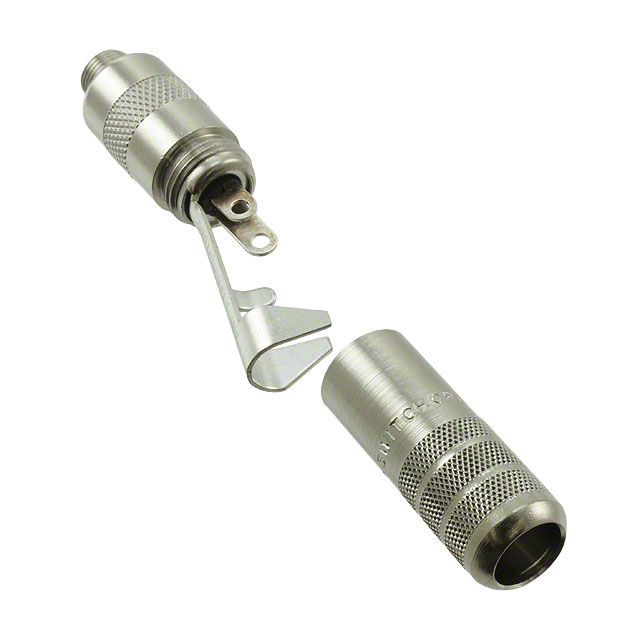

3.5MM STEREO CABLE MOUNT EXTENSION JACK - NICKEL BODY / SILVER CONTACTS / .290" OPENING
| Part | Cable Opening | Cable Opening | Body Material | Contact Material | Body Color | Housing Material | Contact Material - Plating | Mounting Type | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Actual Diameter [diameter] | Actual Diameter [diameter] | Gender | Shielding | Signal Lines | Connector Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 7.37 mm | 0.29 in | Copper Alloy | Beryllium Copper | Silver | Copper Alloy | Nickel | Free Hanging (In-Line) | 3 | 3 | 0.125 in | 3.5 mm | 0.141 in | 3.57 mm | 0.141 in | Female | Unshielded | Stereo (3 Conductor TRS) | Phone Jack | Solder Eyelet(s) |
