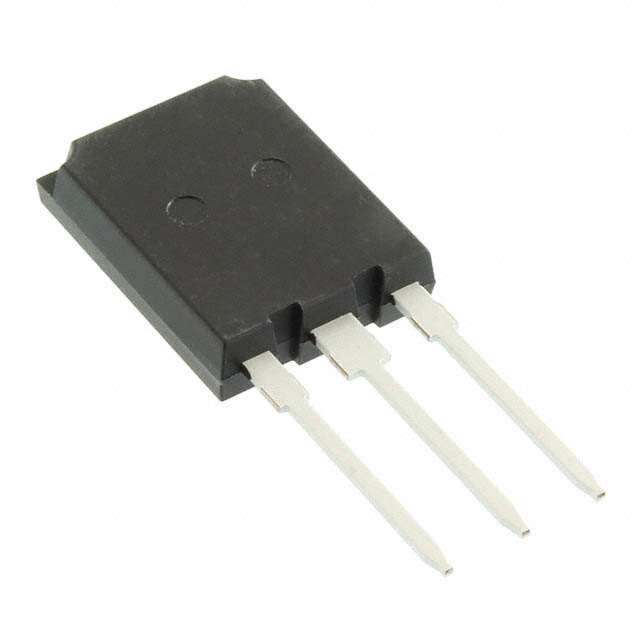

Trenchstop IGBT2 Series
Manufacturer: INFINEON
Beta
⌘K
1200 V, 40 A TRENCHSTOP™ IGBT 2 WITH ANTI-PARALLEL DIODE IN TO247 HOUSING. WITH A SWITCHING FREQUENCY RANGE FROM 2 KHZ TO 20 KHZ IT PERFECTLY MATCHES APPLICATIONS LIKE BATTERY CHARGER, ENERGY STORAGE, UNINTERRUPTIBLE POWER SUPPLY OR WELDING.
| Part | Mounting Type | Switching Energy | Supplier Device Package | Voltage - Collector Emitter Breakdown (Max) [Max] | Td (on/off) @ 25°C | Package / Case | IGBT Type | Vce(on) (Max) @ Vge, Ic | Gate Charge | Operating Temperature [Max] | Operating Temperature [Min] | Current - Collector (Ic) (Max) [Max] | Power - Max [Max] | Test Condition |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Through Hole | 2.9 mJ 3.1 mJ | PG-TO247-3-46 | 1200 V | 32 ns 328 ns | TO-247-3 | Trench Field Stop | 2.15 V | 190 nC | 175 °C | -40 °C | 80 A | 500 W | 12 Ohm 15 V 40 A 600 V |
