NPTC342 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

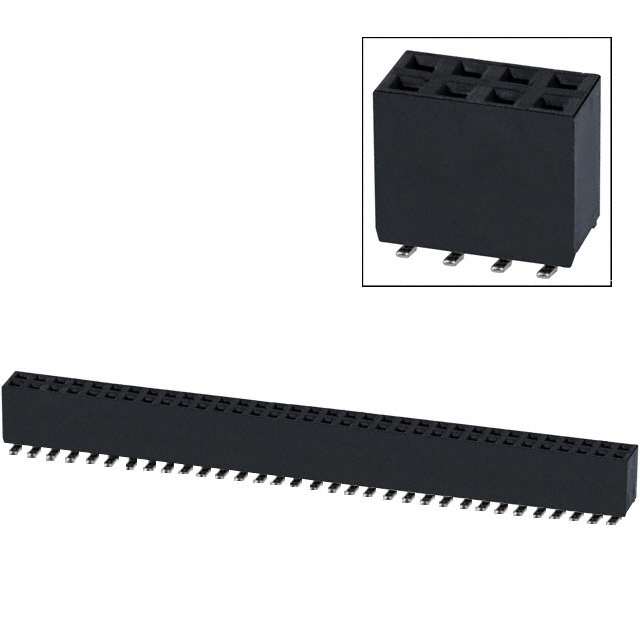

CONN HDR 68POS 0.1 TIN SMD
| Part | Insulation Material | Contact Shape | Contact Material | Connector Type | Fastening Type | Contact Type | Number of Positions | Insulation Height [z] | Insulation Height | Mounting Type | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Number of Rows [custom] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions Loaded | Insulation Color | Voltage Rating | Contact Finish - Post | Termination | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Nylon 6T Polyamide (PA6T) | Square | Phosphor Bronze | Header | Push-Pull | Female Socket | 68 positions | 0.299 " | 7.6 mm | Surface Mount | UL94 V-0 | 125 °C | -40 C | 3 A | 2 | 0.1 in | 2.54 mm | All | Black | 250 V | Tin | Solder | 0.1 " | 2.54 mm |
