PRPC005 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 5POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish - Mating	Number of Positions	Number of Positions Loaded	Connector Type	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Insulation Material	Termination	Contact Type	Contact Finish Thickness - Mating	Style	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Mounting Type	Fastening Type	Shrouding	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Material	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length
Sullins Connector Solutions PRPC005SAAN-RC	Flash	Gold	5	All	Header Breakaway	Black	0.23 in	5.84 mm	Gold	Polybutylene Terephthalate (PBT)	Solder	Male Pin	Flash	Board to Board Cable	0.098 "	2.5 mm	-40 C	105 ░C	UL94 V-0	3.05 mm	0.12 in	Through Hole	Push-Pull	Unshrouded	0.1 "	2.54 mm	Square	Brass	0.448 in	11.39 mm	3 A	1
Sullins Connector Solutions PRPC005DFAN-RC	Flash	Gold	10	All	Header Breakaway	Black	0.318 in	8.08 mm	Gold	Polybutylene Terephthalate (PBT)	Solder	Male Pin	Flash	Board to Board Cable	0.098 "	2.5 mm	-40 C	105 ░C	UL94 V-0	3.05 mm	0.12 in	Through Hole	Push-Pull	Unshrouded	0.1 "	2.54 mm	Square	Brass			3 A		13.63 mm	0.537 in	2	0.1 in	2.54 mm

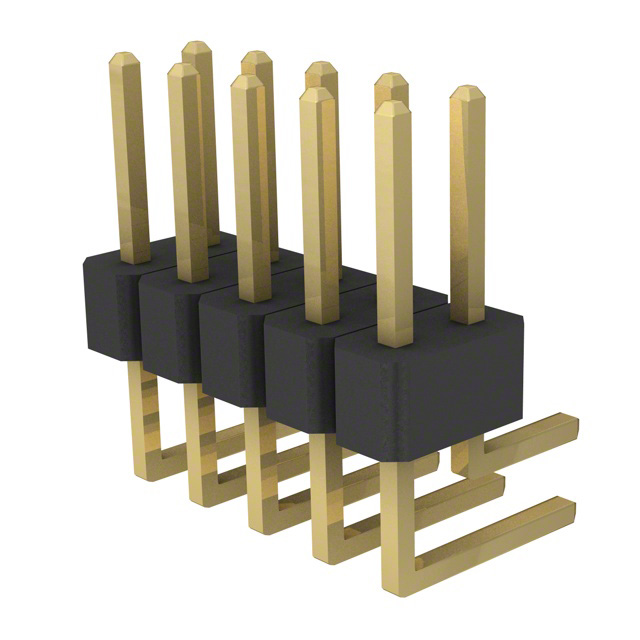

Sullins Connector Solutions PRPC005DBAN-M71RC	Flash	Gold	10	All	Header Breakaway	Black	0.23 in	5.84 mm	Gold	Polybutylene Terephthalate (PBT)	Solder	Male Pin	Flash	Board to Board Cable	0.197 "	5 mm	-40 C	105 ░C	UL94 V-0	3.05 mm	0.12 in	Right Angle Through Hole	Push-Pull	Unshrouded	0.1 "	2.54 mm	Square	Brass			3 A				2	0.1 in	2.54 mm

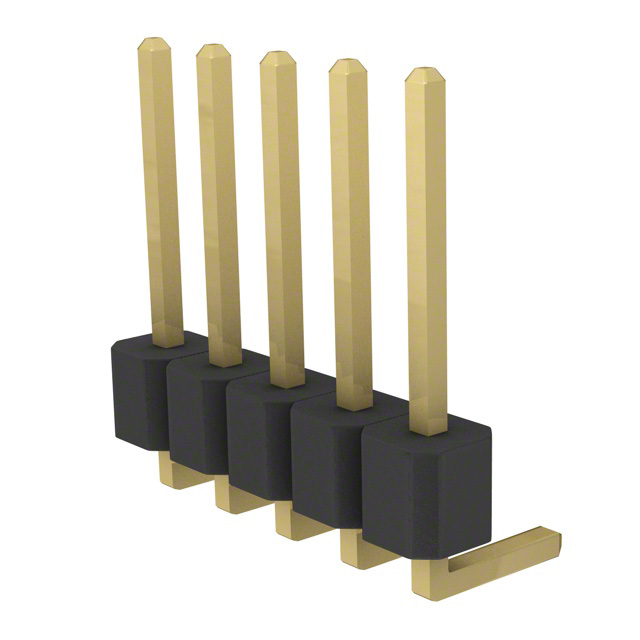

Sullins Connector Solutions PRPC005SGAN-M71RC	Flash	Gold	5	All	Header Breakaway	Black	0.318 in	8.08 mm	Gold	Polybutylene Terephthalate (PBT)	Solder	Male Pin	Flash	Board to Board Cable	0.098 "	2.5 mm	-40 C	105 ░C	UL94 V-0	3.05 mm	0.12 in	Right Angle Through Hole	Push-Pull	Unshrouded	0.1 "	2.54 mm	Square	Brass			3 A	1

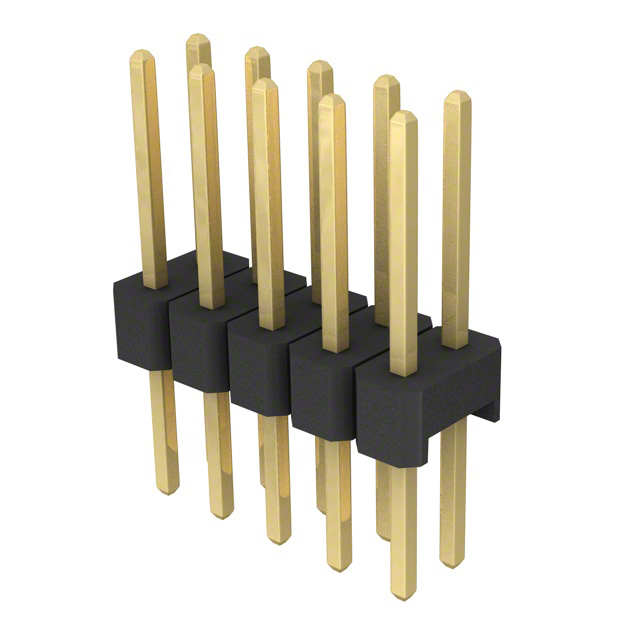

Sullins Connector Solutions PRPC005DFBN-RC	Flash	Gold	10	All	Header Breakaway	Black	0.318 in	8.08 mm	Gold	Polybutylene Terephthalate (PBT)	Solder	Male Pin	Flash	Board to Board Cable	0.098 "	2.5 mm	-40 C	105 ░C	UL94 V-0	5.58 mm	0.22 in	Through Hole	Push-Pull	Unshrouded	0.1 "	2.54 mm	Square	Brass		0.637 in	3 A				2	0.1 in	2.54 mm	16.17 mm
Sullins Connector Solutions PRPC005DAAN-RC	Flash	Gold	10	All	Header Breakaway	Black	0.23 in	5.84 mm	Gold	Polybutylene Terephthalate (PBT)	Solder	Male Pin	Flash	Board to Board Cable	0.098 "	2.5 mm	-40 C	105 ░C	UL94 V-0	3.05 mm	0.12 in	Through Hole	Push-Pull	Unshrouded	0.1 "	2.54 mm	Square	Brass	0.448 in	11.39 mm	3 A				2	0.1 in	2.54 mm

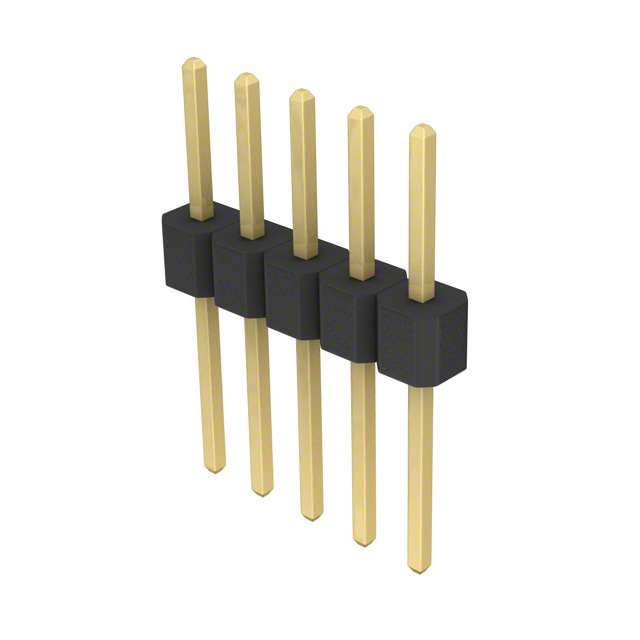

Sullins Connector Solutions PRPC005SACN-RC	Flash	Gold	5	All	Header Breakaway	Black	0.23 in	5.84 mm	Gold	Polybutylene Terephthalate (PBT)	Solder	Male Pin	Flash	Board to Board Cable	0.098 "	2.5 mm	-40 C	105 ░C	UL94 V-0	8.13 mm	0.32 in	Through Hole	Push-Pull	Unshrouded	0.1 "	2.54 mm	Square	Brass			3 A	1	16.47 mm	0.648 in

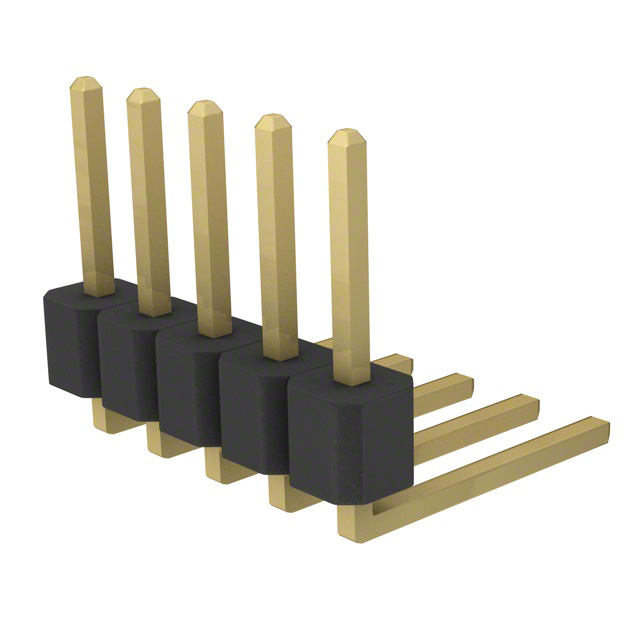

Sullins Connector Solutions PRPC005SBCN-M71RC	Flash	Gold	5	All	Header Breakaway	Black	0.23 in	5.84 mm	Gold	Polybutylene Terephthalate (PBT)	Solder	Male Pin	Flash	Board to Board Cable	0.098 "	2.5 mm	-40 C	105 ░C	UL94 V-0	8.13 mm	0.32 in	Right Angle Through Hole	Push-Pull	Unshrouded	0.1 "	2.54 mm	Square	Brass			3 A	1

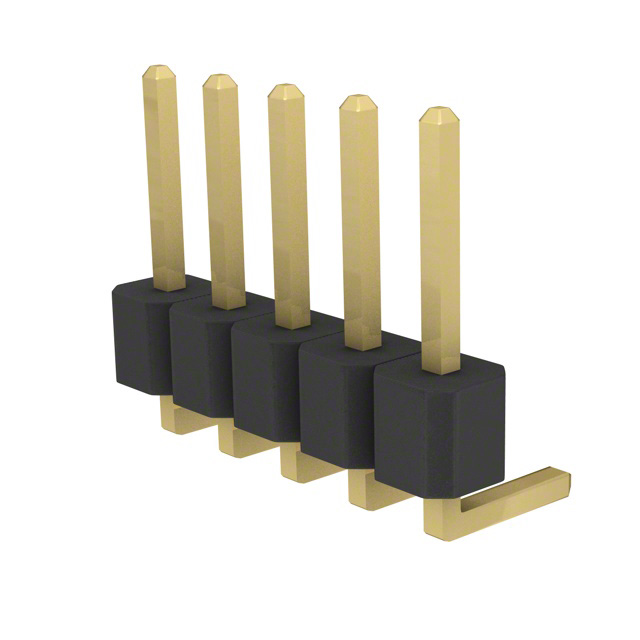

Sullins Connector Solutions PRPC005SBAN-M71RC	Flash	Gold	5	All	Header Breakaway	Black	0.23 in	5.84 mm	Gold	Polybutylene Terephthalate (PBT)	Solder	Male Pin	Flash	Board to Board Cable	0.098 "	2.5 mm	-40 C	105 ░C	UL94 V-0	3.05 mm	0.12 in	Right Angle Through Hole	Push-Pull	Unshrouded	0.1 "	2.54 mm	Square	Brass			3 A	1
Sullins Connector Solutions PRPC005DABN-RC	Flash	Gold	10	All	Header Breakaway	Black	0.23 in	5.84 mm	Gold	Polybutylene Terephthalate (PBT)	Solder	Male Pin	Flash	Board to Board Cable	0.098 "	2.5 mm	-40 C	105 ░C	UL94 V-0	5.84 mm	0.23 "	Through Hole	Push-Pull	Unshrouded	0.1 "	2.54 mm	Square	Brass	0.558 in	14.18 mm	3 A				2	0.1 in	2.54 mm
