OA80AP Series

Catalog

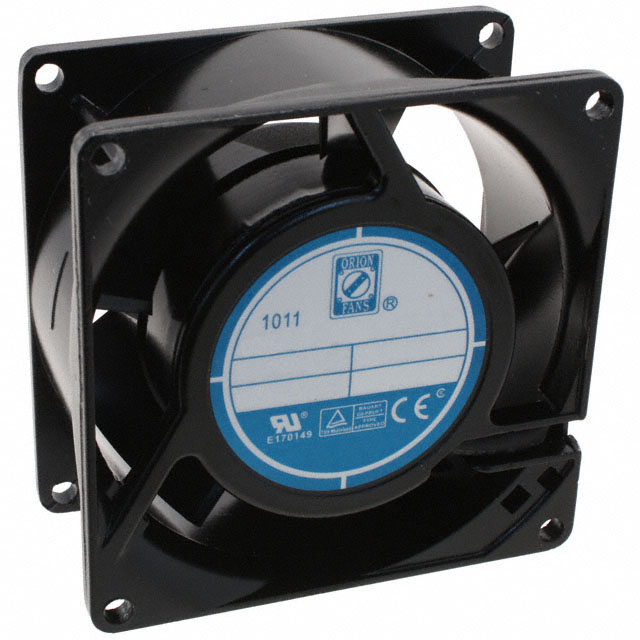

AC FAN, 33 CFM, 3200 RPM, 13 W, 115 VAC, 35 DB, 80 MM X 38 MM, TERMINALS

Part	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Material - Frame	Noise	Weight	Weight	Power (Watts)	Width [y]	Bearing Type	RPM	Static Pressure	Static Pressure	Air Flow	Air Flow	Fan Type	Voltage - Rated	Ingress Protection	Size / Dimension [z]	Size / Dimension [x]	Termination	Approval Agency	Current Rating (Amps)	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Rated [Max]	Voltage - Rated [Min]
ORION FANS OA80AP-11-1TB1855	50000 Hrs	120 VAC	100 VAC	Metal	Aluminum	35 dB	430.91 g	0.95 lb	13 W	38 mm	Ball	3200 RPM	54.8 Pa	0.22 in H2O	0.924 mł/min	33 CFM	Tubeaxial	115 VAC	IP55 - Dust Protected Water Resistant	80 mm	80 mm	2	cURus TUV
ORION FANS OA80AP-22-3WB	40 °C 60000 Hrs	260 VAC	160 VAC	Polybutylene Terephthalate (PBT)	Aluminum	28 dB			12 W	38 mm	Ball	1950 RPM	17.4 Pa	0.07 in H2O	0.476 m³/min	17 CFM	Tubeaxial	230 VAC		80 mm	80 mm		cURus TUV	40 mA	2 Wire Leads	80 °C	-20 ░C
ORION FANS OA80AP-11-3TB	40 °C 60000 Hrs	126 VAC	103 VAC	Polybutylene Terephthalate (PBT)	Aluminum	28 dB			9 W	38 mm	Ball	1950 RPM	17.4 Pa	0.07 in H2O	0.476 m³/min	17 CFM	Tubeaxial	115 VAC		80 mm	80 mm	2	cURus TUV	100 mA		80 °C	-20 ░C
ORION FANS OA80AP-11-1WB	40 °C 60000 Hrs	126 VAC	103 VAC	Polybutylene Terephthalate (PBT)	Aluminum	36 dB			9 W	38 mm	Ball	3000 RPM	54.8 Pa	0.22 in H2O	0.84 mł/min	30 CFM	Tubeaxial	115 VAC		80 mm	80 mm		cURus TUV	120 mA	2 Wire Leads	80 °C	-20 ░C
ORION FANS OA80AP-11-2WB	40 °C 60000 Hrs	126 VAC	103 VAC	Polybutylene Terephthalate (PBT)	Aluminum	32 dB			9 W	38 mm	Ball	2400 RPM	39.8 Pa	0.16 in H2O	0.7 mł/min	25 CFM	Tubeaxial	115 VAC		80 mm	80 mm		cURus TUV	120 mA	2 Wire Leads	80 °C	-20 ░C
ORION FANS OA80AP-22-1WB1855	50000 Hrs			Metal	Aluminum	35 dB	430.91 g	0.95 lb	13 W	38 mm	Ball	3200 RPM	54.8 Pa	0.22 in H2O	0.924 mł/min	33 CFM	Tubeaxial	230 VAC	IP55 - Dust Protected Water Resistant	80 mm	80 mm		cURus TUV		2 Wire Leads
ORION FANS OA80AP-22-2TB	40 °C 60000 Hrs	260 VAC	160 VAC	Polybutylene Terephthalate (PBT)	Aluminum	32 dB			12 W	38 mm	Ball	2400 RPM	39.8 Pa	0.16 in H2O	0.7 mł/min	25 CFM	Tubeaxial	230 VAC		80 mm	80 mm	2	cURus TUV	50 mA		80 °C	-20 ░C
ORION FANS OA80AP-11/22-1WB	40 °C 60000 Hrs	260 VAC	80 VAC	Polybutylene Terephthalate (PBT)	Aluminum	29 dB(A)			12 W	38 mm	Ball	3000 RPM	59.8 Pa	0.24 in H2O			Tubeaxial			80 mm	80 mm		cURus TUV		4 Wire Leads	80 °C	-20 ░C	Dual Voltage	230 VAC	115 VAC
ORION FANS OA80AP-11-3WB	40 °C 60000 Hrs	126 VAC	103 VAC	Polybutylene Terephthalate (PBT)	Aluminum	28 dB			9 W	38 mm	Ball	1950 RPM	17.4 Pa	0.07 in H2O	0.476 m³/min	17 CFM	Tubeaxial	115 VAC		80 mm	80 mm		cURus TUV	100 mA	2 Wire Leads	80 °C	-20 ░C
ORION FANS OA80AP-22-1WB	40 °C 60000 Hrs	260 VAC	160 VAC	Polybutylene Terephthalate (PBT)	Aluminum	36 dB			12 W	38 mm	Ball	3000 RPM	54.8 Pa	0.22 in H2O	0.84 mł/min	30 CFM	Tubeaxial	230 VAC		80 mm	80 mm		cURus TUV	60 mA	2 Wire Leads	80 °C	-20 ░C
