Pnp0 Series Series

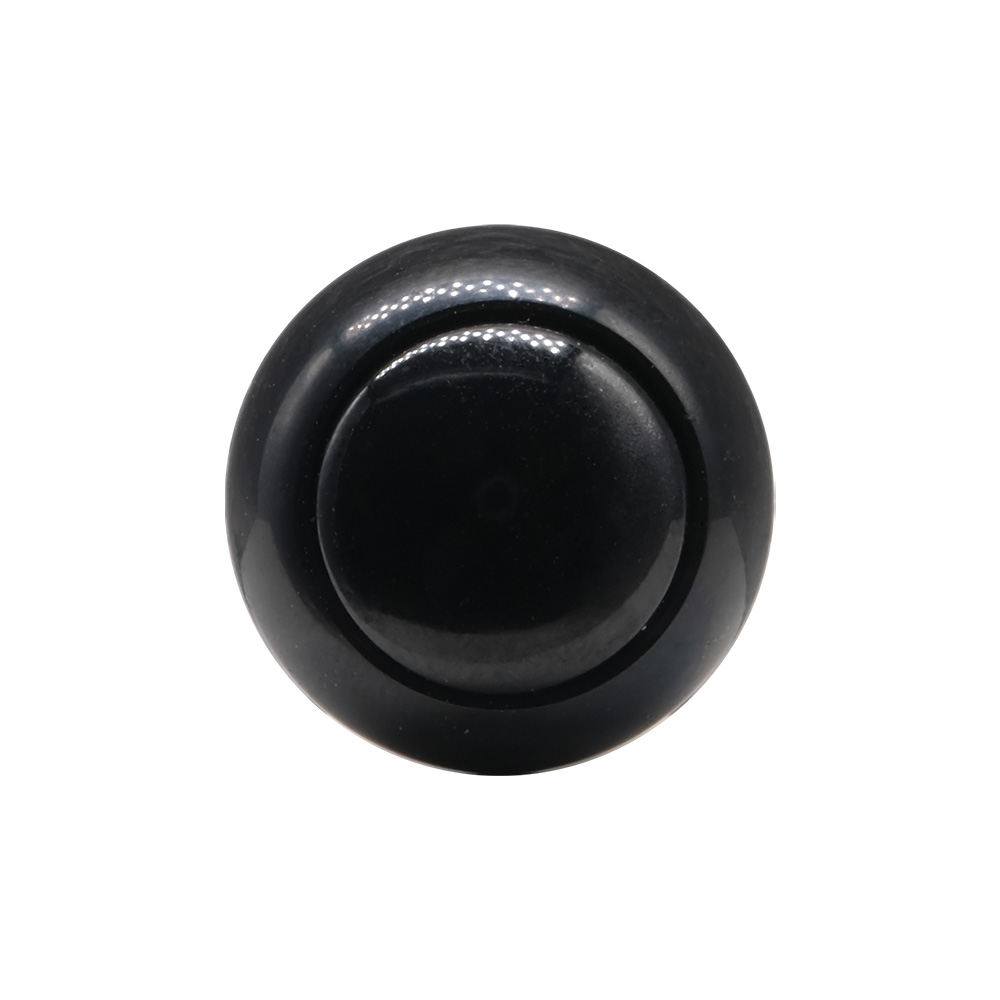

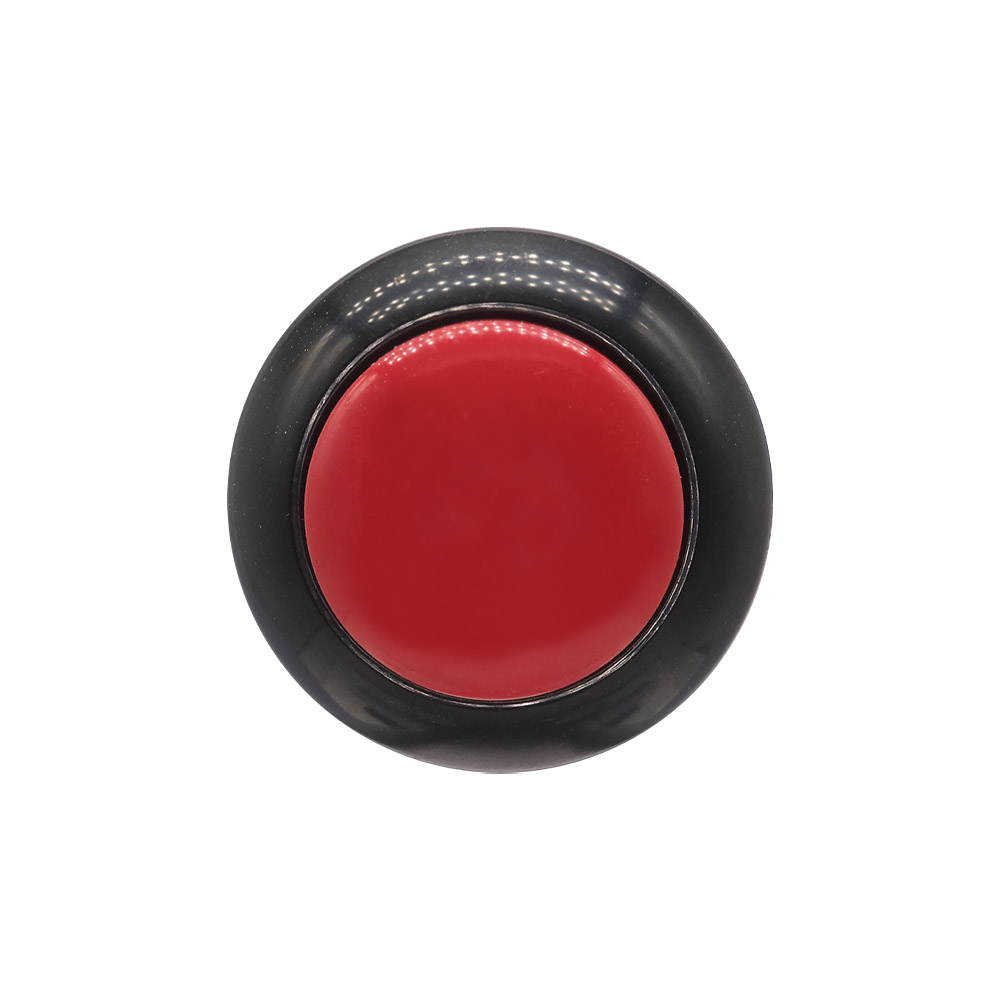

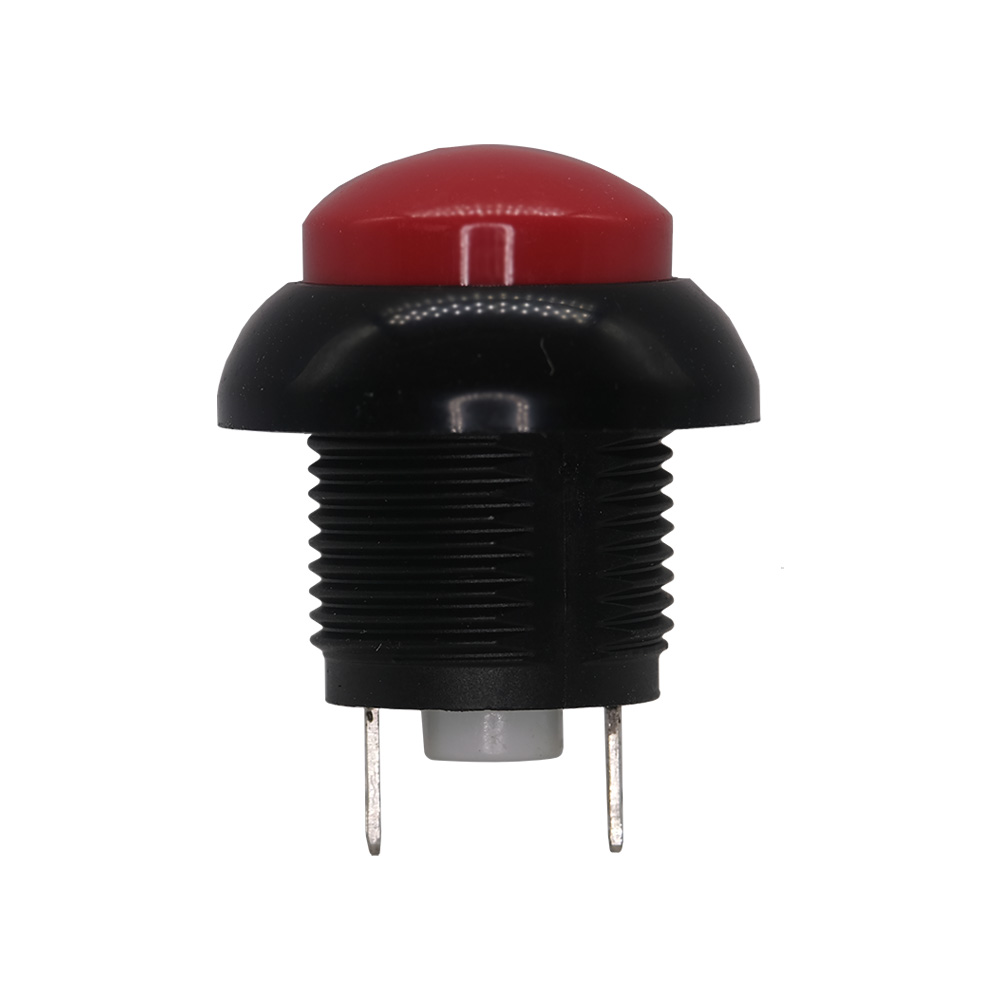

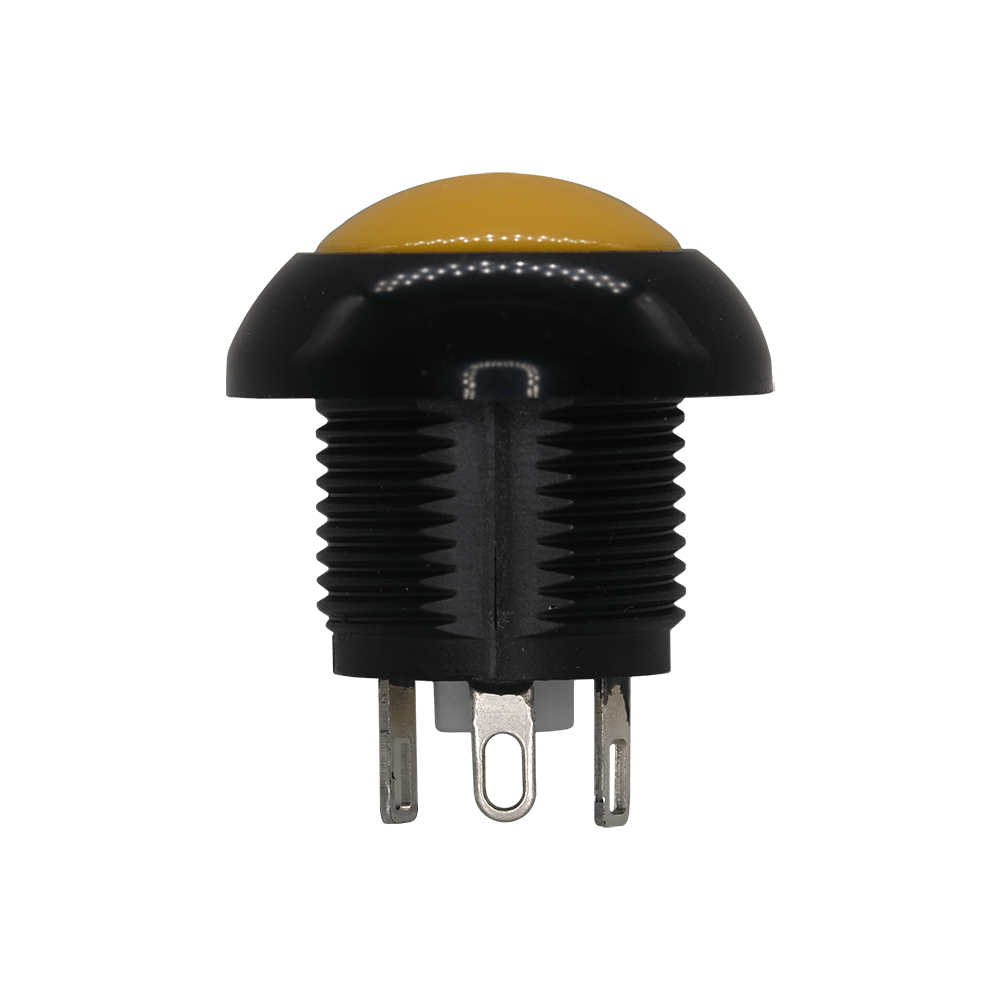

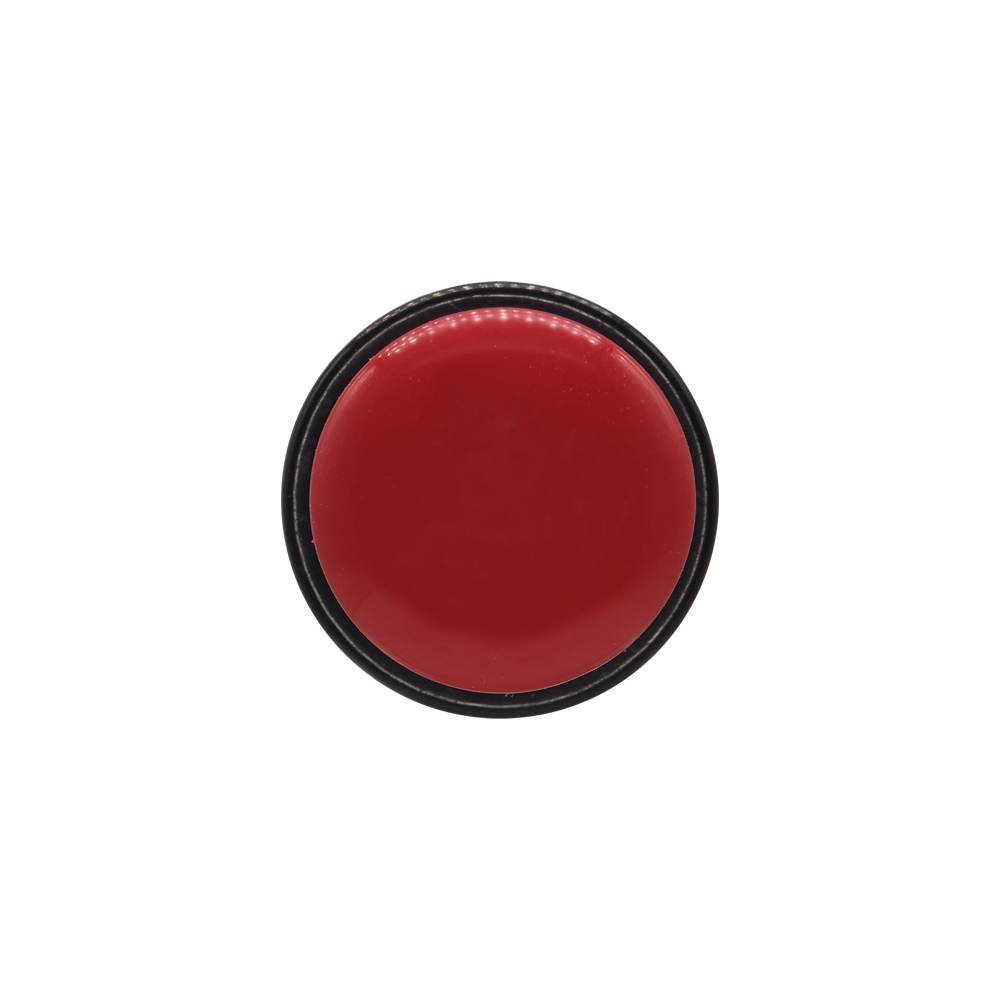

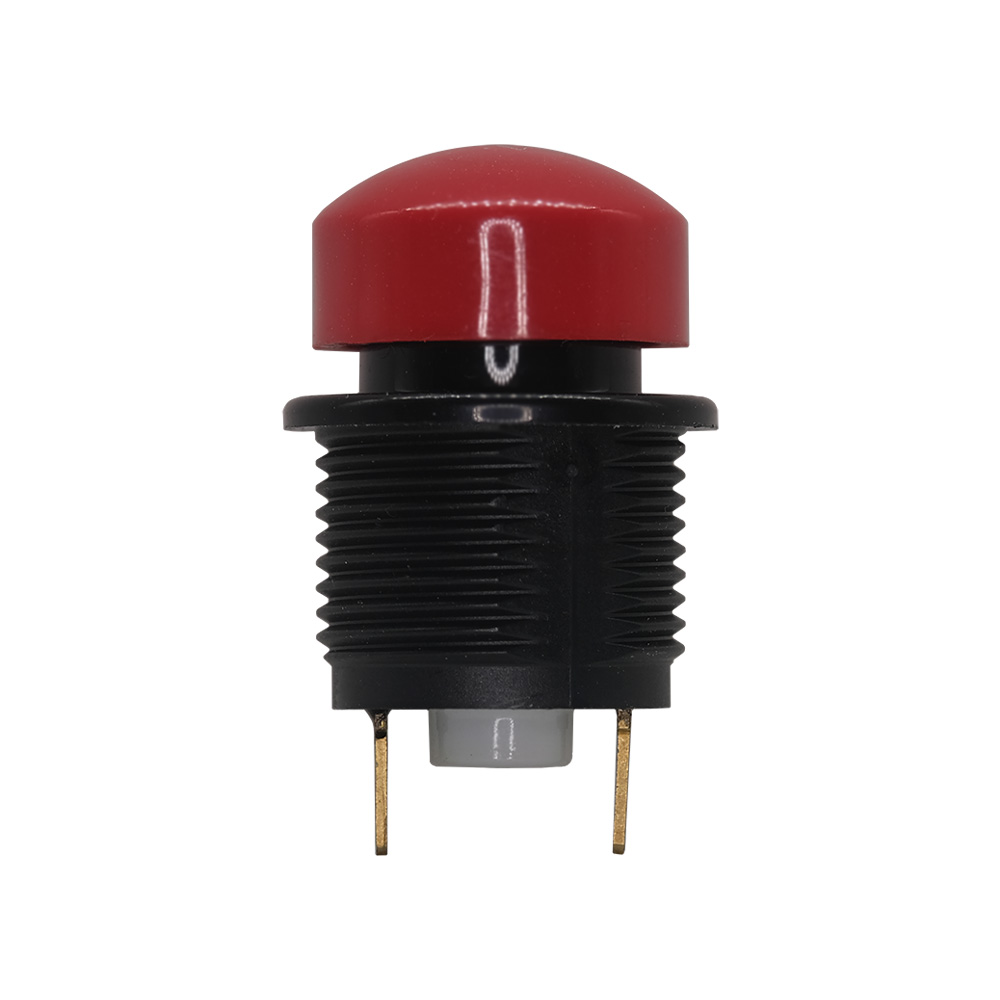

Sealed Pushbutton Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Sealed Pushbutton Switch

Part	Mechanical Life	Circuit	Switch Function	Termination Style	Voltage Rating - DC	Current Rating (Amps)	Electrical Life	Mounting Type	Actuator Type	Color - Actuator/Cap	Type	Ingress Protection	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Actuator Marking

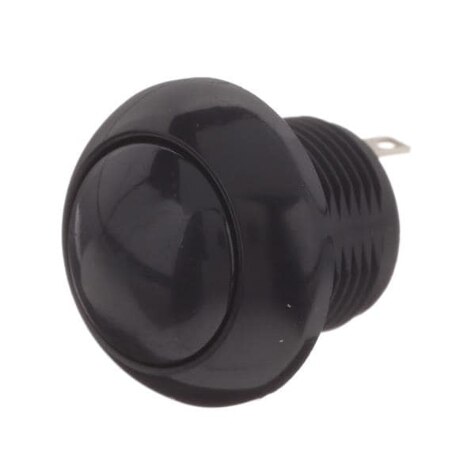

Littelfuse/Commercial Vehicle Products PNP3S2D2Y03QE	1000000 Cycles	SPST-NO	Off-Mom	Solder Lug	32 V	5 A	1000000 Cycles	Panel Mount Front	Button Domed Round	Black	Standard	IP68 - Dust Tight Waterproof	12.3 mm	85 °C	-40 °C

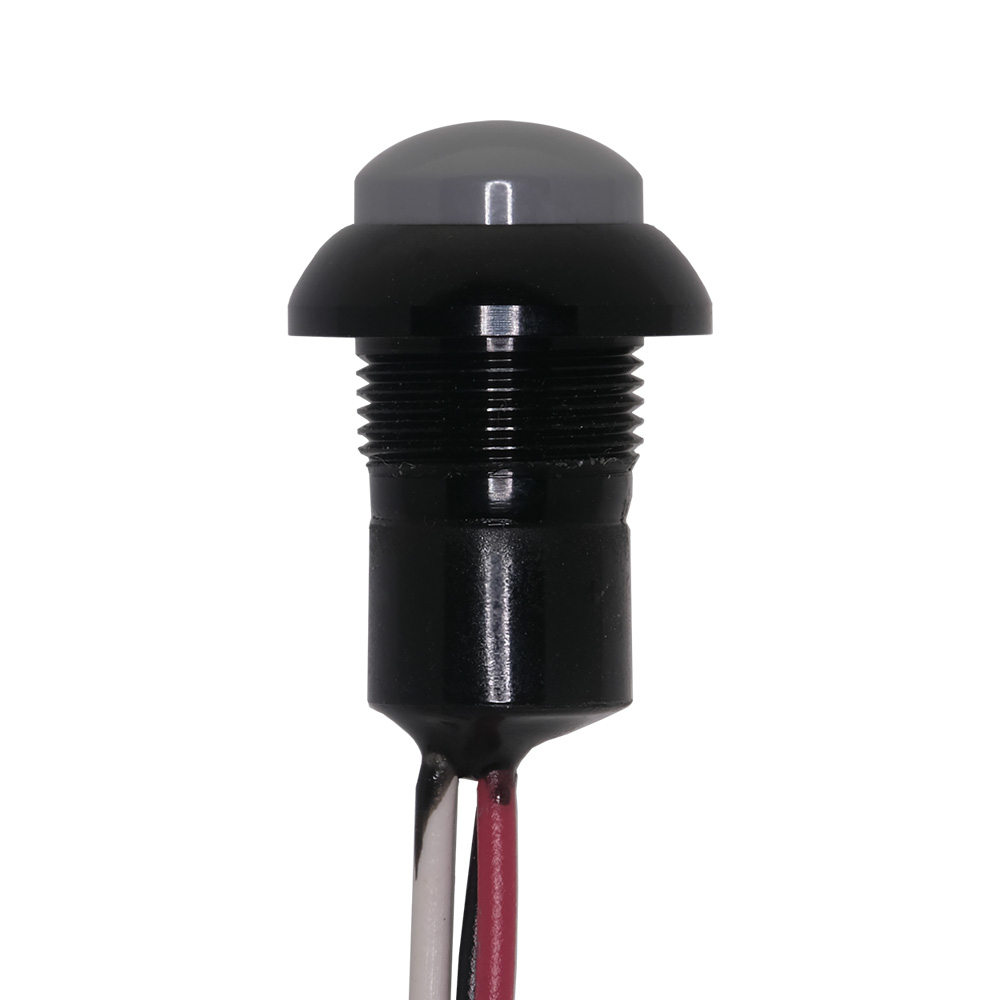

Littelfuse/Commercial Vehicle Products PNP8E5D2CW3QE	1000000 Cycles	SPDT	On-Mom	Wire Leads	32 V	5 A	25000 Steps	Panel Mount Front	Button Round	Yellow	Standard	IP68 - Dust Tight Waterproof	12.3 mm	85 °C	-40 °C
Littelfuse/Commercial Vehicle Products PNP3S2T2W03QE	1000000 Cycles	SPST-NC	On-Mom	Solder Lug	32 V	5 A	1000000 Cycles	Panel Mount Front	Button Domed Round	Black	Standard	IP68 - Dust Tight Waterproof	12.3 mm	85 °C	-40 °C
Littelfuse/Commercial Vehicle Products PNP8S2D2W02GE	1000000 Cycles	SPST-NC	On-Mom	PC Pin	5 V	10 mA	1000000 Cycles	Panel Mount Front	Button Domed Round	Black	Standard	IP68 - Dust Tight Waterproof	12.3 mm	85 °C	-40 °C
Littelfuse/Commercial Vehicle Products PNP8E3D2CW3QE	1000000 Cycles	SPDT	On-Mom	Wire Leads	32 V	5 A	25000 Steps	Panel Mount Front	Button Round	Red	Standard	IP68 - Dust Tight Waterproof	12.3 mm	85 °C	-40 °C
Littelfuse/Commercial Vehicle Products PNP8S2D2Y02GE	1000000 Cycles	SPST-NO	Off-Mom	PC Pin	32 V	5 A	25000 Steps	Panel Mount Front	Button Round	Black	Standard	IP68 - Dust Tight Waterproof	12.3 mm	85 °C	-40 °C
Littelfuse/Commercial Vehicle Products PNP8E5D2W03QE	1000000 Cycles	SPST-NC	On-Mom	Solder Lug	32 V	5 A	25000 Steps	Panel Mount Front	Button Round	Yellow	Standard	IP68 - Dust Tight Waterproof	12.3 mm	85 °C	-40 °C	Epoxy Sealed Terminals	No Marking
Littelfuse/Commercial Vehicle Products PNP8S5T2C03QE	1000000 Cycles	SPDT	On-Mom	Solder Lug	32 V	5 A	25000 Steps	Panel Mount Front	Button Round	Yellow	Standard	IP68 - Dust Tight Waterproof	12.3 mm	85 °C	-40 °C	Epoxy Sealed Terminals	No Marking
Littelfuse/Commercial Vehicle Products PNP8E3D2C02GE	1000000 Cycles	SPDT	On-Mom	PC Pin	32 V	5 A	25000 Steps	Panel Mount Front	Button Round	Red	Standard	IP68 - Dust Tight Waterproof	12.3 mm	85 °C	-40 °C
Littelfuse/Commercial Vehicle Products PNP8E2D2Y02GE	1000000 Cycles	SPST-NO	Off-Mom	PC Pin	32 V	5 A	25000 Steps	Panel Mount Front	Button Round	Black	Standard	IP68 - Dust Tight Waterproof	12.3 mm	85 °C	-40 °C

Catalog

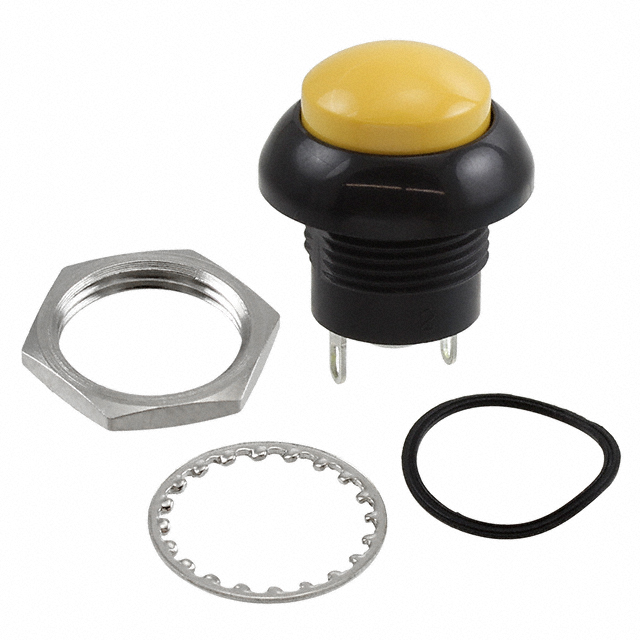

Sealed Pushbutton Switch

Key Features

• IP68 sealed to endure harsh environments

• 1,000,000 life cycle

• Snap-action provide positive tactile feedback

• Multiple housing styles

Description

The PNP series sealed pushbutton switch from C&K is engineered to meet the needs of applications for harsh environments – such as industrial, off-road, heavy equipment and lift products – where the switches are used repeatedly and are exposed to dust, water or other typically damaging elements. C&K’s PNP switches are IP68 sealed and RoHS compliant, feature a long lifecycle (1,000,000 uses) and are available in a variety of housing styles with up to a 5A resistive load.
