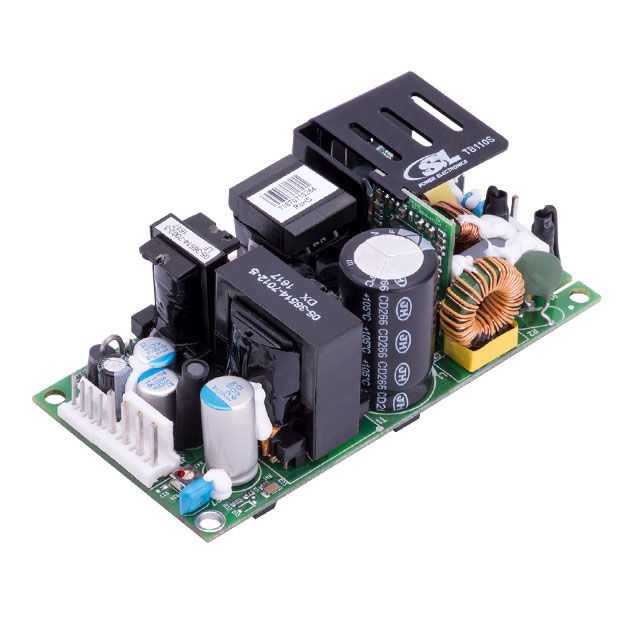

TB110S12 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC CONVERTER 12V 80W
| Part | Minimum Load Required | Voltage - Output 1 | Applications | Standard Number | Features | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Current - Output 1 | Approval Agency | Mounting Type | Type | Number of Outputs | Voltage - Isolation | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Power (Watts) | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 12 V | ITE (Commercial) | 60950-1 | Adjustable Output Standby Output Universal Input | 70 °C | -20 °C | 89 % | 6.7 A | CE cURus DEMKO | Chassis Mount | Open Frame | 1 | 3000 V | 101.6 mm | 33.6 mm | 4 " | 50.8 mm | 2 in | 1.32 in | 104 W | 80 W | |
 SL POWER / Advanced Energy | 12 V | ITE (Commercial) | Adjustable Output Remote On/Off Standby Output Universal Input | 70 °C | -20 °C | 89 % | 6.7 A | CE cURus DEMKO | Chassis Mount | Open Frame | 1 | 3000 V | 101.6 mm | 33.6 mm | 4 " | 50.8 mm | 2 in | 1.32 in | 80 W 110 W |
