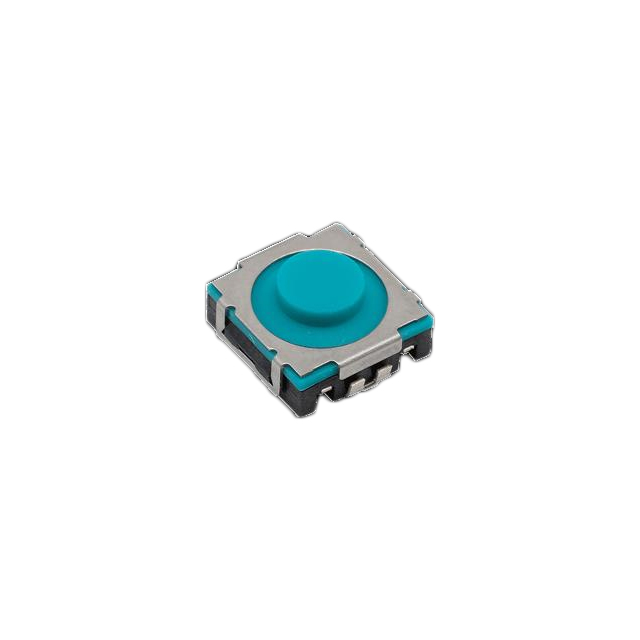

TLS A 040 Series
Manufacturer: LITTELFUSE
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 16V
| Part | Actuator Type | Circuit | Mechanical Life | Switch Function | Actuator Orientation | Operating Force | Actuator Height off PCB, Vertical [z] | Illumination | Switch Travel | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating @ Voltage | Mounting Type | Termination Style | Outline [y] | Outline [x] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Standard | SPST-NO | 500000 Cycles | Off-Mom | Top Actuated | 407 gf | 3.95 mm | Non-Illuminated | 0.9 mm | 90 °C | -40 C | 0.05 A 16 VDC | Surface Mount | J Lead | 8 mm | 8.4 mm | IP54 - Dust Protected Water Resistant |
