3020-10 Series
Manufacturer: CNC Tech
Beta
⌘K
CONN HEADER SMD 10POS 2.54MM
| Part | Contact Finish Thickness - Post | Connector Type | Number of Positions | Termination | Shrouding | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Material Flammability Rating | Insulation Material | Contact Finish - Post | Contact Finish - Mating | Contact Material | Insulation Height | Insulation Height | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish Thickness - Mating | Current Rating (Amps) | Number of Positions Loaded | Fastening Type | Style | Features | Contact Shape | Pitch - Mating | Pitch - Mating | Contact Type | Voltage Rating | Contact Length - Post | Contact Length - Post | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

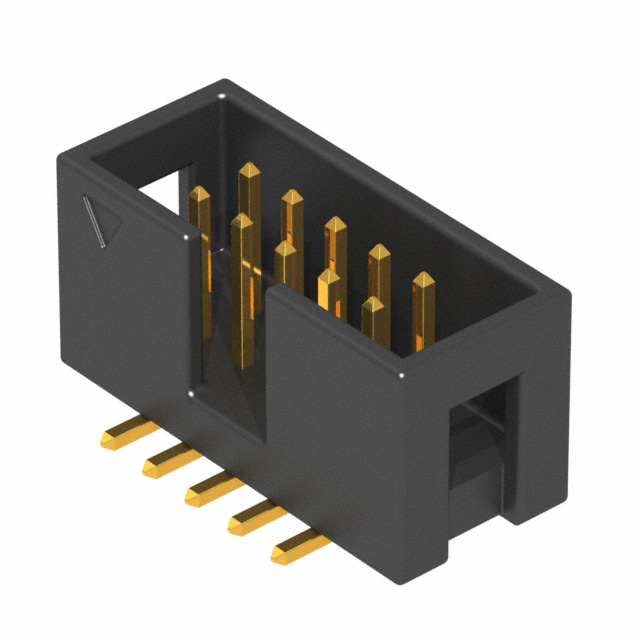

 CNC Tech | Flash | Header | 10 | Solder | Shrouded - 4 Wall | Black | -40 C | 105 ░C | 2 | UL94 V-0 | Nylon 9T Polyamide (PA9T) | Gold | Gold | Copper Alloy | 0.354 in | 9 mm | Surface Mount | 0.1 in | 2.54 mm | Flash | 3 A | All | Push-Pull | Board to Cable/Wire | Keying Slot Pick and Place | Square | 0.1 " | 2.54 mm | Male Pin | ||||||

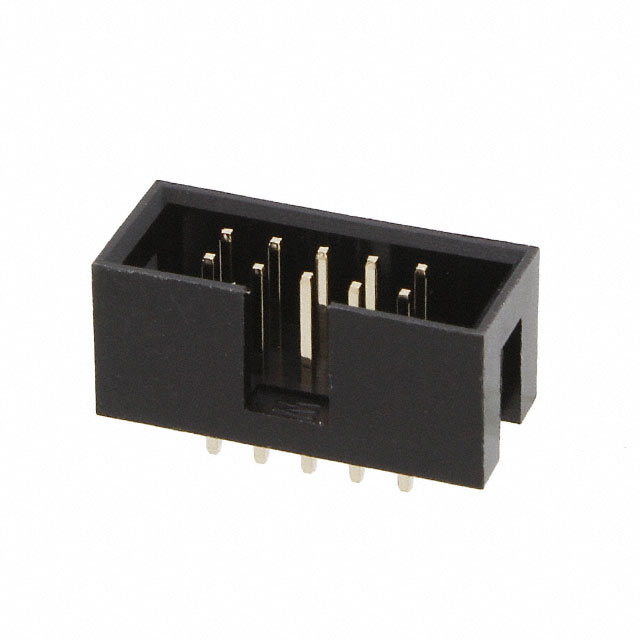

 CNC Tech | Flash | Header | 10 | Solder | Shrouded - 4 Wall | Black | -40 C | 105 ░C | 2 | UL94 V-0 | Nylon 9T Polyamide (PA9T) | Gold | Gold | Brass | 0.354 in | 9 mm | Through Hole | 0.1 in | 2.54 mm | Flash | 3 A | All | Push-Pull | Board to Cable/Wire | Keying Slot | Square | 0.1 " | 2.54 mm | Male Pin | 250 VAC | 0.118 in | 3 mm | |||

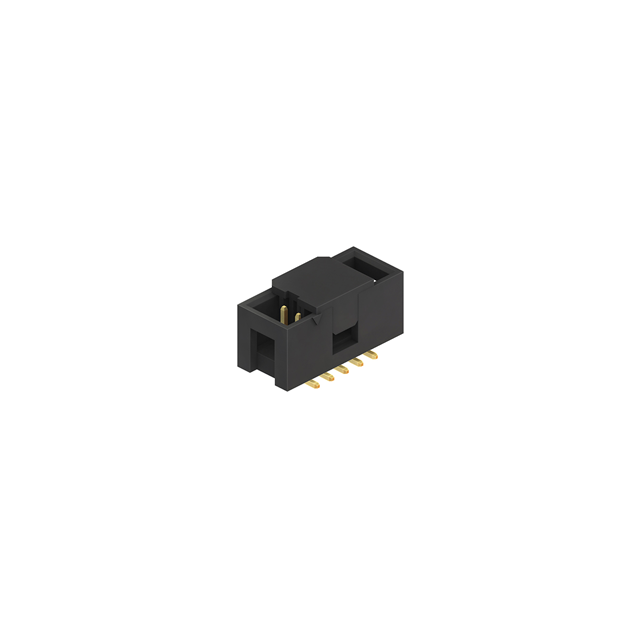

 CNC Tech | Flash | Header | 10 | Solder | Shrouded - 4 Wall | Black | -40 C | 105 ░C | 2 | UL94 V-0 | Nylon 9T Polyamide (PA9T) | Gold | Gold | Brass | 0.354 in | 9 mm | Surface Mount | 0.1 in | 2.54 mm | Flash | 3 A | All | Push-Pull | Board to Cable/Wire | Keying Slot | Square | 0.1 " | 2.54 mm | Male Pin | ||||||
 CNC Tech | Header | 10 | Solder | Shrouded - 4 Wall | -40 C | 105 ░C | 2 | UL94 V-0 | Polybutylene Terephthalate (PBT) Polyester | Gold | Brass | 0.35 in | Through Hole | 0.1 in | 2.54 mm | 3 A | All | Push-Pull | Board to Cable/Wire | Keying Slot | Square | 0.1 " | 2.54 mm | Male Pin | 0.118 in | 3 mm | 8.89 mm | 0.76 Ám | 30 Áin | ||||||
CNC Tech | Header | 10 | Solder | Shrouded - 4 Wall | -40 C | 105 ░C | 2 | UL94 V-0 | Nylon 6T Polyamide (PA6T) | Gold | Brass | 0.35 in | Right Angle Through Hole | 0.1 in | 2.54 mm | 3 A | All | Push-Pull | Board to Cable/Wire | Square | 0.1 " | 2.54 mm | Male Pin | 0.118 in | 3 mm | 8.89 mm | 0.76 Ám | 30 Áin |
