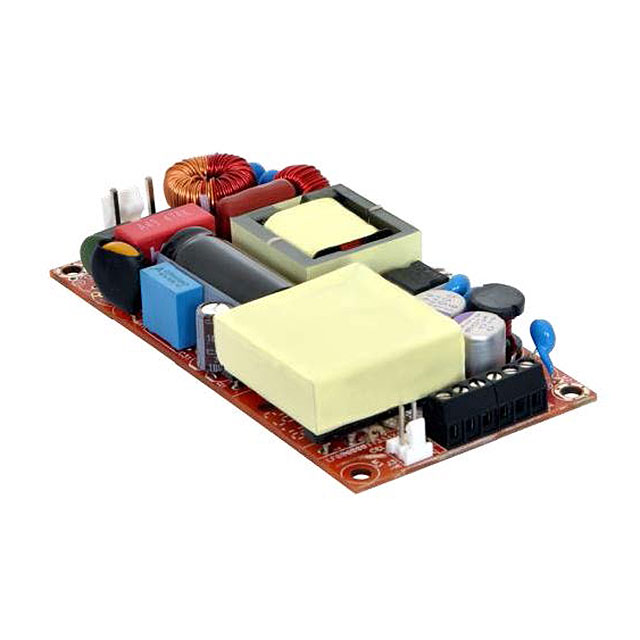

ABC180 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
AC/DC CONVERTER 48V 120/180W
| Part | Minimum Load Required | Power (Watts) | Type | Voltage - Output 1 | Features | Number of Outputs | Applications | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency | Voltage - Isolation | Approval Agency | Current - Output 1 | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 120 W 180 W | Open Frame | 48 V | Adjustable Output DC Input Capable PFC Standby Output Universal Input | 1 | ITE (Commercial) | 80 VAC | 264 VAC | 92 % | 3000 V | CE | 2.34 A | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | Chassis Mount | |
Bel Fuse Inc. | 120 W 180 W | Open Frame | 15 V | Adjustable Output DC Input Capable PFC Standby Output Universal Input | 1 | ITE (Commercial) | 80 VAC | 264 VAC | 88 % | 3000 V | CE | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | Chassis Mount | ||
Bel Fuse Inc. | 120 W 180 W | Open Frame | 12 V | Adjustable Output DC Input Capable PFC Standby Output Universal Input | 1 | ITE (Commercial) | 80 VAC | 264 VAC | 88 % | 3000 V | CE | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | Chassis Mount | ||
Bel Fuse Inc. | 120 W 180 W | Open Frame | 15 V | Adjustable Output DC Input Capable PFC Standby Output Universal Input | 1 | ITE (Commercial) | 80 VAC | 264 VAC | 88 % | 3000 V | CE | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | Chassis Mount | ||
 Bel Fuse Inc. | 120 W 180 W | Open Frame | Adjustable Output DC Input Capable PFC Standby Output Universal Input | 1 | ITE (Commercial) | 80 VAC | 264 VAC | 92 % | 3000 V | CE | 2.07 A | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | Chassis Mount | ||
Bel Fuse Inc. | 120 W 180 W | Open Frame | 30 V | Adjustable Output DC Input Capable PFC Standby Output Universal Input | 1 | ITE (Commercial) | 80 VAC | 264 VAC | 90 % | 3000 V | CE | 3.75 A | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | Chassis Mount | |
Bel Fuse Inc. | 120 W 180 W | Open Frame | 24 V | Adjustable Output DC Input Capable PFC Standby Output Universal Input | 1 | ITE (Commercial) | 80 VAC | 264 VAC | 90 % | 3000 V | CE | 4.68 A | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | Chassis Mount |
