77151 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

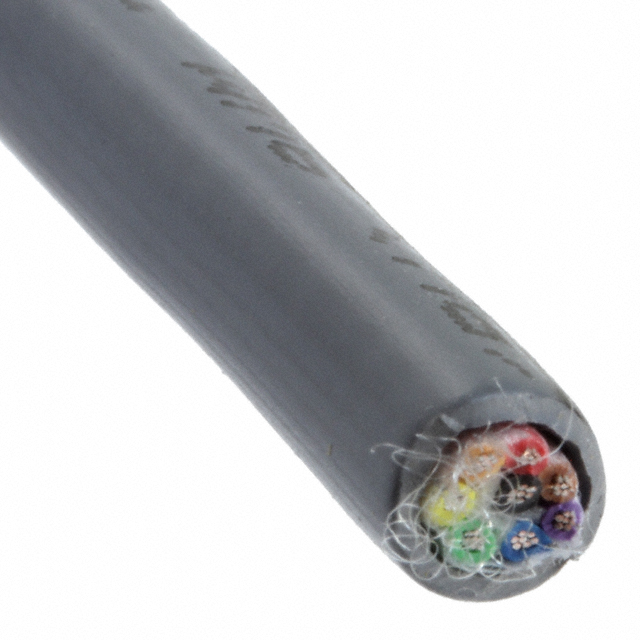

CABLE 8COND 26AWG SHLD 100=100'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [x] | Conductor Strand [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Shield Type | Features | Number of Conductors [custom] | Conductor Insulation | Jacket Color | Voltage | Conductor Material | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Polyphenylene Ether Modified (mPPE) | -50 °C | 105 ░C | 34 AWG | 7 | 0.813 mm | 0.032 in | Multi-Conductor | Foil | Biological Compatibility Drain Wire Rip Cord | 8 | Polyphenylene Ether Modified (mPPE) | Slate | 600 V | Copper Tinned | 26 AWG | 0.202 in | 5.13 mm | ISO 10993 UL Style 21915 | ||||
ALPHA WIRE | 100 % | Aluminum | Polyphenylene Ether Modified (mPPE) | -50 °C | 105 ░C | 34 AWG | 7 | 0.813 mm | 0.032 in | Multi-Conductor | Foil | Biological Compatibility Drain Wire Rip Cord | 8 | Polyphenylene Ether Modified (mPPE) | Slate | 600 V | Copper Tinned | 26 AWG | 0.202 in | 5.13 mm | ISO 10993 UL Style 21915 | 100 ft | 30.5 m | ||
ALPHA WIRE | 100 % | Aluminum | Polyphenylene Ether Modified (mPPE) | -50 °C | 105 ░C | 34 AWG | 7 | 0.813 mm | 0.032 in | Multi-Conductor | Foil | Biological Compatibility Drain Wire Rip Cord | 8 | Polyphenylene Ether Modified (mPPE) | Slate | 600 V | Copper Tinned | 26 AWG | 0.202 in | 5.13 mm | ISO 10993 UL Style 21915 | 304.8 m | 1000 ft |
