A3BKB Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

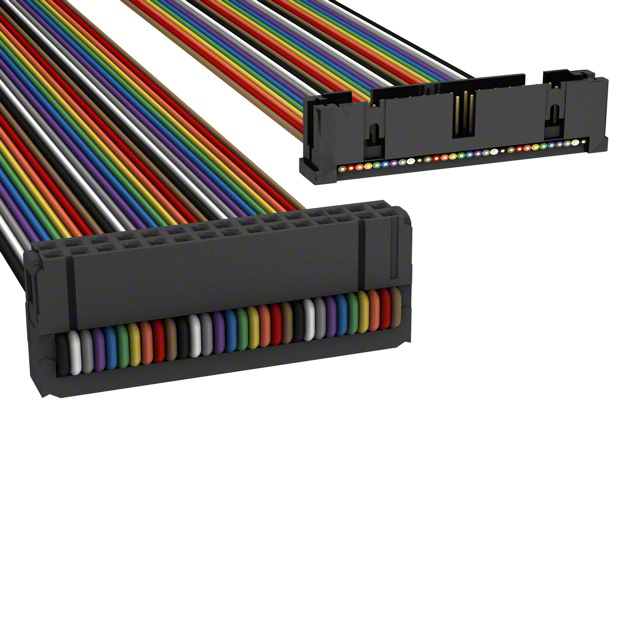

IDC CABLE- ASR10B/AE10G/APK10B

Part	Connector Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch - Cable	Pitch - Cable	Cable Termination	Shielding	Features	Number of Rows [custom]	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Length	Length	Color	Length
TE Connectivity AMP Connectors A3BKB-1018G	Socket to Plug	10	0.38 µm	15 µin	Gold	0.05 in	1.27 mm	IDC	Unshielded	Polarizing Key (Plug) Strain Relief (Socket)	2	0.1 in	2.54 mm	457.2 mm	1.5 ft
TE Connectivity AMP Connectors A3BKB-1636G	Socket to Plug	16	0.38 µm	15 µin	Gold	0.05 in	1.27 mm	IDC	Unshielded	Polarizing Key (Plug) Strain Relief (Socket)	2	0.1 in	2.54 mm			91.44 cm	3 ft
TE Connectivity AMP Connectors A3BKB-4018G	Socket to Plug	40	0.38 µm	15 µin	Gold	0.05 in	1.27 mm	IDC	Unshielded	Polarizing Key (Plug) Strain Relief (Socket)	2	0.1 in	2.54 mm	457.2 mm	1.5 ft
TE Connectivity AMP Connectors A3BKB-5006M	Socket to Plug	50	0.38 µm	15 µin	Gold	0.05 in	1.27 mm	IDC	Unshielded	Polarizing Key (Plug) Strain Relief (Socket)	2	0.1 in	2.54 mm			152.4 mm	0.5 '	Multiple Ribbon	6 "
TE Connectivity AMP Connectors A3BKB-1406G	Socket to Plug	14	0.38 µm	15 µin	Gold	0.05 in	1.27 mm	IDC	Unshielded	Polarizing Key (Plug) Strain Relief (Socket)	2	0.1 in	2.54 mm			152.4 mm	0.5 '		6 "
TE Connectivity AMP Connectors A3BKB-3018M	Socket to Plug	30	0.38 µm	15 µin	Gold	0.05 in	1.27 mm	IDC	Unshielded	Polarizing Key (Plug) Strain Relief (Socket)	2	0.1 in	2.54 mm	457.2 mm	1.5 ft			Multiple Ribbon
TE Connectivity AMP Connectors A3BKB-1618G	Socket to Plug	16	0.38 µm	15 µin	Gold	0.05 in	1.27 mm	IDC	Unshielded	Polarizing Key (Plug) Strain Relief (Socket)	2	0.1 in	2.54 mm	457.2 mm	1.5 ft
TE Connectivity AMP Connectors A3BKB-1436M	Socket to Plug	14	0.38 µm	15 µin	Gold	0.05 in	1.27 mm	IDC	Unshielded	Polarizing Key (Plug) Strain Relief (Socket)	2	0.1 in	2.54 mm			91.44 cm	3 ft	Multiple Ribbon
TE Connectivity AMP Connectors A3BKB-2036G	Socket to Plug	20	0.38 µm	15 µin	Gold	0.05 in	1.27 mm	IDC	Unshielded	Polarizing Key (Plug) Strain Relief (Socket)	2	0.1 in	2.54 mm			91.44 cm	3 ft
TE Connectivity AMP Connectors A3BKB-1006G	Socket to Plug	10	0.38 µm	15 µin	Gold	0.05 in	1.27 mm	IDC	Unshielded	Polarizing Key (Plug) Strain Relief (Socket)	2	0.1 in	2.54 mm			152.4 mm	0.5 '		6 "
