78098 Series

Catalog

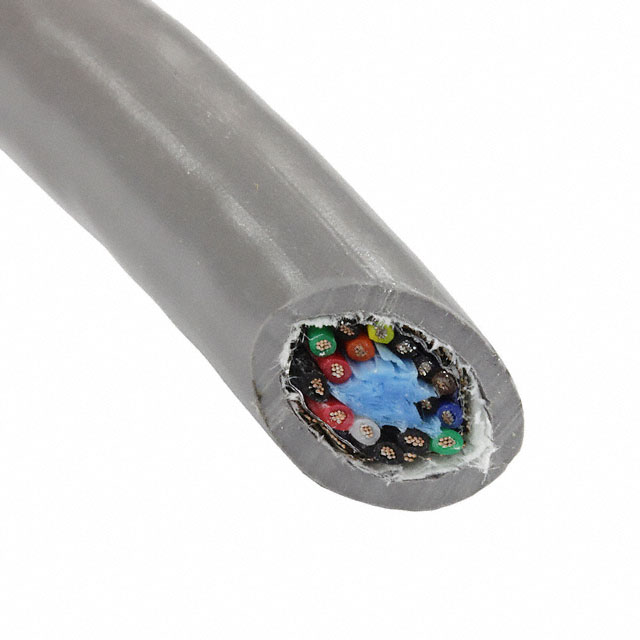

MULTIPAIR CABLE, ECOGEN™ ECOCABLE® MINI, UNSHIELDED, 8 PAIR, 20 AWG, 0.616 MM², 100 FT, 30.5 M

Part	Jacket (Insulation) Material	Length [x]	Length [x]	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Number of Conductors	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Wire Gauge	Voltage	Cable Type	Conductor Material	Ratings	Length	Length
ALPHA WIRE 78098 SL005	Polyphenylene Ether Modified (mPPE)	100 ft	30.5 m	Slate	80 °C	-40 C	0.381 mm	0.015 in	16	Polyphenylene Ether Modified (mPPE)	19	32 AWG	0.328 in	8.33 mm	Biological Compatibility Rip Cord	20 AWG	300 VDC	Multi-Pair	Copper Tinned	ISO 10993 UL Style 21460
ALPHA WIRE 78098 SL199	Polyphenylene Ether Modified (mPPE)	1 '	300 mm	Slate	80 °C	-40 C	0.381 mm	0.015 in	16	Polyphenylene Ether Modified (mPPE)	19	32 AWG	0.328 in	8.33 mm	Biological Compatibility Rip Cord	20 AWG	300 VDC	Multi-Pair	Copper Tinned	ISO 10993 UL Style 21460
ALPHA WIRE 78098 SL001	Polyphenylene Ether Modified (mPPE)			Slate	80 °C	-40 C	0.381 mm	0.015 in	16	Polyphenylene Ether Modified (mPPE)	19	32 AWG	0.328 in	8.33 mm	Biological Compatibility Rip Cord	20 AWG	300 VDC	Multi-Pair	Copper Tinned	ISO 10993 UL Style 21460	304.8 m	1000 ft
