H11N1M Series

6-Pin DIP Low Input Current Schmitt Trigger Output Optocoupler

Catalog

6-Pin DIP Low Input Current Schmitt Trigger Output Optocoupler

Part	Voltage - Isolation	Voltage - Forward (Vf) (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Inputs - Side 1/Side 2 [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Output Type	Current - DC Forward (If) (Max) [Max]	Data Rate	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - Output / Channel	Input Type	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Number of Channels	Package / Case	Package / Case
ON Semiconductor H11N1SM	4170 Vrms	1.4 V	85 °C	-40 °C	6-SMD	Surface Mount	1	4 V	15 V	6-SMD Gull Wing	Open Collector	30 mA	5 MHz	12 ns	7.5 ns	50 mA	DC	330 ns	330 ns	1
ON Semiconductor H11N1SR2M	4170 Vrms	1.4 V	85 °C	-40 °C	6-SMD	Surface Mount	1	4 V	15 V	6-SMD Gull Wing	Open Collector	30 mA	5 MHz	12 ns	7.5 ns	50 mA	DC	330 ns	330 ns	1

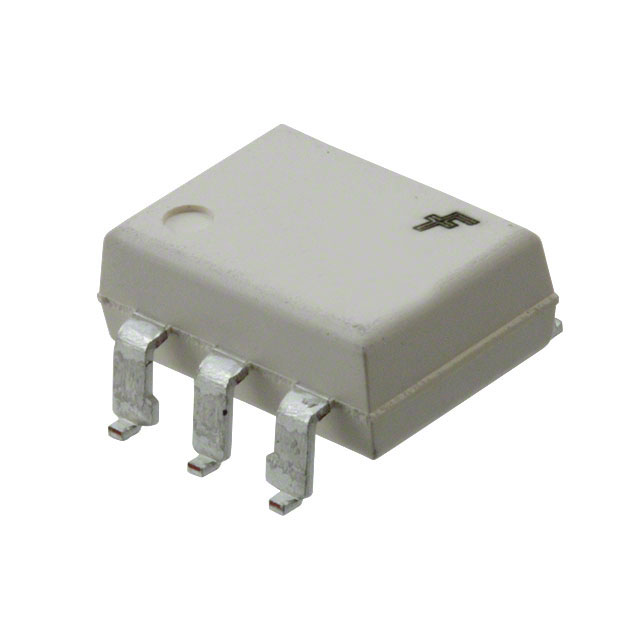

ON Semiconductor H11N1SVM	4170 Vrms	1.4 V	85 °C	-40 °C	6-SMD	Surface Mount	1	4 V	15 V	6-SMD Gull Wing	Open Collector	30 mA	5 MHz	12 ns	7.5 ns	50 mA	DC	330 ns	330 ns	1
ON Semiconductor H11N1VM	4170 Vrms	1.4 V	85 °C	-40 °C	6-DIP	Through Hole	1	4 V	15 V	6-DIP	Open Collector	30 mA	5 MHz	12 ns	7.5 ns	50 mA	DC	330 ns	330 ns	1	0.3 in	7.62 mm

Catalog

6-Pin DIP Low Input Current Schmitt Trigger Output Optocoupler

Key Features

• High data rate, 5MHz typical (NRZ)

• Free from latch up and oscilliation throughout voltage and temperature ranges

• Microprocessor compatible drive

• Logic compatible output sinks 16mA at 0.5V maximum

• Guaranteed on/off threshold hysteresis

• Wide supply voltage capability, compatible with all popular logic systems

• High common mode transient immunity, 2000V/µs minimum

• Fast switching tr= 7.5ns typical, tf= 12ns typical

• Underwriter Laboratory (UL) recognized-file #E90700

• VDE recognized - File#102497 - Add option V (e.g., H11N1VM)

Description

The H11NX-M series has a high speed integrated circuit detector optically coupled to an AlGaAs infrared emitting diode. The output incorporates a Schmitt trigger, which provides hysteresis for noise immunity and pulse shaping. The detector circuit is optimized for simplicity of operation and utilizes an open collector output for maximum application flexibility.
