09260030 Series
Manufacturer: HARTING
Beta
⌘K

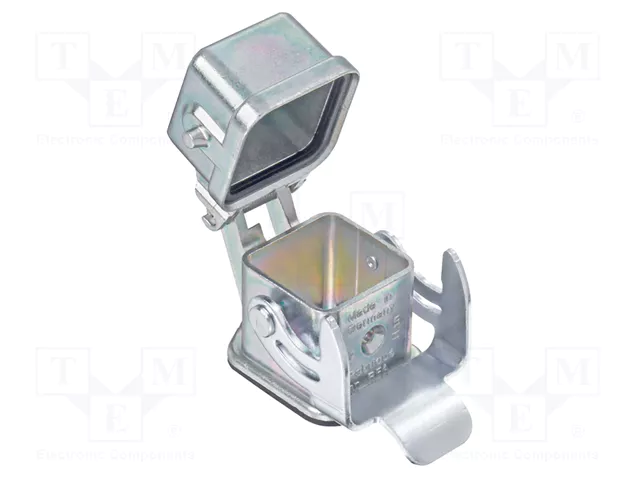

ENCLOSURE FOR CONNECTORS: HDC; SIZE 3A; HAN® A,HAN® EMC; 21X21MM
| Part | Size | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Connector Type | Features | Housing Color | Housing Material | Ingress Protection | Style | Lock Location | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

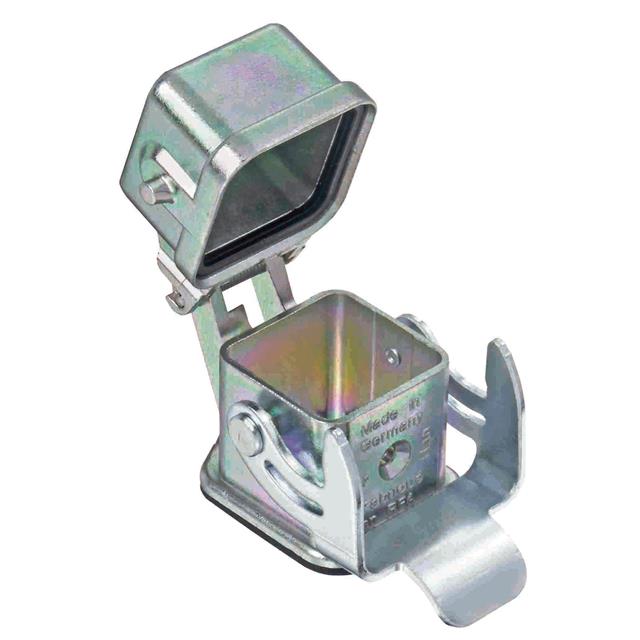

 HARTING | 3 A | 28 mm | 0.906 in | 40 mm | 1.575 " | 1.102 " | 23 mm | Base - Panel Mount | Cover | Silver | Zinc Die Cast | IP65 - Dust Tight Water Resistant | Bottom Entry | Locking Clip on Base Bottom | 125 °C | -40 C |

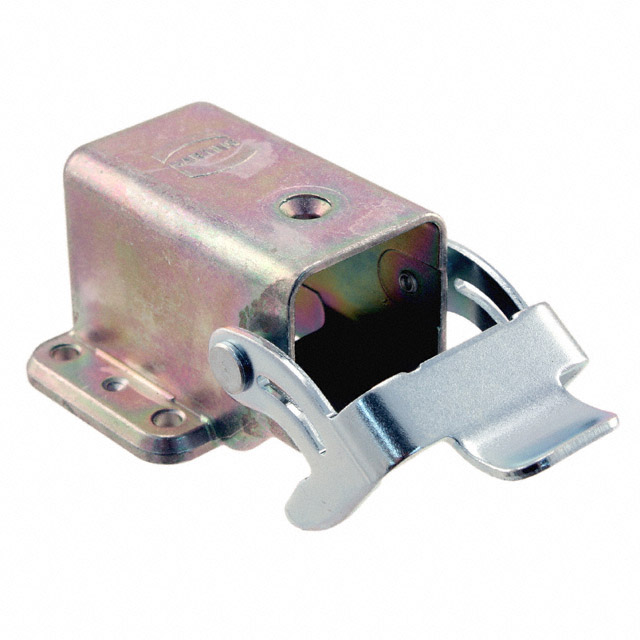

 HARTING | 3 A | Base - Panel Mount 90° | Gray | Zinc Die Cast | IP44 | Side Entry | Locking Clip (1) on Base Bottom | 125 °C | -40 C |
