PPTC401 Series

Catalog

CONN HDR 40POS 0.1 TIN SMD

Part	Contact Shape	Insulation Material	Contact Material	Connector Type	Contact Finish - Post	Current Rating (Amps)	Termination	Contact Type	Number of Positions	Insulation Color	Fastening Type	Mounting Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]

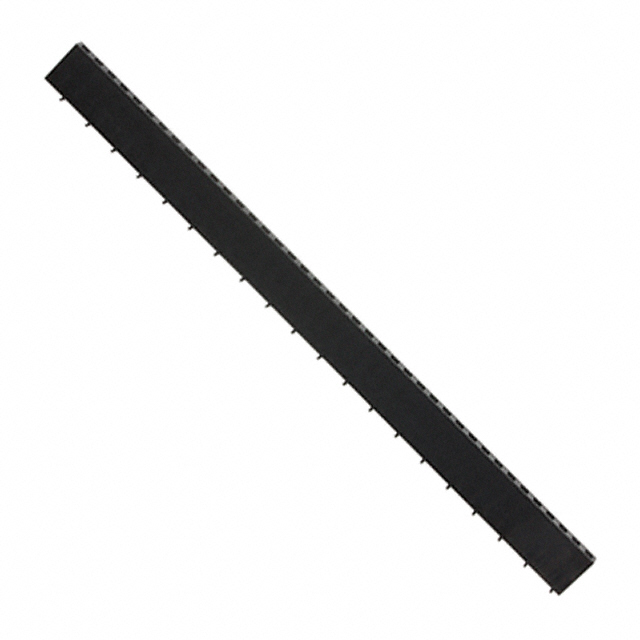

Sullins Connector Solutions PPTC401KFXC	Square	Polyester	Phosphor Bronze	Header Top or Bottom Entry	Tin	3 A	Solder	Female Socket	40	Black	Push-Pull	Surface Mount	UL94 V-0	0.1 "	2.54 mm	1	-40 C	105 ░C	250 V	All	0.28 in	7.1 mm
Sullins Connector Solutions PPTC401LFBN-RC	Square	Polyester	Phosphor Bronze	Header	Tin	3 A	Solder	Female Socket	40	Black	Push-Pull	Through Hole	UL94 V-0	0.1 "	2.54 mm	1	-40 C	105 ░C	250 V	All	0.335 "	8.51 mm	0.126 "	3.2 mm
