T 3636 Series

Catalog

CONN PLUG FMALE 12P SOLDER CUP

Part	Shell Finish	Features	Ingress Protection	Fastening Type	Mounting Type	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Current Rating (Amps)	Number of Positions	Orientation	Shell Material	Contact Finish - Mating	Color	Primary Material	Connector Type	Shielding
Amphenol Tuchel Industrial T 3636 058	Nickel	Strain Relief	IP40	Threaded	Free Hanging (In-Line) Right Angle	M16-12	-40 C	100 °C	60 VDC	3 A	12	Keyed	Die Cast	Gold	Silver	Metal	Plug Female Sockets	Shielded
Amphenol Tuchel Industrial T 3636 013	Nickel	Strain Relief	IP40	Threaded	Free Hanging (In-Line)	M16-12	-40 C	100 °C	60 VDC	3 A	12	Keyed	Die Cast	Silver	Silver	Metal	Plug Female Sockets	Shielded
Amphenol Tuchel Industrial T 3636 005	Nickel	Strain Relief	IP40	Threaded	Free Hanging (In-Line) Right Angle	M16-12	-40 C	100 °C	60 VDC	3 A	12	Keyed	Die Cast	Silver	Silver	Metal	Plug Female Sockets	Shielded

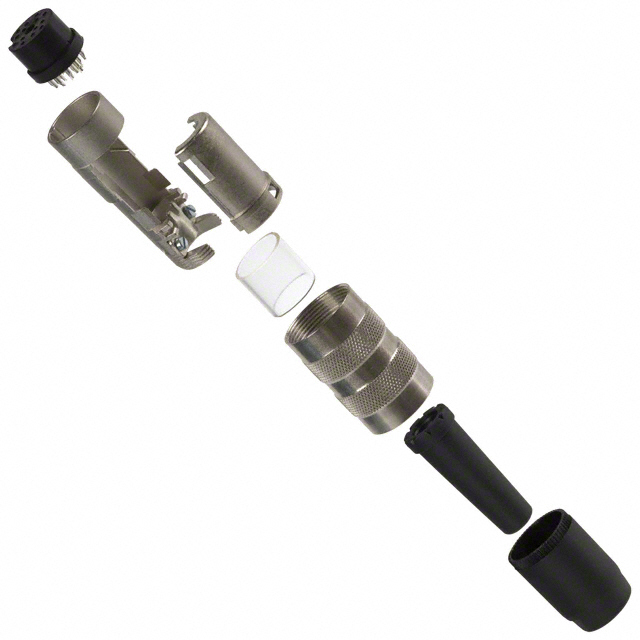

Amphenol Tuchel Industrial T 3636 001	Nickel	Strain Relief	IP40	Threaded	Free Hanging (In-Line)	M16-12	-40 C	100 °C	60 VDC	3 A	12	Keyed	Die Cast	Silver	Silver	Metal	Plug Female Sockets	Shielded
