19370100 Series

Manufacturer: HARTING

Catalog

HAN M HOOD TOP ENTRY HC 2 REELS M32 ROHS COMPLIANT: NA

Part	Housing Color	Housing Material	Size	Housing Finish	Ingress Protection	Connector Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Style	Lock Location	Features

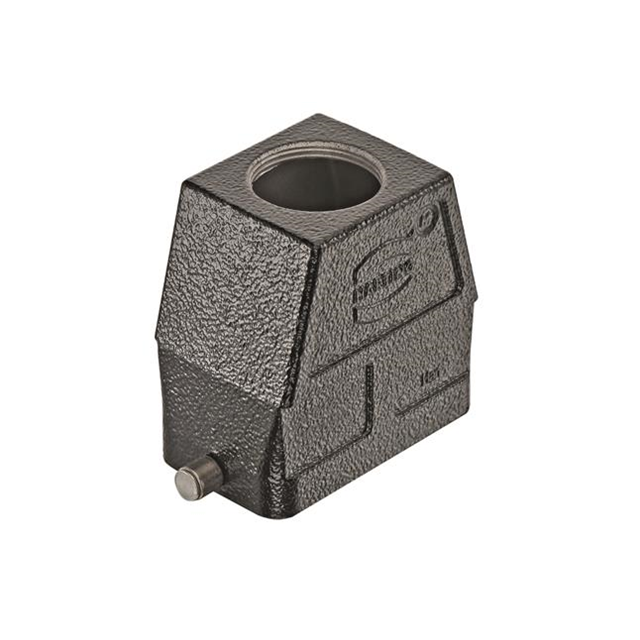

HARTING 19370100447	Black	Aluminum Die Cast	10B	Powder Coated	IP65 - Dust Tight Water Resistant	Hood	72 mm	1.693 "	2.835 "	72.6 mm	2.858 in	43 mm	M32	125 °C	-40 C	Top Entry	Locking Clip (1) on Base Bottom

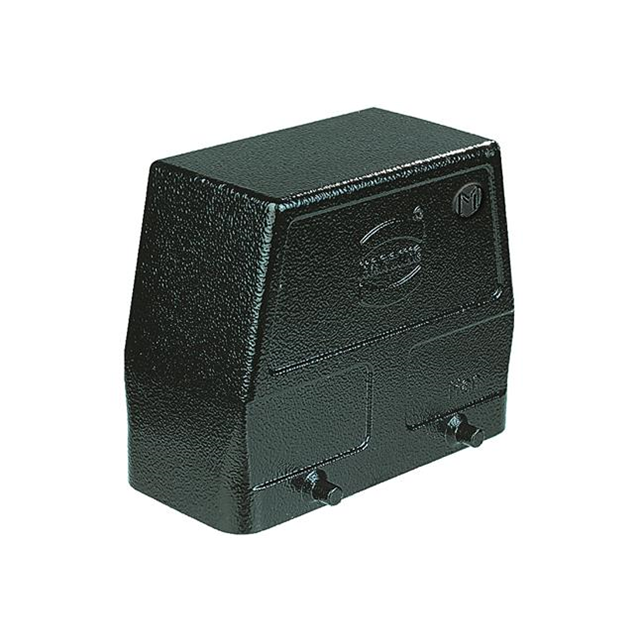

HARTING 19370100527	Black	Aluminum Die Cast	10B	Powder Coated	IP65 IP66 IP67	Hood							M32	125 °C	-40 C	Side Entry	Locking Clip (2) on Base Bottom
HARTING 19370100272	Black	Aluminum Die Cast	10B	Powder Coated	IP65 - Dust Tight Water Resistant	Base - Box Mount	3.181 " 80.8 mm			3.701 " 94 mm		2.244 in 57 mm	M32	125 °C	-40 C	Side Entry	Locking Clip (2) on Base Bottom	Feed Through

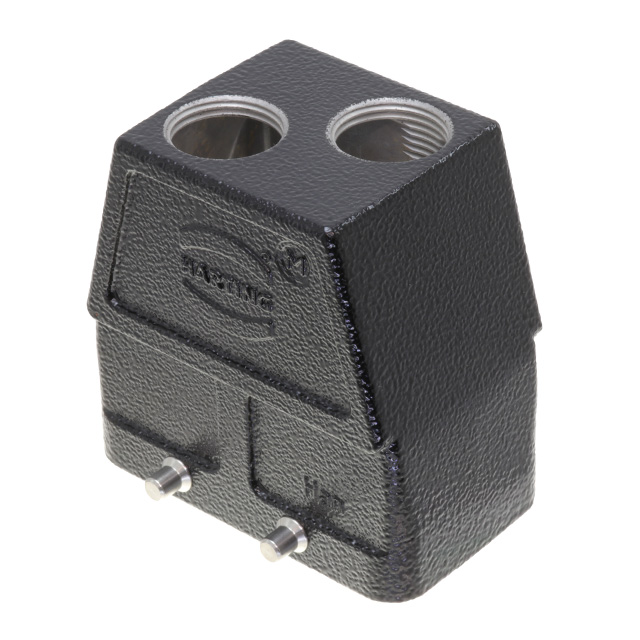

HARTING 19370100465	Black	Aluminum Die Cast	10B	Powder Coated	IP65 - Dust Tight Water Resistant	Hood	72 mm	1.693 "	2.835 "	72.6 mm	2.858 in	43 mm	M20	125 °C	-40 C	Top Entry Dual	Locking Clip (2) on Base Bottom
HARTING 19370100528	Black	Aluminum Die Cast	10B	Powder Coated	IP65 IP66 IP67	Hood	72 mm	1.693 "	2.835 "	72.6 mm	2.858 in	43 mm		125 °C	-40 C	Side Entry	Locking Clip (2) on Base Bottom
HARTING 19370100526	Black	Aluminum Die Cast	10B	Powder Coated	IP65 - Dust Tight Water Resistant	Hood	72 mm	1.693 "	2.835 "	72.6 mm	2.858 in	43 mm	M25	125 °C	-40 C	Side Entry	Locking Clip (2) on Base Bottom
HARTING 19370100296	Black	Aluminum Die Cast	10B	Powder Coated	IP65 - Dust Tight Water Resistant	Base - Box Mount							M25	125 °C	-40 C	Side Entry	Locking Clip (1) on Base Bottom
