104450 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

05 MTE HDR SRST LATCHW/HLDWN

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Termination	Insulation Material	Contact Shape	Material Flammability Rating	Connector Type	Insulation Color	Number of Rows	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Type	Number of Positions Loaded	Contact Material	Number of Positions	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Style	Mounting Type	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating
TE Connectivity AMP Connectors 1-104450-2	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	13.84 mm	0.545 in	Press-Fit Solder	Thermoplastic	Square	UL94 V-0	Header	Black	1	13.6 mm	0.535 in	0.13 "	3.3 mm	Male Pin	All	Brass	5	3 A	105 ░C	-65 ░C	Shrouded - 4 Wall	Board to Board Cable	Through Hole	Board Guide Keying Slot	100 çin	2.54 çm	0.1 "	2.54 mm	Tin	Latch Holder	0.23 in	5.84 mm

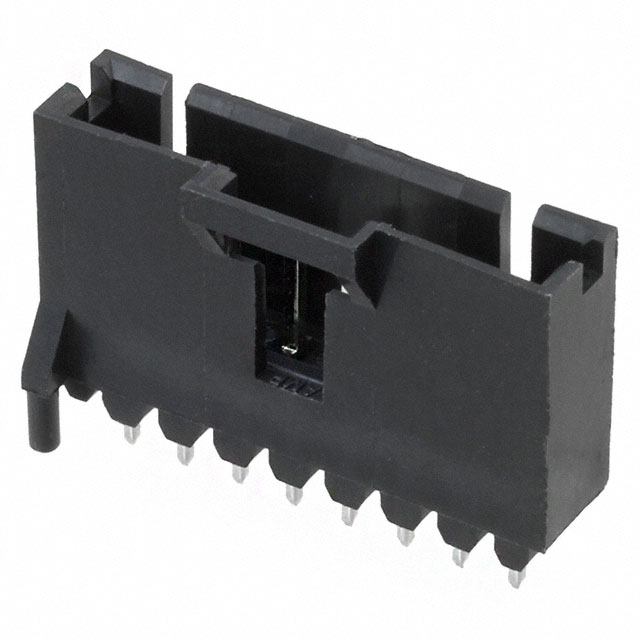

TE Connectivity AMP Connectors 104450-7	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	13.84 mm	0.545 in	Press-Fit Solder	Thermoplastic	Square	UL94 V-0	Header	Black	1	13.6 mm	0.535 in	0.13 "	3.3 mm	Male Pin	All	Brass	8	3 A	105 ░C	-65 ░C	Shrouded - 4 Wall	Board to Board Cable	Through Hole	Board Guide Keying Slot	100 çin	2.54 çm	0.1 "	2.54 mm	Tin-Lead	Latch Holder	0.23 in	5.84 mm	Tin-Lead

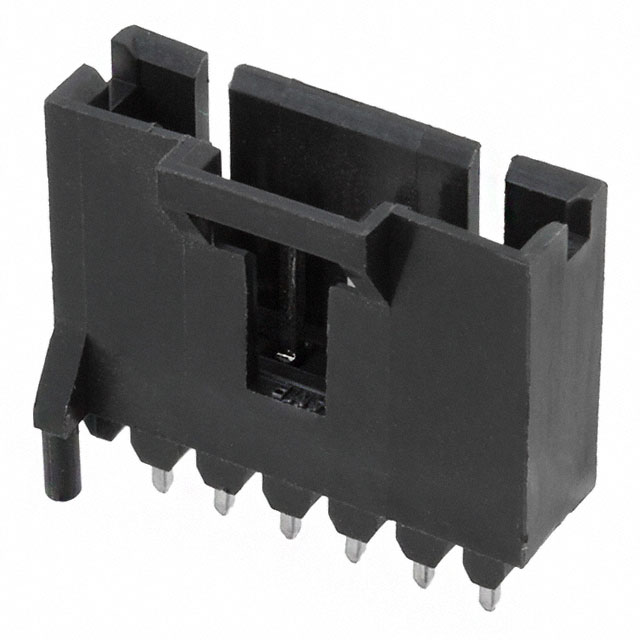

TE Connectivity AMP Connectors 104450-5	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	13.84 mm	0.545 in	Press-Fit Solder	Thermoplastic	Square	UL94 V-0	Header	Black	1	13.6 mm	0.535 in	0.13 "	3.3 mm	Male Pin	All	Brass	6	3 A	105 ░C	-65 ░C	Shrouded - 4 Wall	Board to Board Cable	Through Hole	Board Guide Keying Slot	100 çin	2.54 çm	0.1 "	2.54 mm	Tin-Lead	Latch Holder	0.23 in	5.84 mm	Tin-Lead
TE Connectivity AMP Connectors 104450-8	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	13.84 mm	0.545 in	Press-Fit Solder	Thermoplastic	Square	UL94 V-0	Header	Black	1	13.6 mm	0.535 in	0.13 "	3.3 mm	Male Pin	All	Brass	9	3 A	105 ░C	-65 ░C	Shrouded - 4 Wall	Board to Board Cable	Through Hole	Board Guide Keying Slot	100 çin	2.54 çm	0.1 "	2.54 mm	Tin-Lead	Latch Holder	0.23 in	5.84 mm	Tin-Lead
