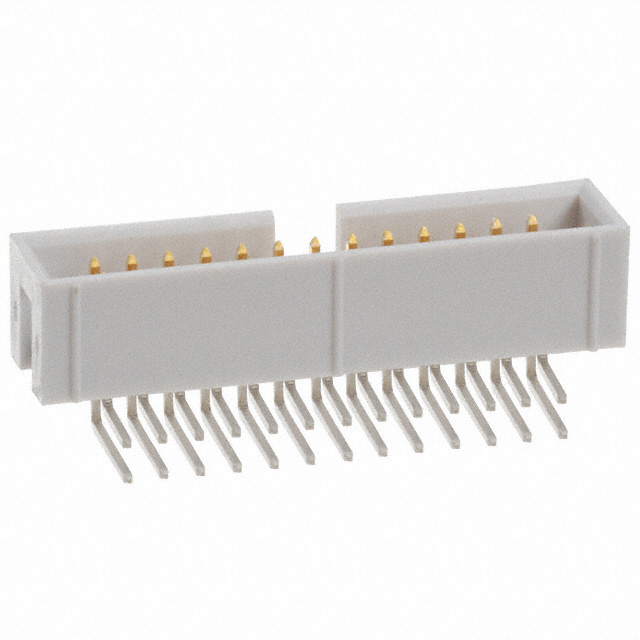

AWHW 26 Series
Manufacturer: Assmann WSW Components
Beta
⌘K
DIN 41651
| Part | Connector Type | Number of Rows [custom] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Mounting Type | Contact Length - Mating | Contact Length - Mating | Number of Positions | Insulation Height | Insulation Height | Shrouding | Insulation Color | Insulation Material | Contact Finish Thickness - Mating | Features | Operating Temperature [Min] | Operating Temperature [Max] | Style | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Current Rating (Amps) | Contact Type | Fastening Type | Termination | Number of Positions Loaded | Contact Material | Contact Finish - Mating | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Insulation Height [z] | Insulation Height [z] | Row Spacing - Mating | Row Spacing - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Header | 2 | 0.1 in | 2.54 mm | Surface Mount | 5.9 mm | 0.232 in | 26 | 0.354 in | 9 mm | Shrouded - 4 Wall | Black | Glass Filled Nylon 9T Polyamide (PA9T) | Flash | Keying Slot Pick and Place | -40 C | 105 ░C | Board to Cable/Wire | 0.1 " | 2.54 mm | UL94 V-0 | 3 A | Male Pin | Push-Pull | Solder | All | Brass | Gold | Square | |||||||||
Assmann WSW Components | Header | 2 | 0.1 in | 2.54 mm | Right Angle Through Hole | 5.7 mm | 0.224 in | 26 | Shrouded - 4 Wall | Gray | Polybutylene Terephthalate (PBT) Glass Filled | Keying Slot | -40 C | 105 ░C | Board to Cable/Wire | 0.1 " | 2.54 mm | UL94 V-0 | 3 A | Male Pin | Push-Pull | Solder | All | Brass | Gold | Square | 0.76 Ám | 30 Áin | Tin | 0.124 in | 3.15 mm | 0.352 in | 8.95 mm | |||||
 Assmann WSW Components | Header | 2 | 0.1 in | 2.54 mm | Right Angle Through Hole | 5.7 mm | 0.224 in | 26 | Shrouded - 4 Wall | Gray | Polybutylene Terephthalate (PBT) Glass Filled | Flash | Keying Slot | -40 C | 105 ░C | Board to Cable/Wire | 0.1 " | 2.54 mm | UL94 V-0 | 3 A | Male Pin | Push-Pull | Solder | All | Brass | Gold | Square | Tin | 0.124 in | 3.15 mm | 0.352 in | 8.95 mm | ||||||
 Assmann WSW Components | Header | 2 | Surface Mount | 4 mm | 0.157 in | 26 | 0.226 in | 5.74 mm | Shrouded - 4 Wall | Black | Glass Filled Nylon 9T Polyamide (PA9T) | Flash | Keying Slot Pick and Place | -40 C | 105 ░C | Board to Cable/Wire | 0.079 " | 2 mm | UL94 V-0 | 1.5 A | Male Pin | Push-Pull | Solder | All | Brass | Gold | Square | 2 mm | 0.079 in |
