78344 Series

Catalog

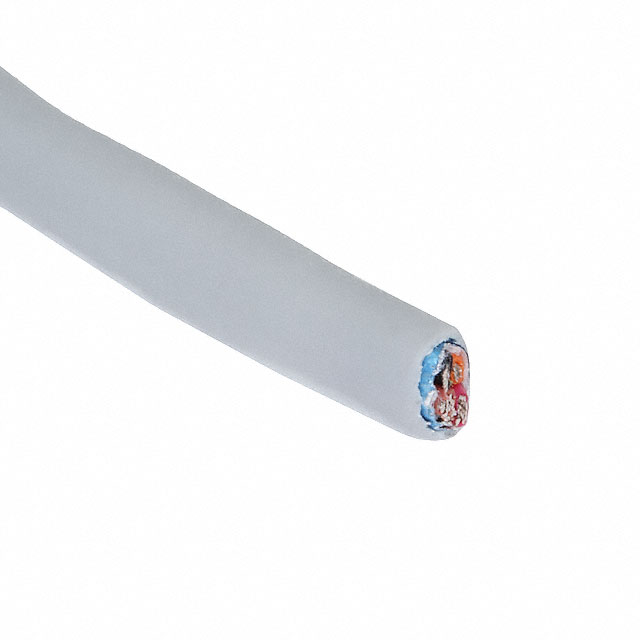

MULTICONDUCTOR CABLE, ECOCABLE® MINI, SHIELDED, 4 CONDUCTOR, 20 AWG, 0.616 MM², 1000 FT, 305 M

Part	Shield Material	Shield Coverage	Conductor Material	Jacket (Insulation) Diameter [diameter]	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Wire Gauge	Features	Voltage	Number of Conductors	Ratings	Shield Type	Conductor Insulation	Jacket Color	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Cable Type	Length [x]	Length [x]
ALPHA WIRE 78344 SL001	Copper Tinned Suprashield®	100 %	Copper Tinned	0.196 " 4.98 mm	304.8 m	1000 ft	19	32 AWG	80 °C	-40 C	Polyphenylene Ether Modified (mPPE)	20 AWG	Biological Compatibility Drain Wire Rip Cord	300 VDC	4	ISO 10993 UL Style 21460	Braid Foil	Polyphenylene Ether Modified (mPPE)	Slate	0.381 mm	0.015 in	Multi-Conductor
ALPHA WIRE 78344 SL199	Copper Tinned Suprashield®	100 %	Copper Tinned	0.196 " 4.98 mm			19	32 AWG	80 °C	-40 C	Polyphenylene Ether Modified (mPPE)	20 AWG	Biological Compatibility Drain Wire Rip Cord	300 VDC	4	ISO 10993 UL Style 21460	Braid Foil	Polyphenylene Ether Modified (mPPE)	Slate	0.381 mm	0.015 in	Multi-Conductor	300 mm	1 '
