IPCV Series

Catalog

PLUGGABLE TERMINAL BLOCKS 8 POS 7.62MM PITCH THRU HOLE INVERT HDR

Part	Housing Material	Insulation Height	Insulation Height	Contact Tail Length [x]	Contact Tail Length [x]	Material Flammability Rating	Type	Positions Per Level	Pitch	Pitch	Contact Mating Finish	Color	Number of Positions	Current - UL	Termination Style	Header Orientation	Number of Levels	Mounting Type	Features	Current - IEC	Voltage - IEC	Voltage - UL	Contact Tail Length	Contact Tail Length

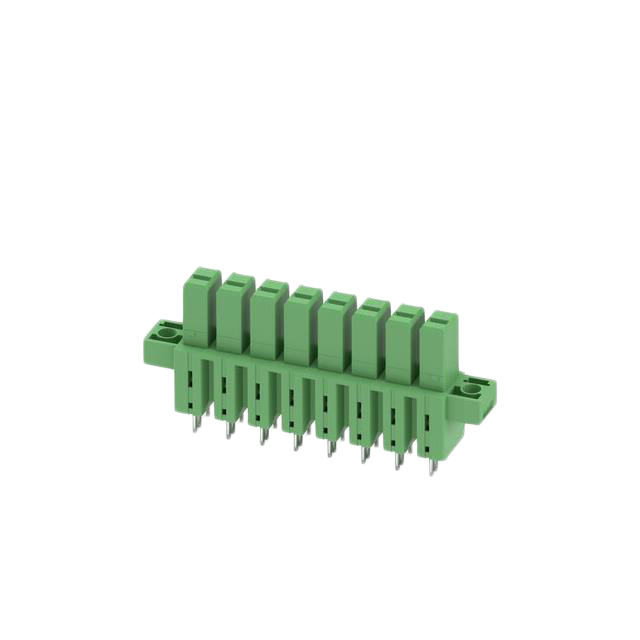

Phoenix Contact 1708996	Polyamide (PA) Nylon	30.1 mm	1.185 in	5 mm	0.197 in	UL94 V-0	Header Female Sockets	8	0.3 in	7.62 mm	Tin	Green	8	5 A	Solder	Vertical	1	Through Hole	Mating Flange	41 A	1 kV
Phoenix Contact 1708844							Header Female Sockets	4	0.3 in	7.62 mm	Tin	Green	4	5 A	Solder	Vertical	1	Through Hole		41 A	1 kV
Phoenix Contact 1969755							Header Female Sockets	8	0.4 in	10.16 mm	Silver	Green	8	66 A	Solder	Vertical	1	Through Hole		76 A	1 kV	300 V

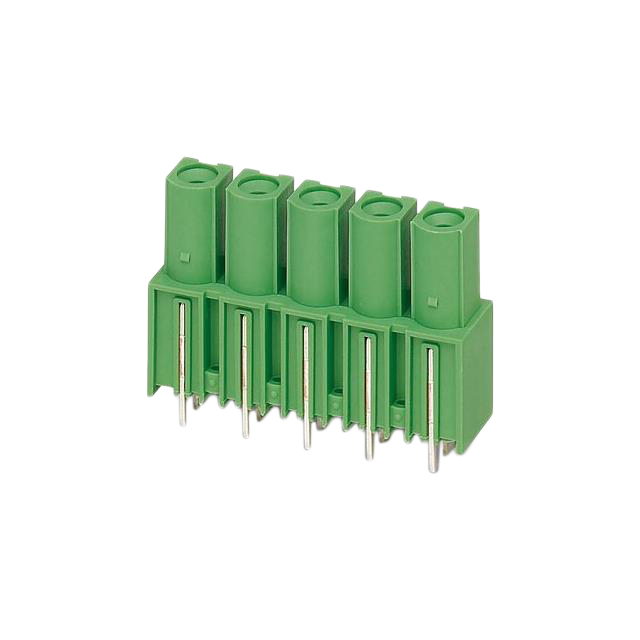

Phoenix Contact 1969726	Polyamide (PA) Nylon	32.1 mm	1.264 in			UL94 V-0	Header Female Sockets	5	0.4 in	10.16 mm	Silver	Green	5	66 A	Solder	Vertical	1	Through Hole		76 A	1 kV	300 V	0.157 in	4 mm
Phoenix Contact 1708828	Polyamide (PA) Nylon	30.1 mm	1.185 in	5 mm	0.197 in	UL94 V-0	Header Female Sockets	2	0.3 in	7.62 mm	Tin	Green	2	5 A	Solder	Vertical	1	Through Hole		41 A	1 kV

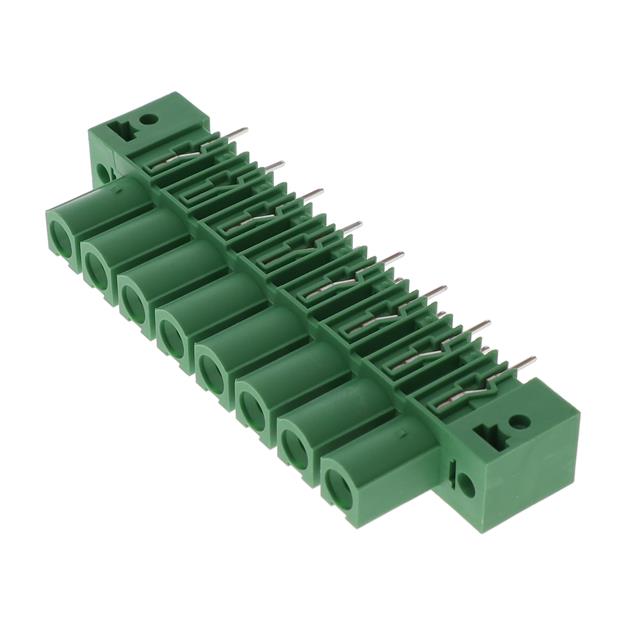

Phoenix Contact 1969836	Polyamide (PA) Nylon	32.1 mm	1.264 in			UL94 V-0	Header Female Sockets	8	0.4 in	10.16 mm	Silver	Green	8	66 A	Solder	Vertical	1	Through Hole	Mating and Mounting Flange	76 A	1 kV	300 V	0.157 in	4 mm
