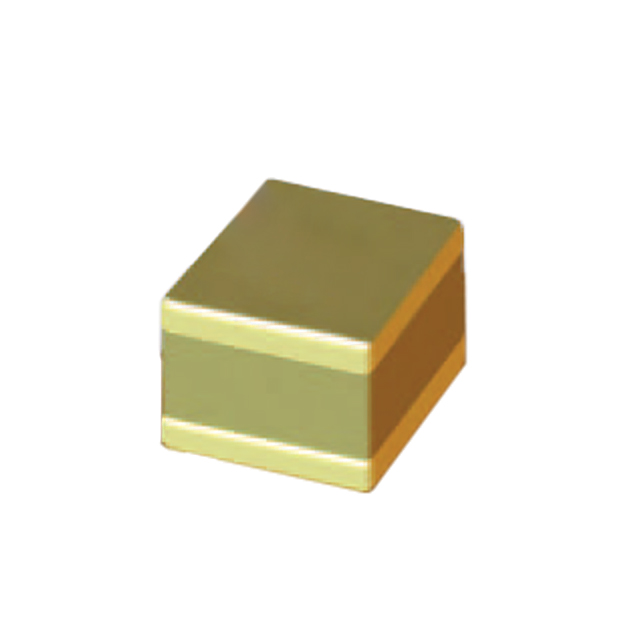

V30BZ Series
Manufacturer: Knowles Syfer
Beta
⌘K
CAP CER 4700PF 100V X7R NONS SMD
| Part | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Features | Voltage - Rated | Thickness (Max) [Max] | Thickness (Max) | Applications | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Capacitance | Temperature Coefficient | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Knowles Syfer | 0303 (0808 Metric) | -55 C | 125 °C | 20 % | Epoxy Mountable Single Layer | 100 V | 0.025 in | 0.64 mm | Bypass Decoupling High Frequency Microwave RF | 0.03 " | 0.76 mm | 0.03 " | 0.76 mm | 0.0047 µF | X7R | Epoxy SLCC Surface Mount |
Knowles Syfer | 0303 (0808 Metric) | -55 C | 125 °C | 20 % | Epoxy Mountable Single Layer | 200 VDC | 0.025 in | 0.64 mm | Bypass Decoupling High Frequency Microwave RF | 0.03 " | 0.76 mm | 0.03 " | 0.76 mm | 0.001 µF | X7R | Epoxy SLCC Surface Mount |
Knowles Syfer | 0303 (0808 Metric) | -55 C | 125 °C | 20 % | Epoxy Mountable Single Layer | 100 V | 0.025 in | 0.64 mm | Bypass Decoupling High Frequency Microwave RF | 0.03 " | 0.76 mm | 0.03 " | 0.76 mm | 6800 pF | X7R | Epoxy SLCC Surface Mount |
