AA15S Series

Catalog

AC/DC CONVERTER 12V 15W

Part	Line Regulation	Weight	Weight	Load Regulation	Features	Number of Outputs	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	Applications	Package / Case	Power (Watts)	Type	Current - Output (Max) [Max]	Standard Number	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Current - Output 1	Voltage - Isolation
Delta Electronics AA15S1200A	0.5 %	161.93 g	0.357 lb	0.5 %	Universal Input	1	CE cUL UL	0.77 in	2.91 in	74 mm	54 mm	19.5 mm	2.13 in	Through Hole	ITE (Commercial)	7-DIP Module 4 Leads	15 W	Enclosed	1.25 A	60950-1	12 V	70 °C	-25 °C	79 %

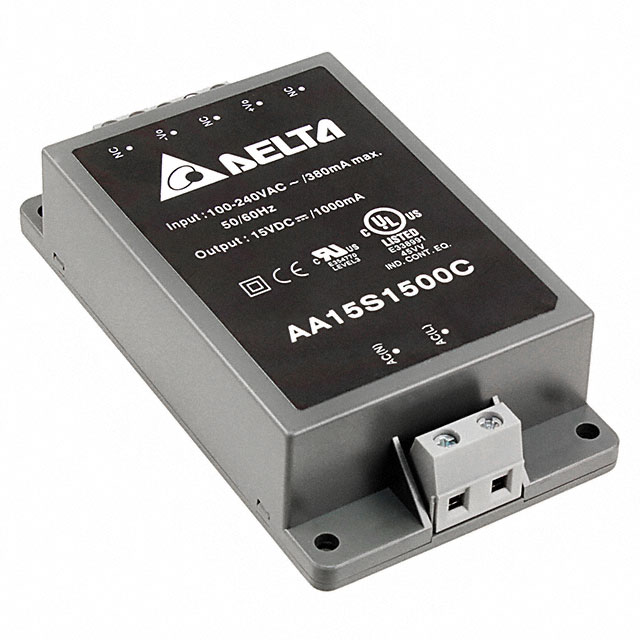

Delta Electronics AA15S1200C					DC Input Capable Universal Input	1	CE	0.77 in	2.91 in	74 mm	54 mm	19.5 mm	2.13 in	Chassis Mount	ITE (Commercial)		15 W	Enclosed			12 V	70 °C	-25 °C	79 %	1.25 A	3000 V
Delta Electronics AA15S2400C					DC Input Capable Universal Input	1	CE	0.77 in	2.91 in	74 mm	54 mm	19.5 mm	2.13 in	Chassis Mount	ITE (Commercial)		15 W	Enclosed			24 V	70 °C	-25 °C	79 %	625 mA	3000 V
