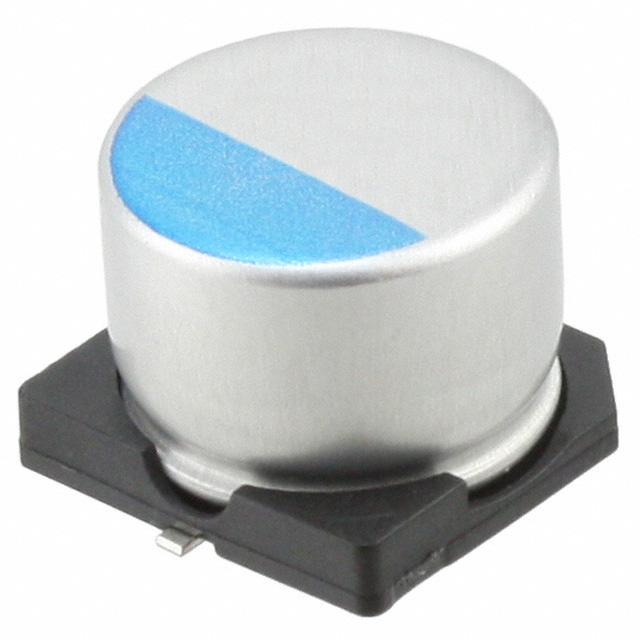

PXE Series
Manufacturer: Chemi-Con
Beta
⌘K
ALUMINUM ORGANIC POLYMER CAPACITORS 820UF 6.3 VOLT
| Part | Applications | Ripple Current @ High Frequency | Lifetime @ Temp. | Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | Capacitance | Mounting Type | Type | ESR (Equivalent Series Resistance) | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Package / Case | Size / Dimension [diameter] | Size / Dimension [diameter] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Chemi-Con | General Purpose | 4.3 A | 2000 Hrs | 20 % | 0.303 in | 7.7 mm | -55 C | 105 ░C | 6.3 VDC | 820 µF | Surface Mount | Polymer | 14 mOhms | 0.406 " | 0.406 in | 10.3 mm | 10.3 mm | Radial Can - SMD | 0.394 in | 10 mm | |
 Chemi-Con | General Purpose | 2.39 A | 15000 Hrs | 20 % | 0.228 " | -55 C | 105 ░C | 16 V | 68 µF | Surface Mount | Polymer | 28 mOhm | 0.26 in | 0.26 in | 6.6 mm | 6.6 mm | Radial Can - SMD | 0.248 " | 6.3 mm | 5.8 mm |
