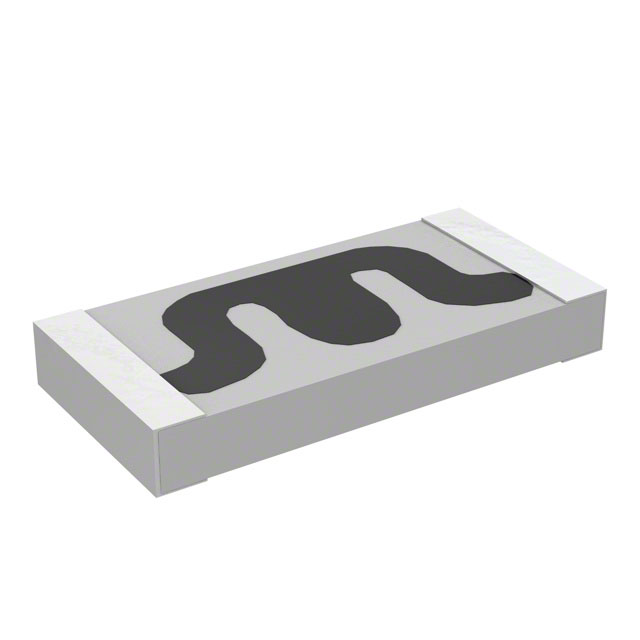

HVC Series

Manufacturer: Ohmite

Catalog

THICK FILM RESISTORS - SMD 1/4W 1G OHM 5%

Part	Tolerance	Package / Case	Supplier Device Package	Composition	Number of Terminations [custom]	Resistance	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Ohmite HVC1206Z1007JET	5 %	1206 (3216 Metric)	1206	Thick Film	2	1 GOhms	High Voltage	1.5 mm	3.2 mm	0.126 in	0.059 "	0.55 mm	0.022 in	250 ppm/°C	155 C	-55 C	0.25 W	0.25 W

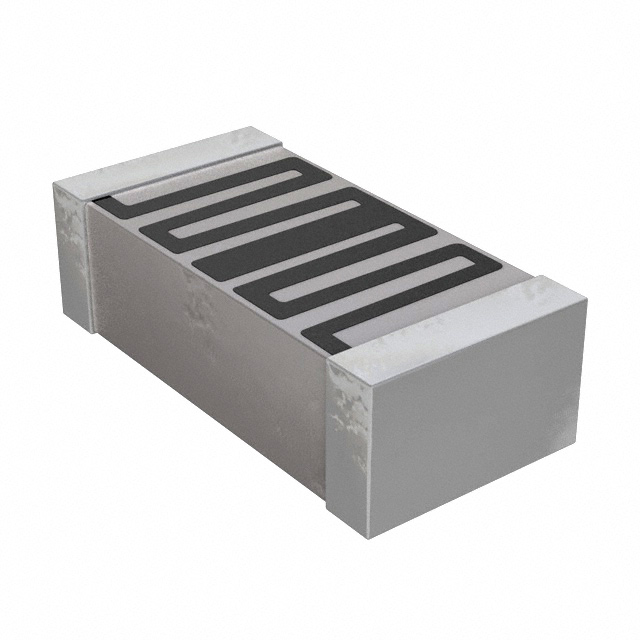

Ohmite HVC0402T1005JET	5 %	0402 (1005 Metric)	0402	Thick Film	2	10 MOhms	High Voltage	0.5 mm	1.04 mm					100 ppm/°C	155 C	-55 C	50 mW	0.05 W	0.02 in	0.041 "	0.35 mm	0.014 "
Ohmite HVC1206T5005JET	5 %	1206 (3216 Metric)	1206	Thick Film	2	50 MOhms	High Voltage	1.5 mm	3.2 mm	0.126 in	0.059 "	0.55 mm	0.022 in	100 ppm/°C	155 C	-55 C	0.25 W	0.25 W
