895-017 Series
Manufacturer: EDAC Inc.
Beta
⌘K

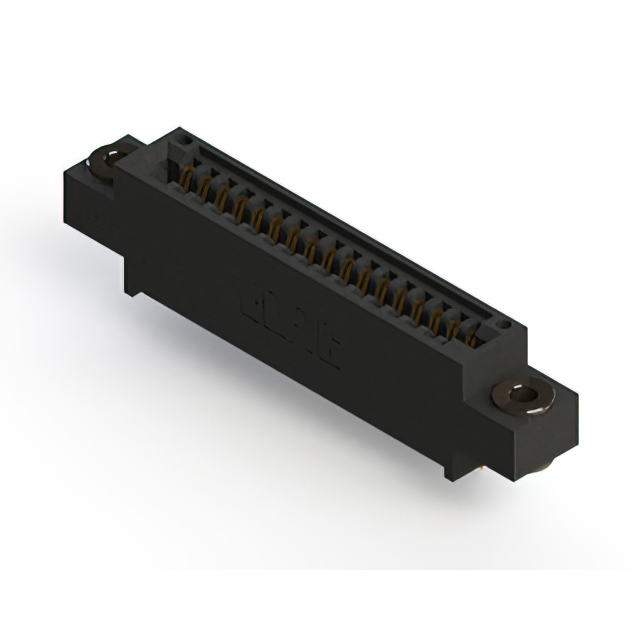

CONN EDGE SINGLE FML 17POS 0.100
| Part | Termination Rows | Material - Insulation | Contact Material | Number of Positions/Bay/Row [custom] | Color | Card Type | Number of Rows | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Pitch | Pitch | Gender | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | 17 | Black | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.1 " | 2.54 mm | Female | Single | 125 °C | -40 C | Gold | Solder | 0.25 Ám | 10 Áin | Cantilever | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | 17 | Black | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | 0.1 " | 2.54 mm | Female | Single | 125 °C | -40 C | Gold | Solder | 0.25 Ám | 10 Áin | Cantilever | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | 17 | Black | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.1 " | 2.54 mm | Female | Single | 125 °C | -40 C | Gold | Wire Wrap | 0.25 Ám | 10 Áin | Cantilever | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | 17 | Black | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.1 " | 2.54 mm | Female | Single | 125 °C | -40 C | Gold | Wire Wrap | 0.25 Ám | 10 Áin | Cantilever | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | 17 | Black | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.1 " | 2.54 mm | Female | Single | 125 °C | -40 C | Gold | Solder | 0.25 Ám | 10 Áin | Cantilever | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 " |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | 17 | Black | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.1 " | 2.54 mm | Female | Single | 125 °C | -40 C | Gold | Wire Wrap | 0.25 Ám | 10 Áin | Cantilever | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | 17 | Black | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.1 " | 2.54 mm | Female | Single | 125 °C | -40 C | Gold | Wire Wrap | 0.25 Ám | 10 Áin | Cantilever | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | 17 | Black | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.1 " | 2.54 mm | Female | Single | 125 °C | -40 C | Gold | Wire Wrap | 0.25 Ám | 10 Áin | Cantilever | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | 17 | Black | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | 0.1 " | 2.54 mm | Female | Single | 125 °C | -40 C | Gold | Solder | 0.25 Ám | 10 Áin | Cantilever | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | 17 | Black | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.1 " | 2.54 mm | Female | Single | 125 °C | -40 C | Gold | Solder | 0.25 Ám | 10 Áin | Cantilever | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " |
