osisense Series

Catalog

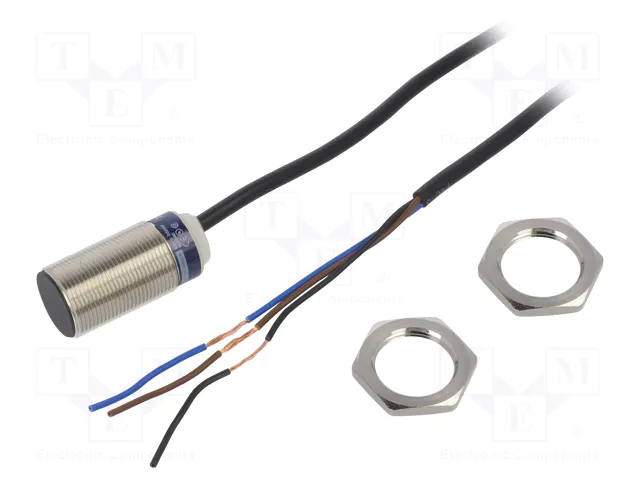

SENSOR: INDUCTIVE; OUT: PNP / NO; 0÷10MM; 12÷48VDC; M30; 2M; IP67

Part	Indicator	Material - Body	Package / Case	Output Type	Output Type	Sensor Type	Ingress Protection	Termination Style	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Distance	Sensing Distance	Voltage - Supply [Min]	Voltage - Supply [Max]	Light Source	Connection Method	Sensing Method	Output Configuration	Cable Length	Cable Length
SCHNEIDER ELECTRIC XS530BLPAL2	LED	Nickel-Plated Brass	Cylinder Threaded - M30	3	NO	Inductive	IP68	Cable	Unshielded	-25 °C	70 °C	10 mm	0.394 in
SCHNEIDER ELECTRIC XUK0AKSAL2T							IP65			-25 °C	55 °C	30 m	98.43 ft	12 VDC	24 V	Infrared	Cable	Through-Beam	NPN-NC/NO	78.74 "	2 m
SCHNEIDER ELECTRIC XS630B1NAL2	LED	Nickel-Plated Brass	Cylinder Threaded - M30		3-Wire NPN-NO	Inductive	IP68 IP69K	Cable Leads	Unshielded	-25 °C	70 °C	15 mm	0.591 in
SCHNEIDER ELECTRIC XUB0SPSNL2							IP65			-25 °C	55 °C	2000 cm	787.402 in	12 VDC	24 V	Infrared	Cable		PNP-NC/NO	78.74 "	2 m
SCHNEIDER ELECTRIC XS512B1DAM12	LED	Nickel-Plated Brass	Cylinder Threaded - M12		2-Wire NO	Inductive	IP67 IP69K	Connector	Unshielded	-25 °C	70 °C	2 mm	0.079 in
SCHNEIDER ELECTRIC XS530B1DAM12	LED	Nickel-Plated Brass	Cylinder Threaded - M30		2-Wire NO	Inductive	IP67	Connector	Unshielded	-25 °C	70 °C	10 mm	0.394 in
SCHNEIDER ELECTRIC XS508B1NAM8	LED	Metal	Cylinder Threaded - M8		3-Wire NPN-NO	Inductive	IP67	Connector	Shielded	-25 °C	70 °C	1.5 mm	0.059 in	12 VDC	24 V
SCHNEIDER ELECTRIC XS530B1NAM12	LED	Nickel-Plated Brass	Cylinder Threaded - M30		3-Wire NPN-NO	Inductive	IP67	Connector	Unshielded	-25 °C	70 °C	10 mm	0.394 in	12 VDC	24 V
SCHNEIDER ELECTRIC XS518B1NAL2	LED	Nickel-Plated Brass	Cylinder Threaded - M18		3-Wire NPN-NO	Inductive	IP68 IP69K	Cable Leads	Unshielded	-25 °C	70 °C	5 mm	0.197 in	12 VDC	24 V
SCHNEIDER ELECTRIC XS508B1DAM12	LED	Stainless Steel	Cylinder Threaded - M8		2-Wire NO	Inductive	IP67	Connector	Unshielded	-25 °C	70 °C	1.5 mm	0.059 in
