1415001 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

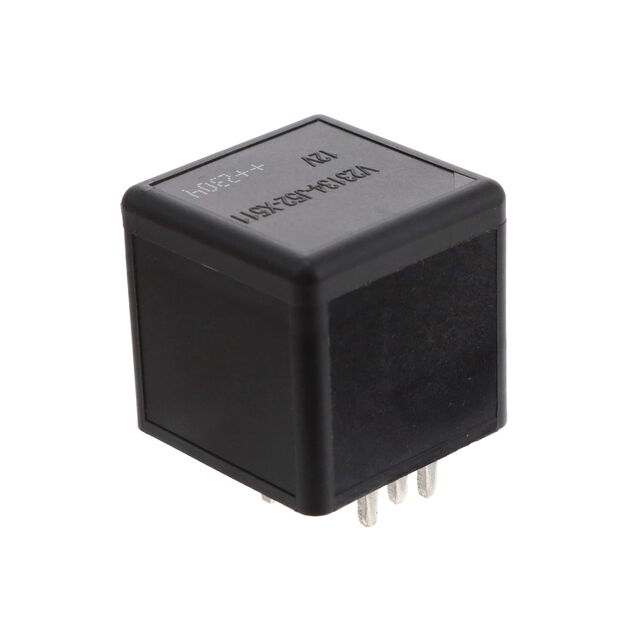

RELAY GEN PURPOSE SPST 70A 12V
| Part | Contact Material | Coil Resistance | Coil Power | Termination Style | Mounting Type | Must Release Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Operate Time | Release Time | Must Operate Voltage | Contact Rating (Current) | Coil Current | Coil Type | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Silver Alloy | 90 Ohms | 1.6 W | PC Pin | Through Hole | 1.6 VDC | 125 °C | -40 C | SPST-NO (1 Form A) | 7 ms | 2 ms | 7.2 VDC | 70 A | 133.3 mA | Non Latching | 12 VDC |
