CMD69423 Series

Antennas Omni,Dband,300mm,NF 698-4200MHz,LoPIM

Manufacturer: TE Connectivity AMP Connectors

Catalog

Antennas Omni,Dband,300mm,NF 698-4200MHz,LoPIM

Catalog

Antennas Omni,Dband,300mm,NF 698-4200MHz,LoPIM

Part	Height (Max) [x]	Height (Max) [x]	Frequency (Center/Band)	Termination	Gain	Frequency Group	Number of Bands	Applications	Features	Frequency Range [Min]	Frequency Range [Max]	Power - Max [Max]	Mounting Type	Antenna Type	RF Family/Standard	VSWR

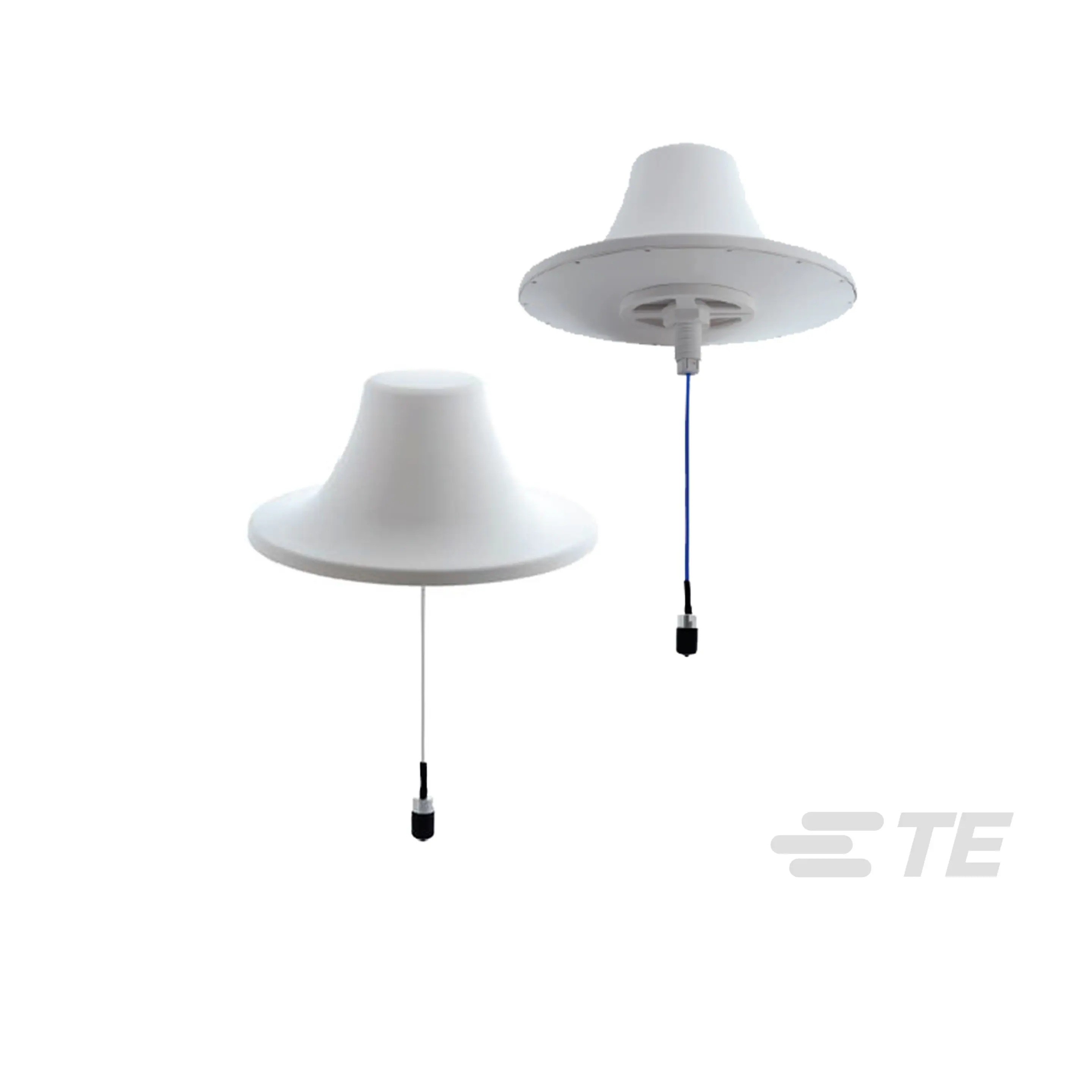

TE Connectivity AMP Connectors CMD69423P-30NF	43.5 mm	1.713 in	1.45 GHz 1.935 GHz 2.5 GHz 3.75 GHz 752 MHz 892 MHz	N Type Female	3.9 dBi 5.3 dBi 6 dBi 6.1 dBi 6.7 dBi 6.8 dBi	Wide Band	6	5G	Cable - 300mm	1.35 GHz 1.69 GHz 2.3 GHz 3.3 GHz 698 MHz 824 MHz	2.18 GHz 2.7 GHz 4.2 GHz 806 MHz 960 MHz 1550 MHz	50 W	Panel Mount	Flat Panel	Cellular	2
TE Connectivity AMP Connectors CMD69423P-B30D43F	43.5 mm	1.713 in	1.45 GHz 1.935 GHz 2.5 GHz 3.75 GHz 752 MHz 892 MHz	4.3/10 Female	3.9 dBi 5.3 dBi 6 dBi 6.1 dBi 6.7 dBi 6.8 dBi	Wide Band	6	5G GPRS	Cable - 300mm	1.35 GHz 1.69 GHz 2.3 GHz 3.3 GHz 698 MHz 824 MHz	2.18 GHz 2.7 GHz 4.2 GHz 806 MHz 960 MHz 1550 MHz	50 W	Panel Mount	Flat Panel	Cellular	2
TE Connectivity AMP Connectors CMD69423P-30NF	43.5 mm	1.713 in	1.45 GHz 1.935 GHz 2.5 GHz 3.75 GHz 752 MHz 892 MHz	N Type Female	3.9 dBi 5.3 dBi 6 dBi 6.1 dBi 6.7 dBi 6.8 dBi	Wide Band	6	5G	Cable - 300mm	1.35 GHz 1.69 GHz 2.3 GHz 3.3 GHz 698 MHz 824 MHz	2.18 GHz 2.7 GHz 4.2 GHz 806 MHz 960 MHz 1550 MHz	50 W	Panel Mount	Flat Panel	Cellular	2
TE Connectivity AMP Connectors CMD69423P-B30D43F	43.5 mm	1.713 in	1.45 GHz 1.935 GHz 2.5 GHz 3.75 GHz 752 MHz 892 MHz	4.3/10 Female	3.9 dBi 5.3 dBi 6 dBi 6.1 dBi 6.7 dBi 6.8 dBi	Wide Band	6	5G GPRS	Cable - 300mm	1.35 GHz 1.69 GHz 2.3 GHz 3.3 GHz 698 MHz 824 MHz	2.18 GHz 2.7 GHz 4.2 GHz 806 MHz 960 MHz 1550 MHz	50 W	Panel Mount	Flat Panel	Cellular	2
