MDP Series
Manufacturer: Adam Tech
Beta
⌘K
STANDARD CIRCULAR CONNECTOR CONN PLUG MALE MINI DIN 5P SILV
| Part | Applications | Contact Material | Backshell Material, Plating | Shielding | Insert Material | Contact Finish - Mating | Mounting Type | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Cable Opening | Cable Opening | Fastening Type | Shell Material | Color | Features | Shell Size - Insert | Shell Finish | Voltage Rating | Material Flammability Rating | Number of Positions | Termination | Connector Type | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

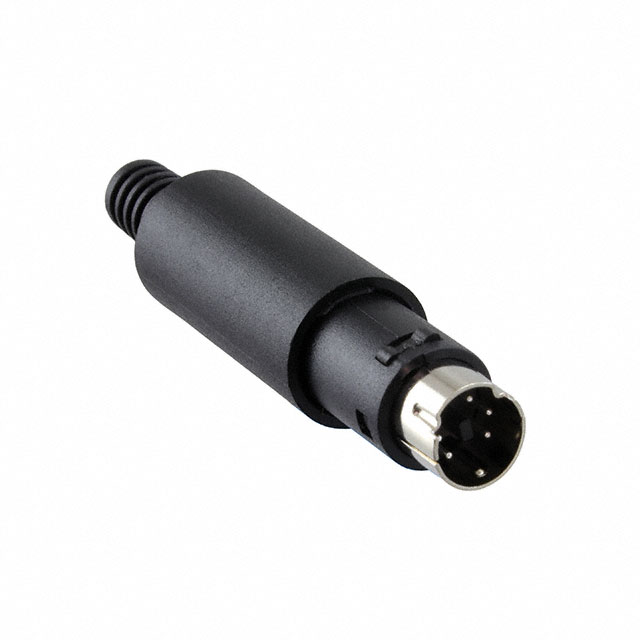

 Adam Tech | Audio Video | Brass | Ethylene Vinyl Acetate (EVA) | Shielded Unshielded | Polyamide (PA6) Nylon 6 | Silver | Free Hanging (In-Line) | Keyed | -25 °C | 70 °C | 0.197 in | 5 mm | Push-Pull | Polyacrylonitrile Butadiene Styrene (ABS) | Black | Backshell Strain Relief | Mini DIN | Tin | 12 VDC 100 VAC | UL94 V-0 | 5 | Solder | Plug Male Pins | Plastic |

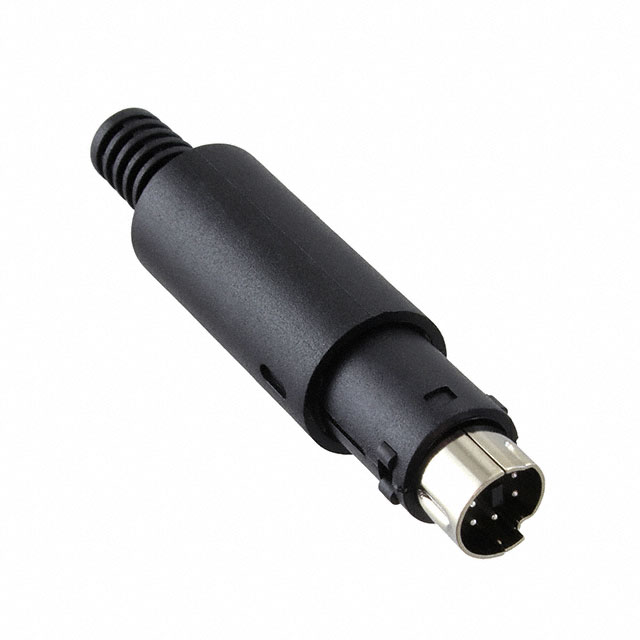

 Adam Tech | Audio Video | Brass | Ethylene Vinyl Acetate (EVA) | Shielded Unshielded | Polyamide (PA6) Nylon 6 | Silver | Free Hanging (In-Line) | Keyed | -25 °C | 70 °C | 0.197 in | 5 mm | Push-Pull | Polyacrylonitrile Butadiene Styrene (ABS) | Black | Backshell Strain Relief | Mini DIN | Tin | 12 VDC 100 VAC | UL94 V-0 | 7 | Solder | Plug Male Pins | Plastic |

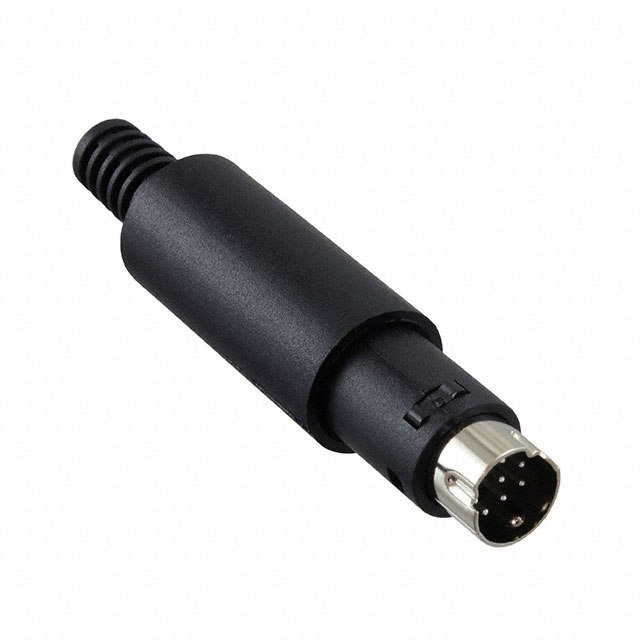

 Adam Tech | Audio Video | Brass | Ethylene Vinyl Acetate (EVA) | Shielded Unshielded | Polyamide (PA6) Nylon 6 | Silver | Free Hanging (In-Line) | Keyed | -25 °C | 70 °C | 0.197 in | 5 mm | Push-Pull | Polyacrylonitrile Butadiene Styrene (ABS) | Black | Backshell Strain Relief | Mini DIN | Tin | 12 VDC 100 VAC | UL94 V-0 | 8 | Solder | Plug Male Pins | Plastic |

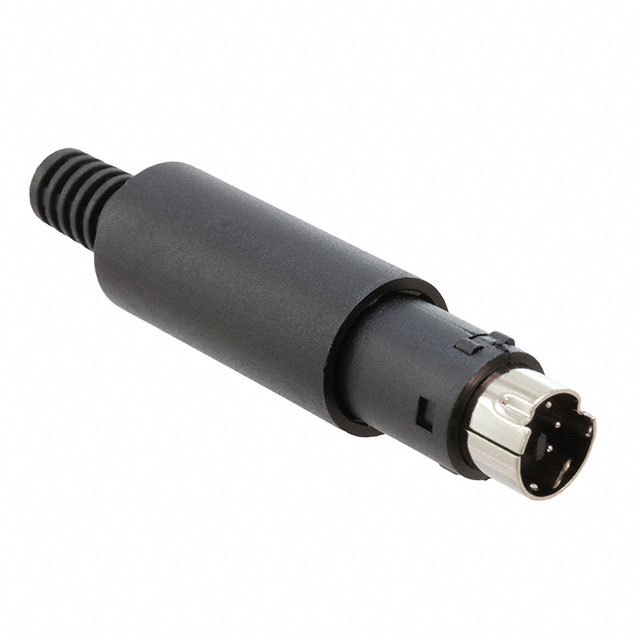

 Adam Tech | Audio Video | Brass | Ethylene Vinyl Acetate (EVA) | Shielded Unshielded | Polyamide (PA6) Nylon 6 | Silver | Free Hanging (In-Line) | Keyed | -25 °C | 70 °C | 0.197 in | 5 mm | Push-Pull | Polyacrylonitrile Butadiene Styrene (ABS) | Black | Backshell Strain Relief | Mini DIN | Tin | 12 VDC 100 VAC | UL94 V-0 | 6 | Solder | Plug Male Pins | Plastic |
