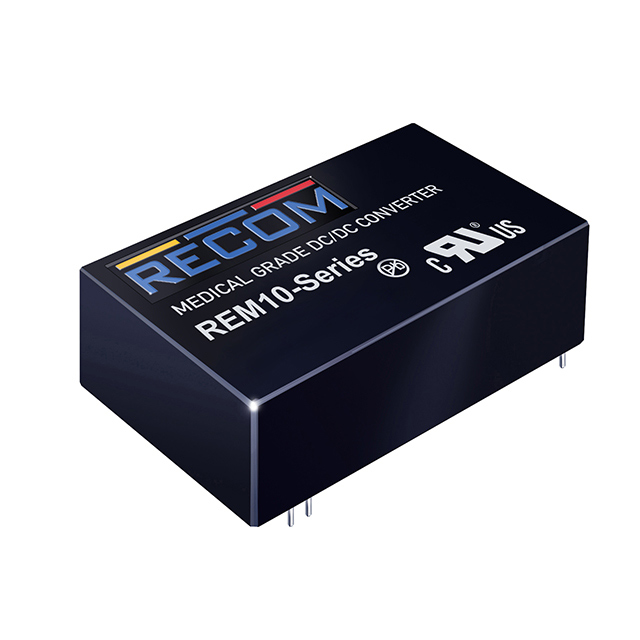

REM10-S_D(W) Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 10W 9-36VIN +/-5VOUT DIP24

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max)	Mounting Type	Package / Case	Applications	Number of Outputs	Features	Voltage - Input (Min) [Min]	Voltage - Output 1	Efficiency	Voltage - Input (Max) [Max]	Voltage - Isolation	Control Features	Power (Watts)	Type	Voltage - Output 2	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Recom Power REM10-2405DW/C	-40 C	105 ░C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1 A	Through Hole	24-DIP Module 6 Leads	ITE (Commercial) Medical	2	OCP OVP Remote On/Off SCP UVLO	9 V	5 V	89 %	36 V	5000 V	Active Low Enable	10 W	Isolated Module	-5 V
Recom Power REM10-4812SW/A/CTRL	-40 C	105 ░C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in		Through Hole	24-DIP Module 6 Leads	ITE (Commercial) Medical	1	OCP OVP Remote On/Off SCP UVLO	18 V	12 V	89 %	75 V	5000 V	Active Low Enable	10 W	Isolated Module		830 mA
Recom Power REM10-2412SW/A	-40 C	105 ░C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in		Through Hole	24-DIP Module 5 Leads	ITE (Commercial) Medical	1	OCP OVP Remote On/Off SCP UVLO	9 V	12 V	89 %	36 V	5000 V	Active Low Enable	10 W	Isolated Module		830 mA
Recom Power REM10-4812DW/A/CTRL	-40 C	105 ░C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in		Through Hole	24-DIP Module 7 Leads	ITE (Commercial) Medical	2	OCP OVP Remote On/Off SCP UVLO	18 V	12 V	88 %	75 V	5000 V	Active Low Enable	10 W	Isolated Module	-12 V	416 mA	416 mA
Recom Power REM10-243.3S/A	-40 C	105 ░C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in		Through Hole	24-DIP Module 5 Leads	ITE (Commercial) Medical	1	OCP OVP Remote On/Off SCP UVLO	18 V	3.3 V	83 %	36 V	5000 V	Active Low Enable	10 W	Isolated Module		2.5 A
Recom Power REM10-2412DW/A	-40 C	105 ░C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in		Through Hole	24-DIP Module 6 Leads	ITE (Commercial) Medical	2	OCP OVP Remote On/Off SCP UVLO	9 V	12 V	89 %	36 V	5000 V	Active Low Enable	10 W	Isolated Module	-12 V	416 mA	416 mA
Recom Power REM10-4805DW/C	-40 C	105 ░C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1 A	Through Hole	24-DIP Module 6 Leads	ITE (Commercial) Medical	2	OCP OVP Remote On/Off SCP UVLO	18 V	5 V	88 %	75 V	5000 V	Active Low Enable	10 W	Isolated Module	-5 V
Recom Power REM10-1215D/A	-40 C	105 ░C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	333 mA	Through Hole	24-DIP Module 6 Leads	ITE (Commercial) Medical	2	OCP OVP Remote On/Off SCP UVLO	9 V	15 V	88 %	18 V	5000 V	Active Low Enable	10 W	Isolated Module	-15 V
Recom Power REM10-2405S/C	-40 C	105 ░C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in		Through Hole	24-DIP Module 5 Leads	ITE (Commercial) Medical	1	OCP OVP Remote On/Off SCP UVLO	18 V	5 V	86.5 %	36 V	5000 V	Active Low Enable	10 W	Isolated Module		2 A
Recom Power REM10-2415S/A/CTRL	-40 C	105 ░C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in		Through Hole	24-DIP Module 6 Leads	ITE (Commercial) Medical	1	OCP OVP Remote On/Off SCP UVLO	18 V	15 V	89 %	36 V	5000 V	Active Low Enable	10 W	Isolated Module		670 mA
