CMM-2718 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

MIC MEMS ANALOG OMNI -38DB

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [z]	Height (Max) [z]	Voltage Range [Max]	Voltage Range [Min]	Frequency Range [Min]	Frequency Range [Max]	S/N Ratio	Port Location	Output Type	Direction	Type	Termination	Voltage - Rated	Current - Supply	Shape	Sensitivity
Same Sky (Formerly CUI Devices) CMM-2718AB-383161-TR	0.073 "	2.75 mm	1.85 mm	0.108 "	0.037 in	0.95 mm	3.6 V	1.6 V	100 Hz	10 kHz	61 dB	Bottom	Analog	Omnidirectional	MEMS (Silicon)	Solder Pads	2 VDC	160 µA	Rectangular

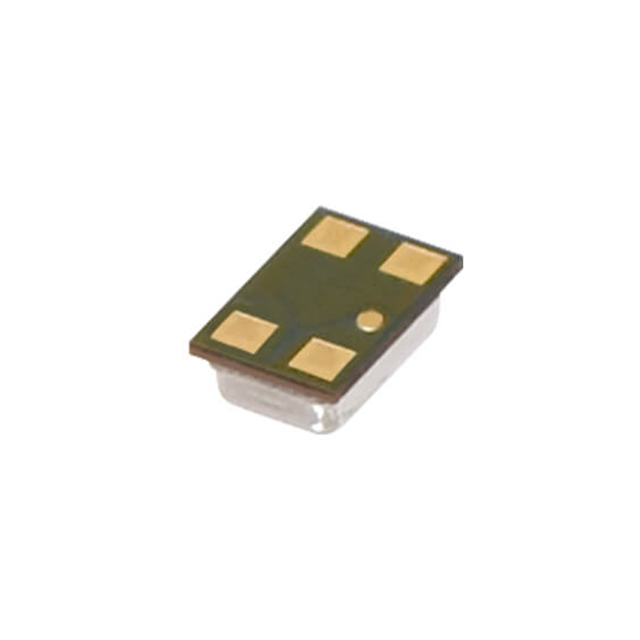

Same Sky (Formerly CUI Devices) CMM-2718AT-42116-TR	0.073 "	2.75 mm	1.85 mm	0.108 "	0.037 in	0.95 mm	3.6 V	1.6 V	100 Hz	10 kHz	57 dB	Top	Analog	Omnidirectional	MEMS (Silicon)	Solder Pads	2 VDC	160 µA	Rectangular	-42 dB

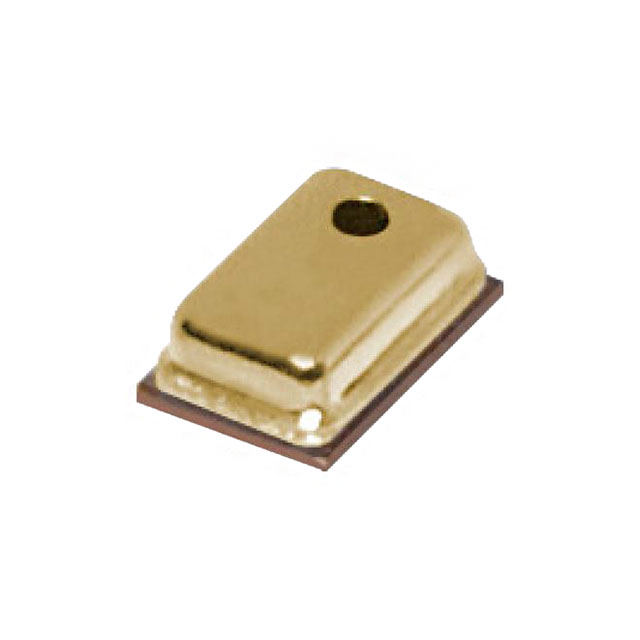

Same Sky (Formerly CUI Devices) CMM-2718AT-42108-TR	0.073 "	2.75 mm	1.85 mm	0.108 "	0.037 in	0.95 mm	3.6 V	1.6 V	100 Hz	10 kHz	60 dB	Top	Analog	Omnidirectional	MEMS (Silicon)	Solder Pads	2 VDC	80 µA	Rectangular	-43 dB
Same Sky (Formerly CUI Devices) CMM-2718AB-383161-TR	0.073 "	2.75 mm	1.85 mm	0.108 "	0.037 in	0.95 mm	3.6 V	1.6 V	100 Hz	10 kHz	61 dB	Bottom	Analog	Omnidirectional	MEMS (Silicon)	Solder Pads	2 VDC	160 µA	Rectangular
Same Sky (Formerly CUI Devices) CMM-2718AT-42116-TR	0.073 "	2.75 mm	1.85 mm	0.108 "	0.037 in	0.95 mm	3.6 V	1.6 V	100 Hz	10 kHz	57 dB	Top	Analog	Omnidirectional	MEMS (Silicon)	Solder Pads	2 VDC	160 µA	Rectangular	-42 dB
Same Sky (Formerly CUI Devices) CMM-2718AT-42308-TR	0.073 "	2.75 mm	1.85 mm	0.108 "	0.037 in	0.95 mm	3.6 V	1.6 V	100 Hz	10 kHz	60 dB	Top	Analog	Omnidirectional	MEMS (Silicon)	Solder Pads	2 VDC	80 µA	Rectangular	-42 dB
Same Sky (Formerly CUI Devices) CMM-2718AT-42308-TR	0.073 "	2.75 mm	1.85 mm	0.108 "	0.037 in	0.95 mm	3.6 V	1.6 V	100 Hz	10 kHz	60 dB	Top	Analog	Omnidirectional	MEMS (Silicon)	Solder Pads	2 VDC	80 µA	Rectangular	-42 dB
