470315YY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

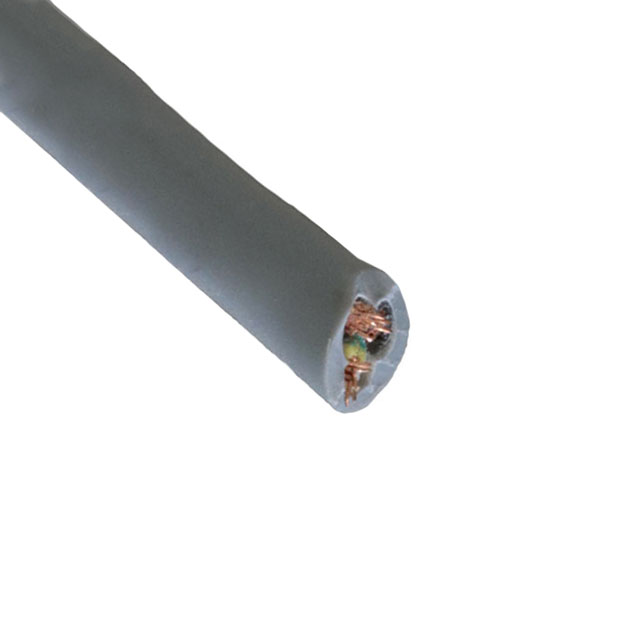

CABLE 3COND 15AWG GRAY 1M
| Part | Length | Length | Conductor Insulation | Jacket Color | Conductor Material | Jacket (Insulation) Material | Voltage | Wire Gauge | Length [x] | Length [x] | Number of Conductors | Features | Usage | Conductor Strand [custom] | Conductor Strand [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 1 m 10 m 20 m | 3.28 ft 32.81 ft 65.62 ft | Poly-Vinyl Chloride (PVC) | Gray | Copper Bare | Poly-Vinyl Chloride (PVC) | 300 VDC | 15 AWG | 98.43 ft | 30 m | 3 | Chemical Resistant Oil Resistant UV Resistant | Industrial | 28 | 0.0098 in | 0.0295 in | 0.749 mm | Multi-Conductor | 80 °C | -40 C | 6.6 mm | 0.26 in |
