000-14 Series
Manufacturer: McGill Microwave Systems
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

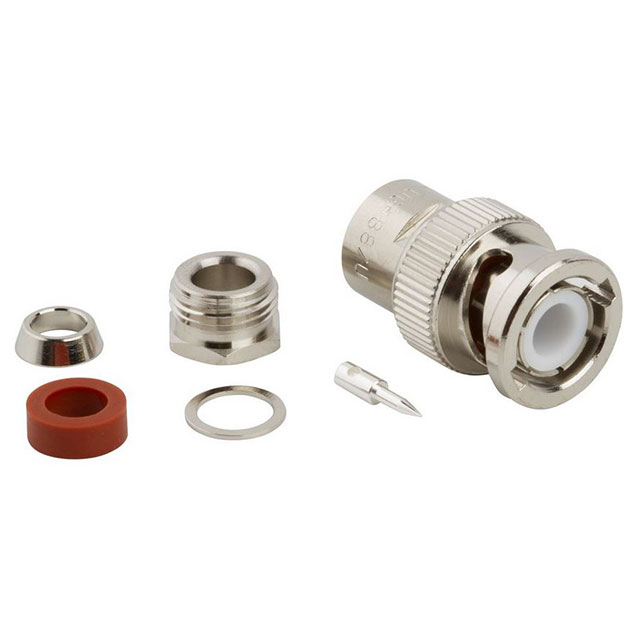

CONN RPBNC PLUG STR 50 OHM PUSH
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Voltage Rating | Insertion Loss | Dielectric Material | Body Finish | Mating Cycles | Body Material | Center Contact Plating | Cable Group | Shield Termination | Connector Style | Center Contact Material | Connector Type | Mounting Type | Housing Color | Frequency - Max | Impedance | Contact Termination | Fastening Type | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | -65 °C | 165 °C | 500 V | 0.2 dB | Tetrafluoroethylene (TFE) | Nickel | 500 cycles | Brass | Silver | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Clamp | RP-BNC | Beryllium Copper | Female Socket Plug | Free Hanging (In-Line) | Silver | 4 GHz | 50 Ohm | Push On | Bayonet Lock | 1 |
