5018 Series

Catalog

CONN BINDING POST 1 POS ST PANEL MOUNT 1 PORT

Part	Nut Material	Voltage Rating	Cross Hole Diameter	Cross Hole Diameter	Material - Insulation	Head Size [diameter]	Head Size [diameter]	Current Rating (Amps)	Termination	Head Style	Type	Material - Body	Color	Plating - Body

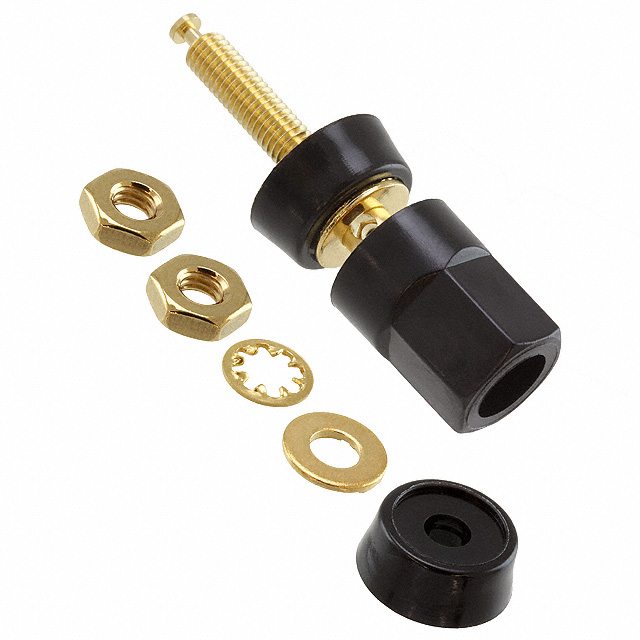

Pomona Electronics 5018-0	Steel	30 VAC 60 VDC	0.1 in	2.54 mm	Nylon Polyamide (PA)	12.19 mm	0.48 "	30 A	Threaded and Turret	Hex	Standard	Brass	Black	Gold

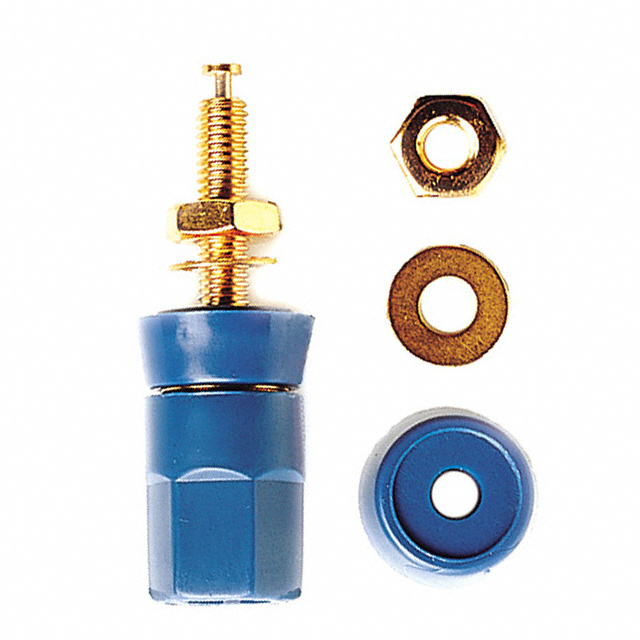

Pomona Electronics 5018-6	Steel	30 VAC 60 VDC	0.1 in	2.54 mm	Nylon Polyamide (PA)	12.19 mm	0.48 "	30 A	Threaded and Turret	Hex	Standard	Brass	Blue	Gold

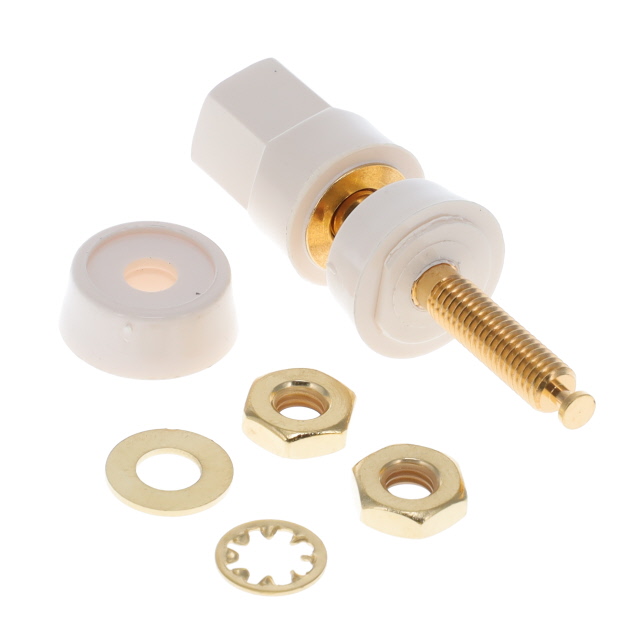

Pomona Electronics 5018-9	Steel	30 VAC 60 VDC	0.1 in	2.54 mm	Nylon Polyamide (PA)	12.19 mm	0.48 "	30 A	Threaded and Turret	Hex	Standard	Brass	White	Gold

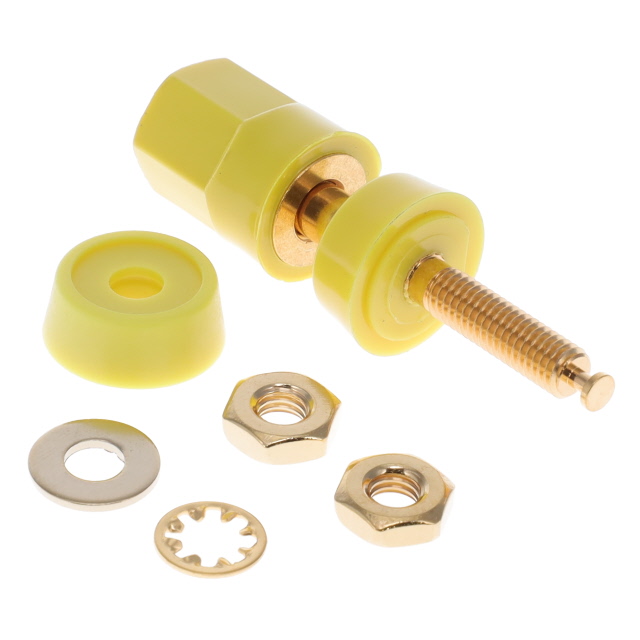

Pomona Electronics 5018-4	Steel	30 VAC 60 VDC	0.1 in	2.54 mm	Nylon Polyamide (PA)	12.19 mm	0.48 "	30 A	Threaded and Turret	Hex	Standard	Brass	Yellow	Gold

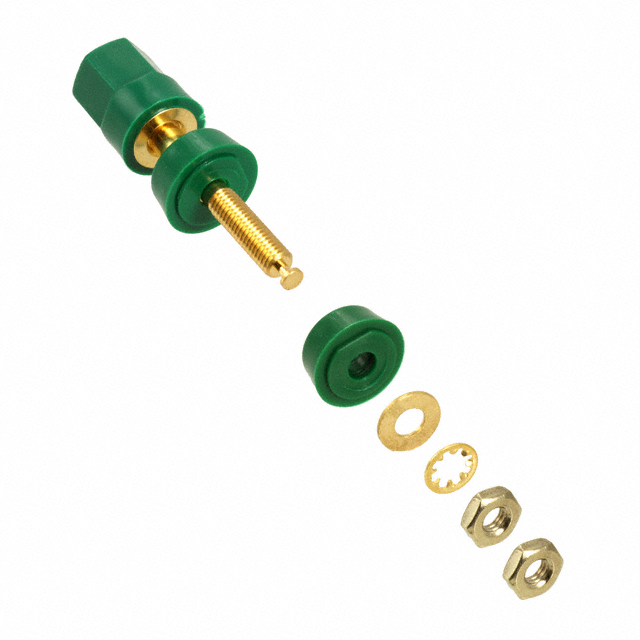

Pomona Electronics 5018-5	Steel	30 VAC 60 VDC	0.1 in	2.54 mm	Nylon Polyamide (PA)	12.19 mm	0.48 "	30 A	Threaded and Turret	Hex	Standard	Brass	Green	Gold

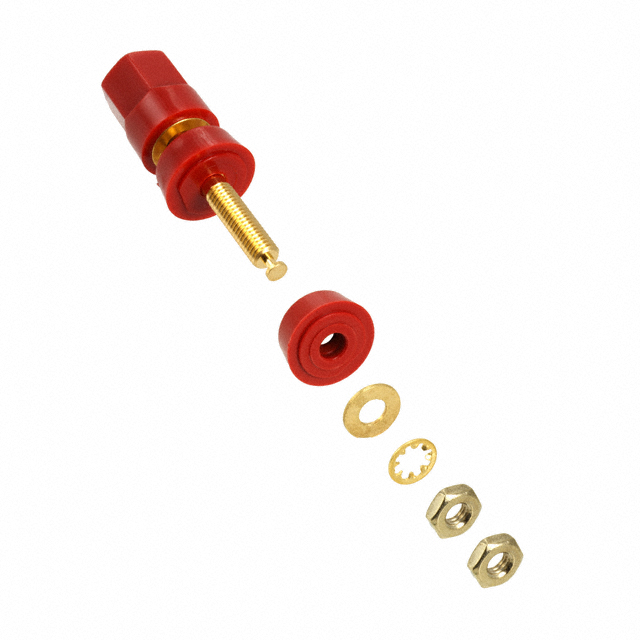

Pomona Electronics 5018-2	Steel	30 VAC 60 VDC	0.1 in	2.54 mm	Nylon Polyamide (PA)	12.19 mm	0.48 "	30 A	Threaded and Turret	Hex	Standard	Brass	Red	Gold
