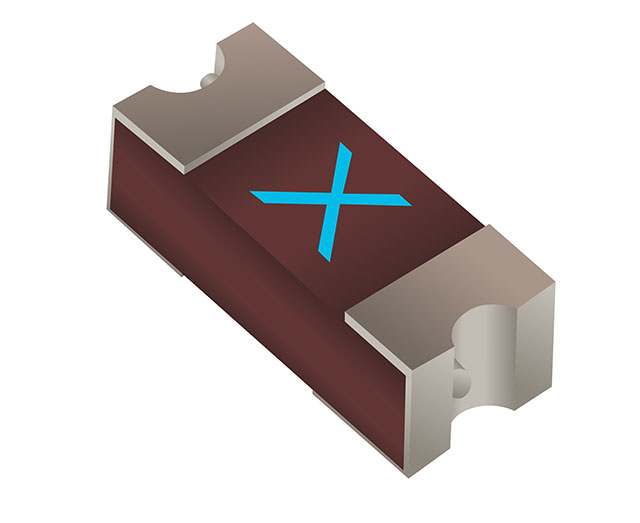

SF-2410FA-W Series
Manufacturer: Bourns Inc.
Beta
⌘K
2410 FAST-ACTING WIRE 20A AUTO /TAPE & REEL - 7" REEL ROHS COMPLIANT: YES
| Part | DC Cold Resistance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Breaking Capacity @ Rated Voltage | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Response Time | Fuse Type | Approval Agency | Voltage Rating - DC | Melting I²t | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.0029 Ohms | 0.098 in | 0.24 " | 2.49 mm | 6.1 mm | 0.085 in | 2.16 mm | 100 A | 20 A | -55 C | 125 °C | Surface Mount | Fast Blow | Board Mount (Cartridge Style Excluded) | cUL UL | 65 VDC | 126.2 | 2410 (6125 Metric) |
